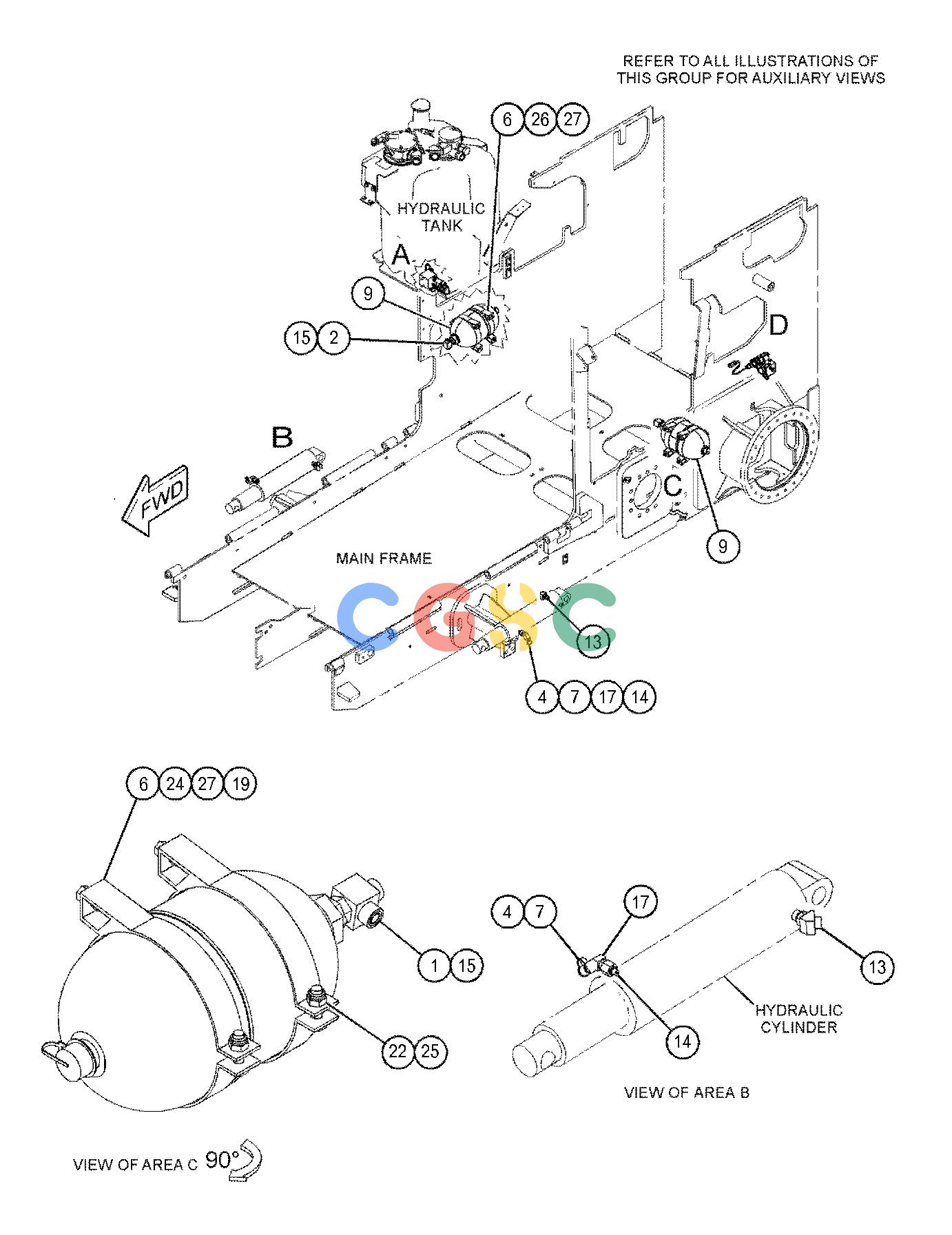

卡特零件查询（AP555F） 447-9870: VALVE & MTG GP-TRACK TENSIONER
广数供应链运营团队, 17 02月, 2025，浏览：
979 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-8428 | [1] | TEE AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8782 | [1] | TEE | |
| 2. | 148-8436 | [1] | TEE AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8775 | [1] | TEE-FACE SEAL | |
| 3. | 5R-6302 | [2] | CAP-DUST | |
| 4. | 7X-5308 | [2] | CAP-DUST | |
| 5. | 142-2763 | [2] | COUPLER AS-QUICK CONNECT | |
| 6. | 142-3061 | [4] | CLAMP AS | |
| 7. | 148-4415 | [2] | COUPLING | |
| 8. | 459-2594 | [2] | SWITCH AS-PRESSURE(TRACK TENSION) | |
| | | | (EACH INCLUDES) |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 3E-3371D | [1] | WEDGE-RECEPTACLE LOCK(3-PIN)(0.6-M) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-5677D | | SLEEVE(0.2-M) | |
| 9. | 276-5455Y | [2] | ACCUMULATOR GP-HYDRAULIC(CHARGED)(TRACK TENSIONER) | |
| 10. | 396-7168 | [2] | VALVE GP-ACCUMULATOR CHARGING | |
| | | | (EACH INCLUDES) |
| | 446-5818 | [1] | CARTRIDGE AS-VALVE | |
| | 8C-3076 | [1] | SEAL-O-RING | |
| 11. | 148-8316 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 12. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 13. | 148-8354 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 14. | 150-4047 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 8T-2353 | [1] | ADAPTER | |
| 15. | 155-7321 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-1722 | [1] | ADAPTER | |
| 16. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 17. | 165-4931 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8077 | [1] | ELBOW | |
| 18. | 1S-0994 | [2] | CLIP(LOOP) | |
| 19. | 344-5674M | [4] | NUT(M8X1.25-THD) | |
| 21. | 6V-0852 | [2] | CAP-DUST | |
| 22. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 23. | 8T-3647M | [4] | BOLT(M8X1.25X80-MM) | |
| 24. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 25. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 26. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 27. | 8T-4224 | [16] | WASHER-HARD(8.8X16X2-MM THK) | |
| 28. | 241-6215 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8076 | [1] | ELBOW | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
