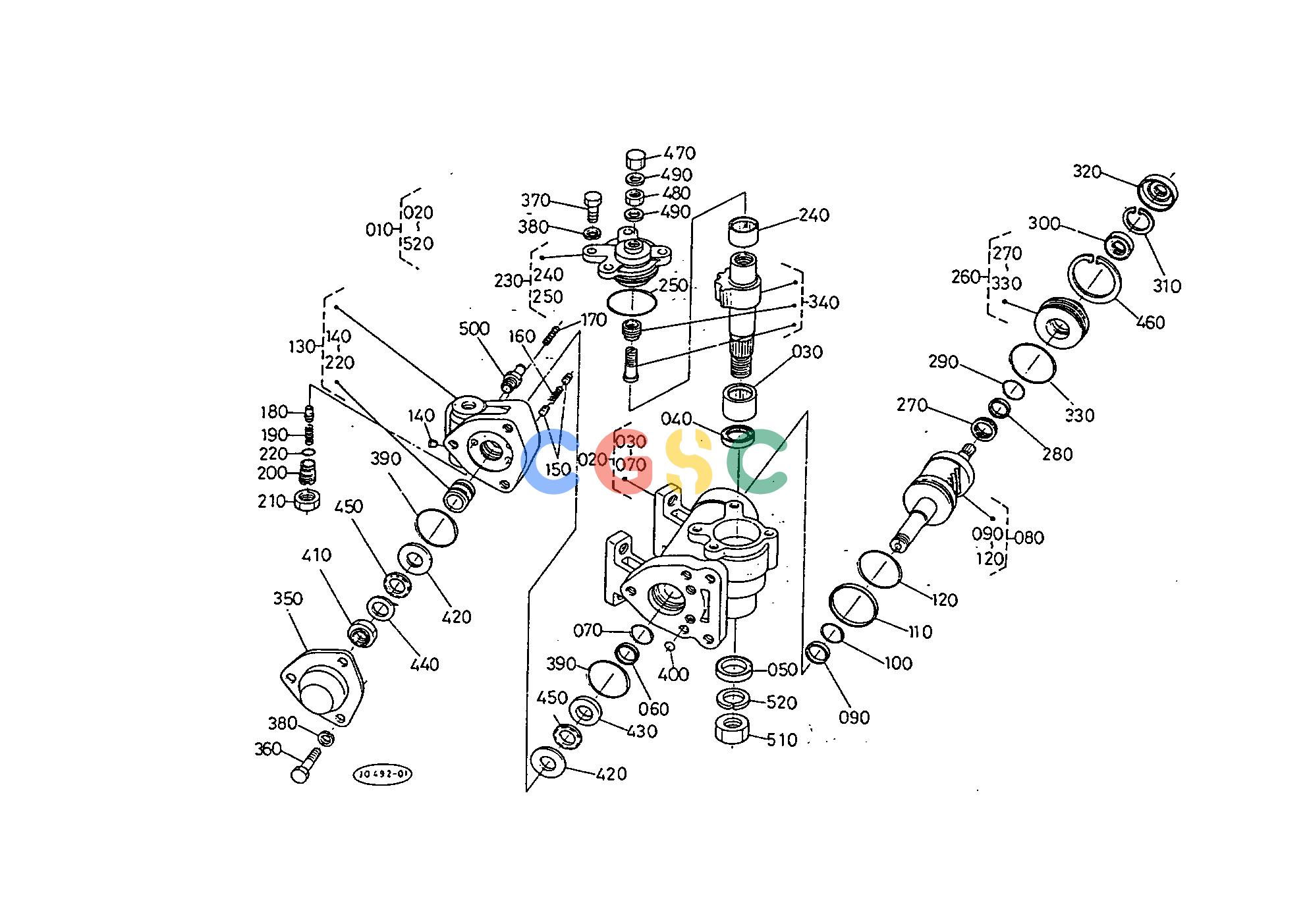

久保田零件查询T08801 STEERING (OLD TYPE) [COMPONENT PARTS] ## S.No.;<=80188 STEERINGEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
274 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3040066100
|
[1] |
ASSY STEERING POWER
|
28.3800(lbs); 12.900
|
| 020. |
3135166110
|
[1] |
ASSY BOX GEAR
|
11.0000(lbs); 5.000
|
| 030. |
3135166130
|
[1] |
BEARING NEEDLE
|
0.0660(lbs); 0.030
|
| 040. |
3527016140
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 050. |
3527016150
|
[1] |
SEAL OIL
|
0.0330(lbs); 0.015
|
| 060. |
3527016160
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 070. |
0481110300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
3040066200
|
[1] |
ASSY NUT BALL
|
5.2800(lbs); 2.400
|
| 090. |
3527016160
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 100. |
0481110300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
3135166280
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 120. |
0481150550
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 130. |
3040066300
|
[1] |
ASSY VALVE
|
4.0700(lbs); 1.850
|
| 140. |
3843066790
|
[2] |
PLUG
|
0.0066(lbs); 0.003
|
| 150. |
3843066330
|
[4] |
PISTON
|
0.0110(lbs); 0.005
|
| 160. |
3843066350
|
[2] |
SPRING
|
0.0066(lbs); 0.003
|
| 170. |
3040066340
|
[2] |
SPRING
|
0.0220(lbs); 0.010
|
| 180. |
3135166360
|
[1] |
POPPET
|
0.0110(lbs); 0.005
|
| 190. |
3843066380
|
[1] |
SPRING
|
0.0330(lbs); 0.015
|
| 200. |
3135166370
|
[1] |
SCREW ADJUSTING
|
0.1034(lbs); 0.047
|
| 210. |
3135166380
|
[1] |
NUT
|
0.0484(lbs); 0.022
|
| 220. |
3135166390
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 230. |
3527016400
|
[1] |
ASSY COVER SIDE
|
1.6500(lbs); 0.750
|
| 240. |
3527016420
|
[1] |
BEARING NEEDLE
|
0.0990(lbs); 0.045
|
| 250. |
0481150600
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 260. |
3135166500
|
[1] |
ASSY COVER TOP
|
0.6600(lbs); 0.300
|
| 270. |
3527016320
|
[1] |
BEARING NEEDLE
|
0.0440(lbs); 0.020
|
| 280. |
3527016160
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 290. |
0481110300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 300. |
3135166530
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 310. |
0461100320
|
[1] |
CIR-CLIP INTERNAL
|
0.0044(lbs); 0.002
|
| 320. |
3135166540
|
[1] |
SEAL DUST
|
0.0440(lbs); 0.020
|
| 330. |
3527016340
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 340. |
3135166600
|
[1] |
ASSY SHAFT SECTOR
|
2.4310(lbs); 1.105
|
| 350. |
3135166710
|
[1] |
COVER END
|
0.5060(lbs); 0.230
|
| 360. |
3135166720
|
[3] |
BOLT
|
0.0880(lbs); 0.040
|
| 370. |
3527016650
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 380. |
0451250100
|
[7] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 390. |
0481110700
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 400. |
0481100080
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 410. |
3843066650
|
[1] |
NUT
|
0.1430(lbs); 0.065
|
| 420. |
3843066630
|
[2] |
RING DRIVE
|
0.1320(lbs); 0.060
|
| 430. |
3843066610
|
[1] |
RING DRIVE
|
0.1100(lbs); 0.050
|
| 440. |
3527016660
|
[1] |
RING DRIVE
|
0.0220(lbs); 0.010
|
| 450. |
3843066640
|
[2] |
BEARING NEEDLE
|
0.0220(lbs); 0.010
|
| 460. |
0461100630
|
[1] |
CIR-CLIP INTERNAL
|
0.0264(lbs); 0.012
|
| 470. |
3527016700
|
[1] |
NUT CAP
|
0.2420(lbs); 0.110
|
| 480. |
3527016670
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 490. |
3527016690
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 500. |
3135166730
|
[1] |
CONNECTOR
|
0.0220(lbs); 0.010
|
| 510. |
0207650220
|
[1] |
NUT
|
0.1540(lbs); 0.070
|
| 520. |
0451250220
|
[1] |
WASHER SPRING
|
0.0550(lbs); 0.025
|
