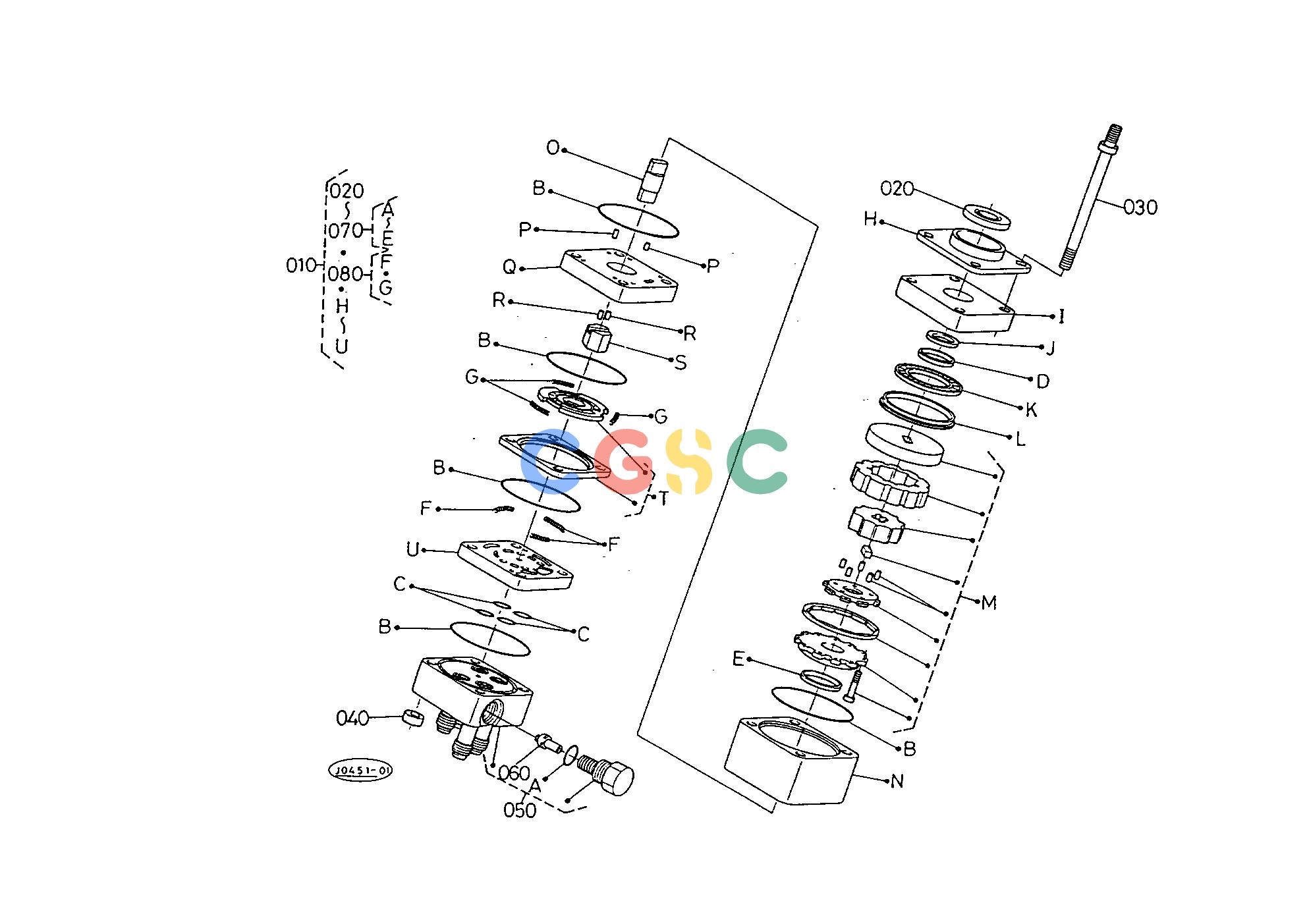

久保田零件查询T08802 STEERING CONTROLLER [COMPONENT PARTS] ## S.No.;>=80189 STEERINGEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
126 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3508040500
|
[1] |
CONTROLLER STEERING
|
10.2300(lbs); 4.650
|
| 020. |
3508040530
|
[1] |
SEAL DUST
|
0.0220(lbs); 0.010
|
| 030. |
3508040540
|
[4] |
BOLT
|
0.1320(lbs); 0.060
|
| 040. |
3508040910
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 050. |
3508040940
|
[1] |
ASSY PLATE
|
2.5960(lbs); 1.180
|
| 060. |
3508040870
|
[1] |
COMP.VALVE
|
0.0396(lbs); 0.018
|
| 070. |
3508040950
|
[1] |
KIT SEAL
|
0.0220(lbs); 0.010
|
| 080. |
3508040960
|
[1] |
KIT SPRING
|
0.0044(lbs); 0.002
|
