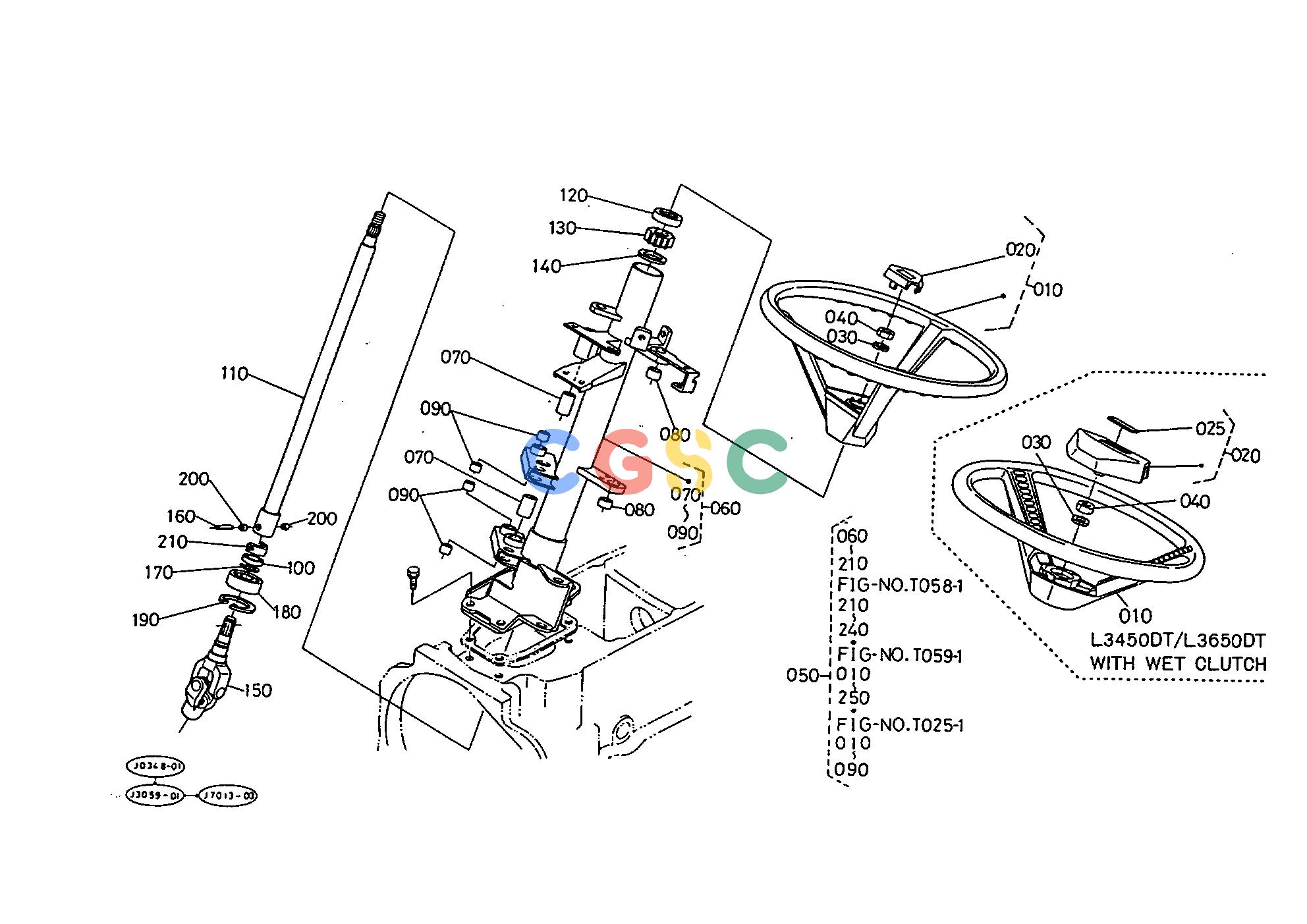

久保田零件查询T09401 STEERING HANDLE STEERINGEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
509 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135116063
|
[1] |
ASSY WHEEL STEERING
|
5.2800(lbs); 2.400
|
| 020. |
3135116082
|
[1] |
PAD STEERING
|
0.1540(lbs); 0.070
|
| 030. |
0451250120
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 040. |
0217650120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 050. |
3508016800
|
[1] |
ASSY POST STEERING
|
34.1000(lbs); 15.500
|
| 060. |
3508016810
|
[1] |
COMP.POST STEERING
|
8.3600(lbs); 3.800
|
| 070. |
0851101625
|
[2] |
BUSH
|
0.0220(lbs); 0.010
|
| 080. |
0851101610
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 090. |
0851101210
|
[4] |
BUSH
|
0.0110(lbs); 0.005
|
| 100. |
0940015377
|
[1] |
SEAL OIL
|
0.0264(lbs); 0.012
|
| 110. |
3242016915
|
[1] |
SHAFT STEERING
|
2.0900(lbs); 0.950
|
| 120. |
3040016920
|
[1] |
SEAL OIL
|
0.0330(lbs); 0.015
|
| 130. |
3040016930
|
[1] |
BUSH STEERING POST
|
0.0330(lbs); 0.015
|
| 140. |
3135116940
|
[1] |
WASHER
|
0.0154(lbs); 0.007
|
| 150. |
3135116960
|
[1] |
SHAFT STEERING
|
0.8690(lbs); 0.395
|
| 160. |
0541100425
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 170. |
0461200150
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 180. |
0814106302
|
[1] |
BEARING BALL
|
0.1826(lbs); 0.083
|
| 190. |
0461100420
|
[1] |
CIR-CLIP INTERNAL
|
0.0132(lbs); 0.006
|
| 200. |
3040016970
|
[2] |
CUSHION
|
0.0022(lbs); 0.001
|
| 210. |
3040016980
|
[2] |
SPRING SET
|
0.0880(lbs); 0.040
|
