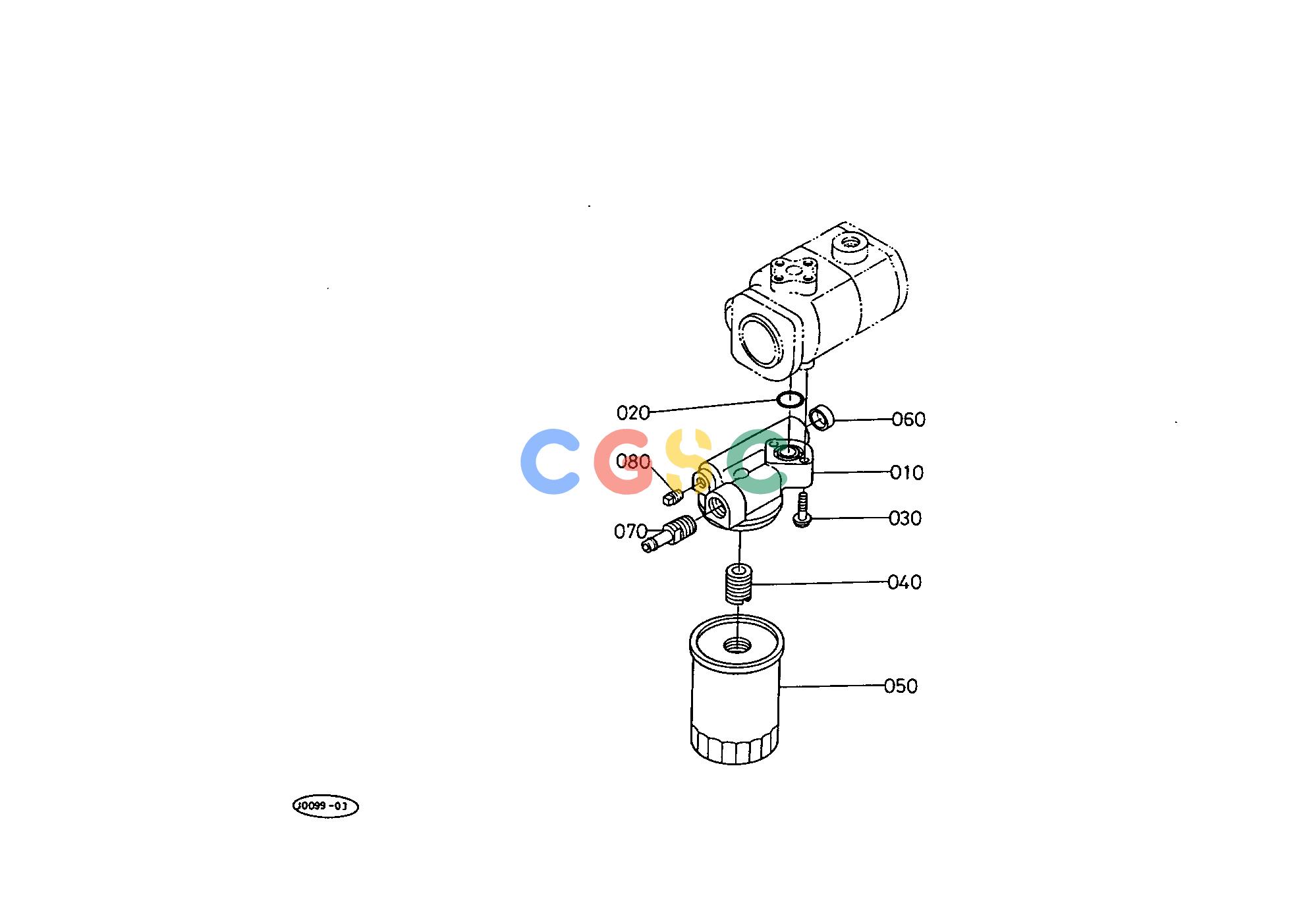

久保田零件查询T09801 HYDRAULIC OIL FILTER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
207 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135138710
|
[1] |
BRACKET FILTER
|
0.8800(lbs); 0.400
|
| 020. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0175450840
|
[2] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
| 040. |
3824037780
|
[1] |
JOINT SCREW
|
0.0660(lbs); 0.030
|
| 050. |
3040037710
|
[1] |
CARTRIDGE OIL FILTER
|
0.8800(lbs); 0.400
|
| 060. |
3135138720
|
[1] |
COVER BLIND
|
0.0022(lbs); 0.001
|
| 070. |
3135145360
|
[1] |
PLUG
|
0.1210(lbs); 0.055
|
| 080. |
0631210010
|
[2] |
PLUG
|
0.0154(lbs); 0.007
|
