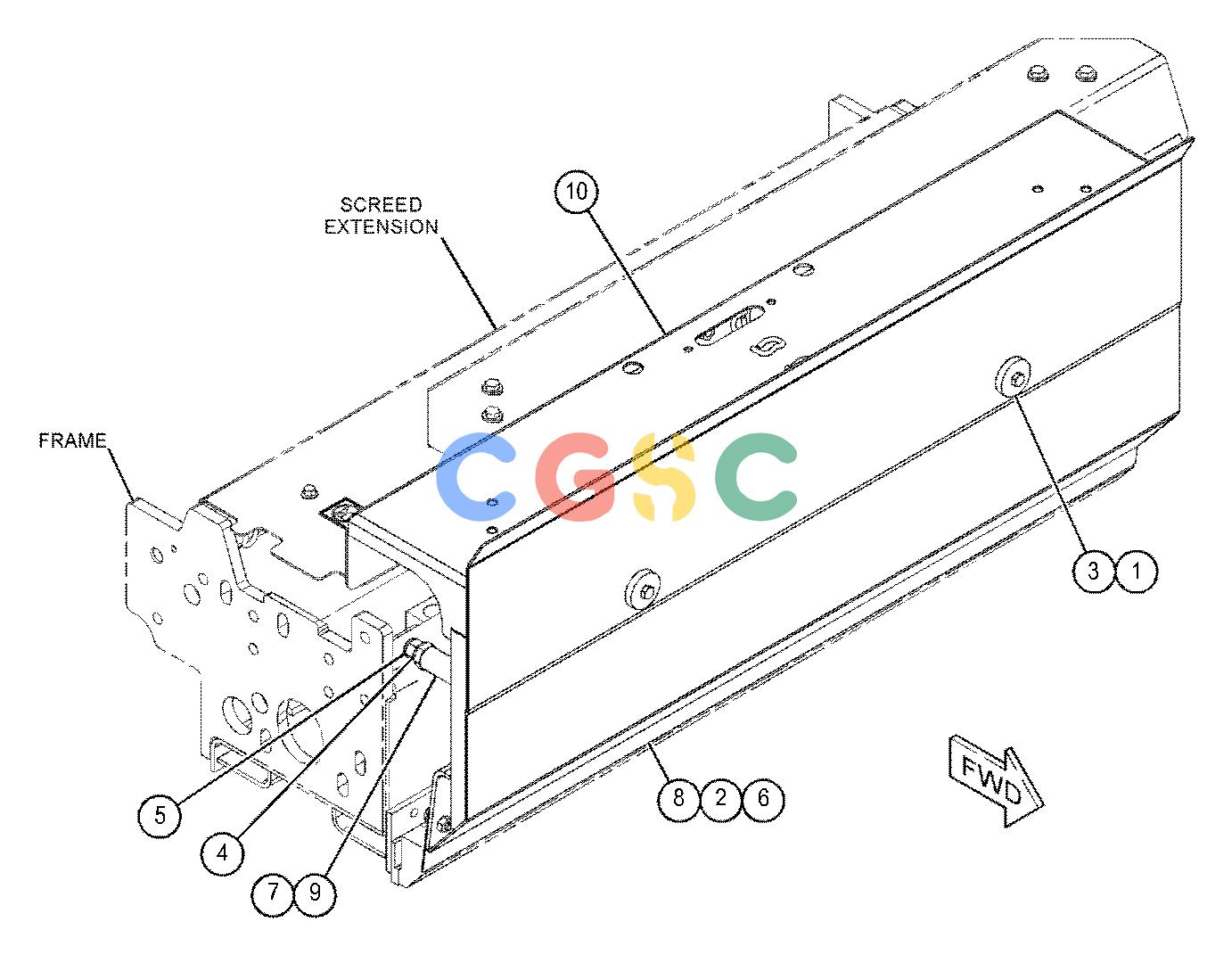

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8T-4182M | [2] | BOLT(M10X1.5X45-MM) | |
| 2. | 8T-4195M | [6] | BOLT(M10X1.5X30-MM) | |
| 3. | 1B-1067 | [2] | WASHER(13.5X50.8X11.1-MM THK) | |
| 4. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| 5. | 176-5311M | [2] | LOCKNUT(M16X2-THD) | |
| 6. | 198-4777 | [6] | WASHER-HARD(11X25X10-MM THK) | |
| 7. | 370-3808 | [2] | ROD AS-PULL | |
| 8. | 393-0670 | [1] | BLADE | |
| 9. | 422-4637M | [2] | NUT(M30X2-THD) | |
| 10. | 470-6459 | [1] | DEFLECTOR AS | |
| 8T-3490M | [13] | NUT-WELD(M10X1.5-THD) | ||
| M | METRIC PART | |||
