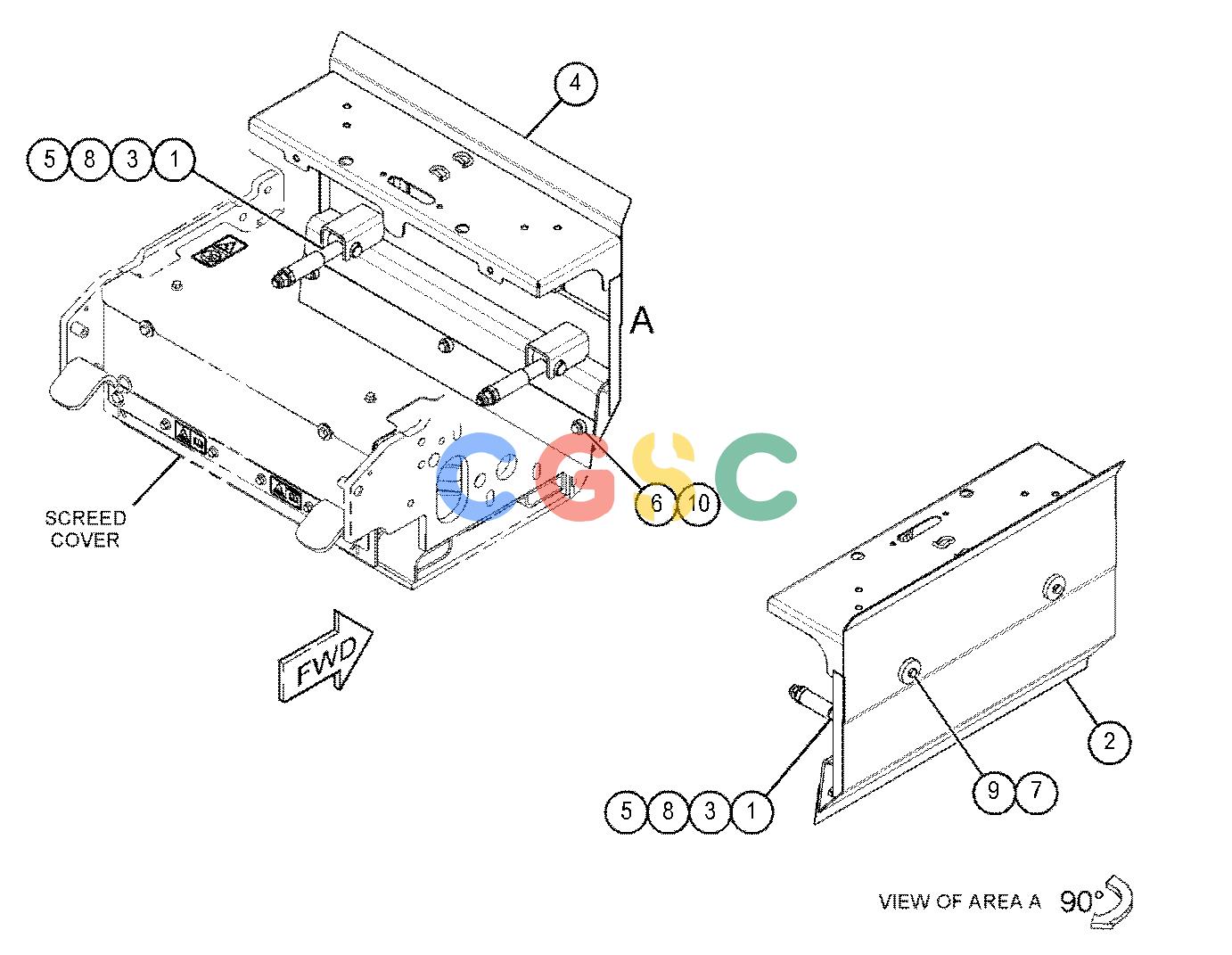

卡特零件查询（AP555F） 471-6425: DEFLECTOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
541 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 370-3808 | [2] | ROD AS-PULL | |
| 2. | 393-0664 | [1] | BLADE | |
| 3. | 422-4637M | [2] | NUT(M30X2-THD) | |
| 4. | 471-6426 | [1] | DEFLECTOR AS | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3490M | [9] | NUT-WELD(M10X1.5-THD) | |
| 5. | 176-5311M | [2] | LOCKNUT(M16X2-THD) | |
| 6. | 198-4777 | [3] | WASHER-HARD(11X25X10-MM THK) | |
| 7. | 1B-1067 | [2] | WASHER(13.5X50.8X11.1-MM THK) | |
| 8. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| 9. | 8T-4182M | [2] | BOLT(M10X1.5X45-MM) | |
| 10. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
