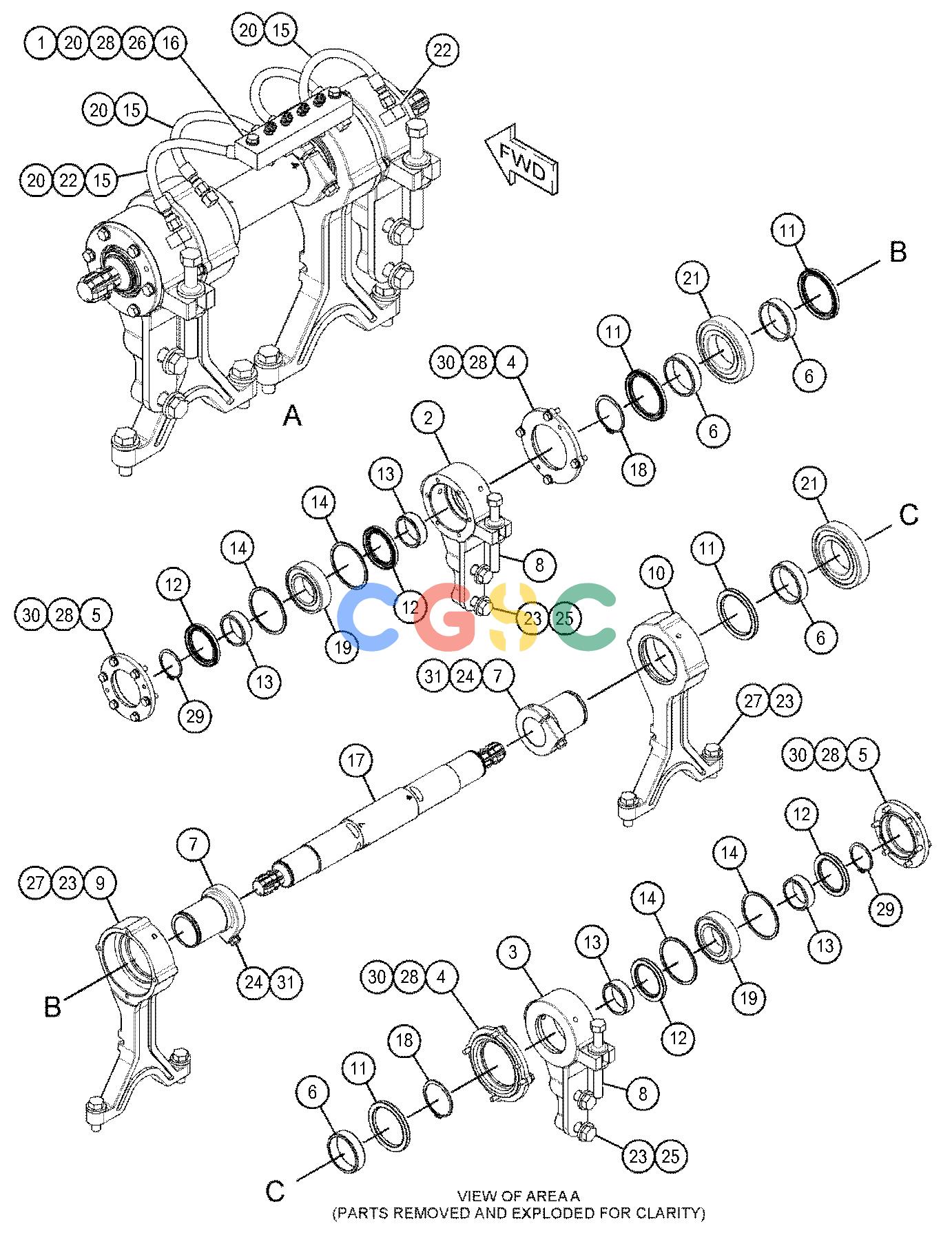

卡特零件查询（AP600F） 471-7832: TAMPER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
125 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8485 | [4] | ELBOW | |
| 2. | 392-6332 | [1] | SUPPORT(LH) | |
| 3. | 392-6333 | [1] | SUPPORT(RH) | |
| 4. | 392-6335 | [2] | COVER | |
| 5. | 392-6336 | [2] | COVER | |
| 6. | 392-6337 | [4] | SPACER(65X75X20-MM THK) | |
| 7. | 392-6338 | [2] | ADJUSTER | |
| 8. | 394-7239 | [2] | ADJUSTER | |
| 9. | 399-3849 | [1] | SUPPORT | |
| 10. | 399-3850 | [1] | SUPPORT | |
| 11. | 415-1070 | [4] | SEAL-LIP TYPE | |
| 12. | 416-2578 | [4] | SEAL-LIP TYPE | |
| 13. | 418-1392 | [4] | SPACER(50X60X20-MM THK) | |
| 14. | 419-5668 | [4] | SPACER(80X90X4-MM THK) | |
| 15. | 425-2208I | [4] | HOSE AS | |
| 16. | 471-2031 | [1] | BLOCK | |
| 17. | 471-7048 | [1] | SHAFT | |
| 18. | 095-0929 | [2] | RING-RETAINING | |
| 19. | 244-2296 | [2] | BALL BEARING | |
| 20. | 2D-1683 | [6] | FITTING(1/8-27 PTF) | |
| 21. | 420-4956 | [2] | BALL BEARING | |
| 22. | 4M-8973 | [2] | ELBOW | |
| 23. | 7X-0515 | [8] | WASHER-HARD(17X35X5-MM THK) | |
| 24. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 8T-4140M | [4] | BOLT(M16X2X60-MM) | |
| 26. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 27. | 8T-4193M | [4] | BOLT(M16X2X50-MM) | |
| 28. | 8T-4224 | [22] | WASHER-HARD(8.8X16X2-MM THK) | |
| 29. | 8T-4241 | [2] | RING-RETAINING | |
| 30. | 8T-4908M | [20] | BOLT(M8X1.25X25-MM) | |
| 31. | 8T-4172M | [2] | BOLT(M10X1.5X80-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
