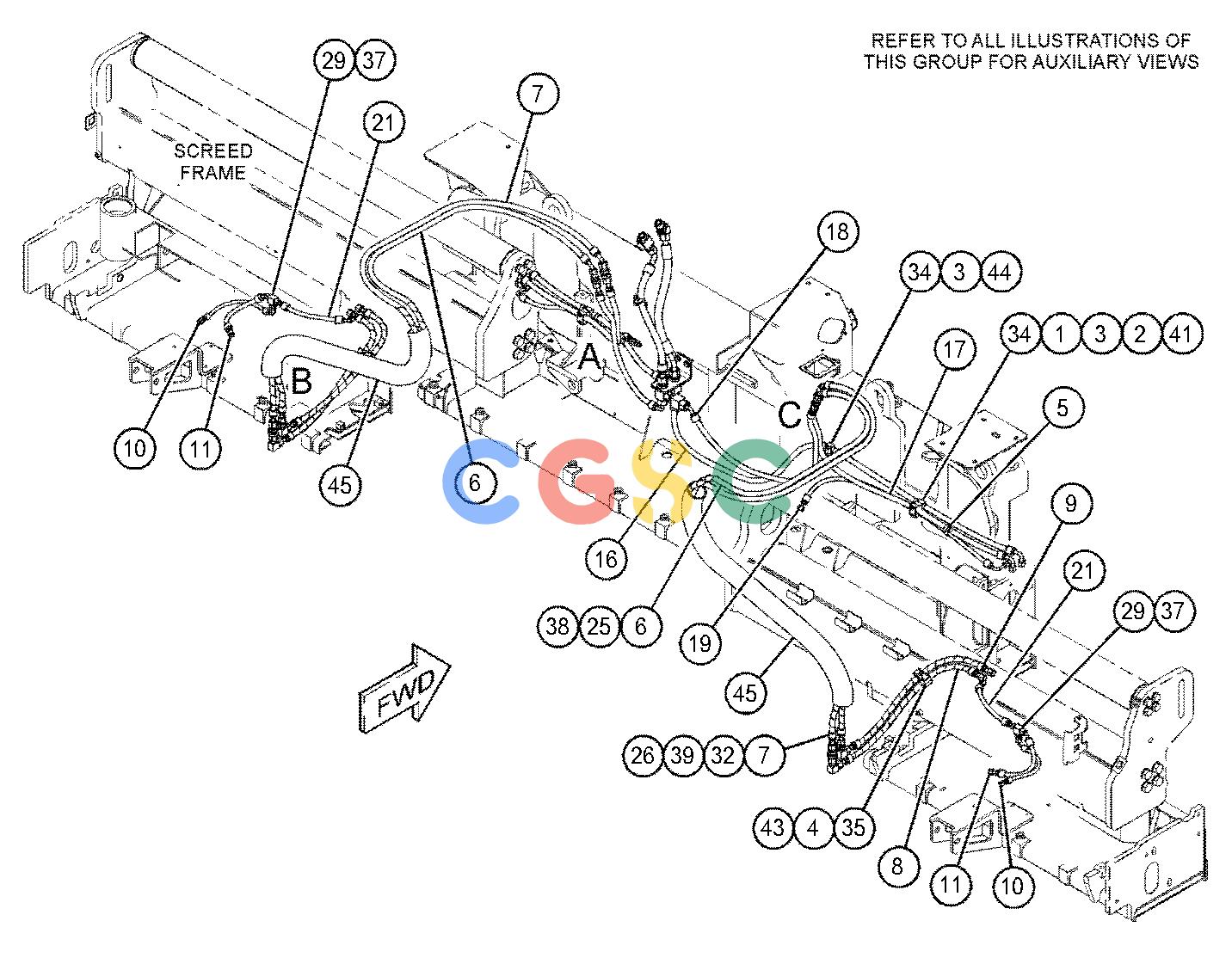

卡特零件查询（AP600F） 390-4931: LINES GP-TAMPER
广数供应链运营团队, 17 02月, 2025，浏览：
359 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 196-4205M | [4] | BOLT-STACKING(M6X1X44-MM) | |
| 2. | 7R-7954 | [2] | PLATE | |
| 3. | 7V-5628 | [3] | PLATE(TOP) | |
| 4. | 4V-0612 | [2] | PLATE | |
| 5. | 177-2215 | [5] | STRAP-DUAL CLAMP | |
| 6. | 416-4818I | [2] | HOSE AS | |
| 7. | 416-4819I | [2] | HOSE AS | |
| 8. | 416-4823I | [2] | HOSE AS | |
| 9. | 416-4824I | [2] | HOSE AS | |
| 10. | 416-4833I | [2] | HOSE AS | |
| 11. | 416-4834I | [2] | HOSE AS | |
| 12. | 417-0626 | [1] | PLATE | |
| 13. | 423-8956I | [1] | HOSE AS | |
| 14. | 423-8957I | [1] | HOSE AS | |
| 15. | 423-8958I | [1] | HOSE AS | |
| 16. | 423-8959I | [1] | HOSE AS | |
| 17. | 423-8960I | [1] | HOSE AS | |
| 18. | 423-8961I | [1] | HOSE AS | |
| 19. | 423-8962I | [1] | HOSE AS | |
| 20. | 448-6989I | [1] | HOSE AS | |
| 21. | 448-6990I | [2] | HOSE AS | |
| 22. | 450-6577I | [1] | HOSE AS | |
| 23. | 450-6578I | [1] | HOSE AS | |
| 24. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 25. | 148-8375 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 26. | 148-8393 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9852 | [1] | ELBOW(SWIVEL) | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 27. | 148-8449 | [1] | TEE AS-SWIVEL | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 6V-9839 | [1] | TEE-SWIVEL | |
| 28. | 148-8457 | [2] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 29. | 150-4034 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 8T-0379 | [1] | TEE-BULKHEAD | |
| 30. | 164-6862 | [3] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-9160 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [3] | SEAL-O-RING | |
| 31. | 165-4933 | [1] | ELBOW AS | |
| | 6V-8990 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 32. | 169-7409 | [4] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8996 | [1] | UNION | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 33. | 204-2281 | [2] | STRAP-CABLE | |
| 34. | 204-7486 | [10] | CLAMP-HALF | |
| 35. | 222-9820 | [4] | CLAMP-HALF | |
| 36. | 2P-1293 | [4] | LOCKNUT(1-3/16-12-THD) | |
| 37. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 38. | 6V-9169 | [4] | NUT(13/16-16-THD) | |
| 39. | 6V-9170 | [4] | NUT-BULKHEAD(1-14-THD) | |
| 40. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 41. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 42. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 43. | 8T-6912M | [2] | BOLT(M8X1.25X50-MM) | |
| 44. | 9X-2480M | [2] | BOLT(M6X1X45-MM) | |
| 45. | 206-2727E | | GUARD-HOSE(118-CM EACH) | |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
