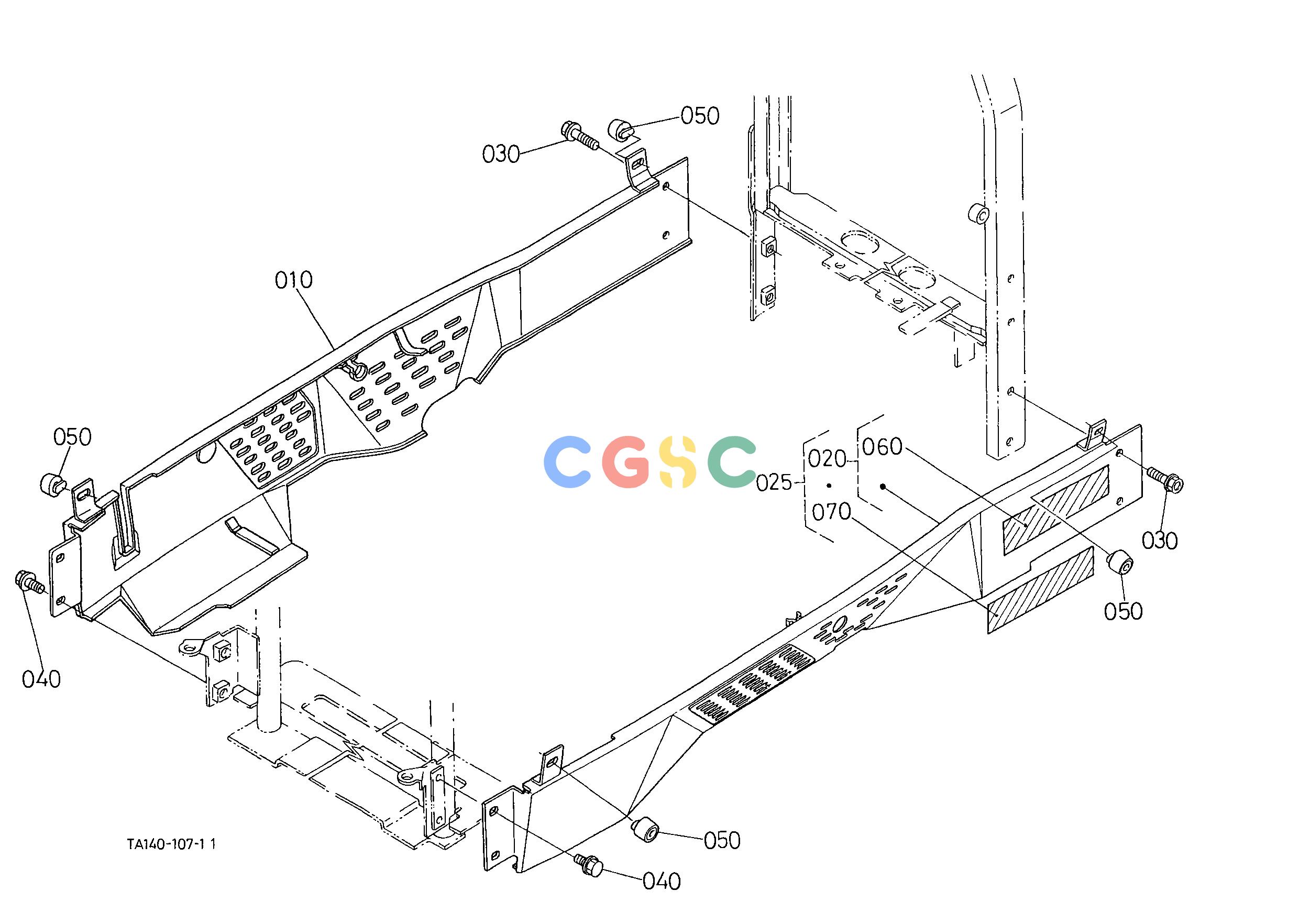

久保田零件查询L11501 SIDE COVER LOWER [ROPS TYPE] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
207 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA14041360
|
[1] |
COVER RH
|
4.8400(lbs); 2.200
|
| 010. |
TA15041360
|
[1] |
COVER RH
|
4.8400(lbs); 2.200
|
| 020. |
TA14099560
|
[1] |
KIT COVER LH(A)
|
6.6000(lbs); 3.000
|
| 025. |
TA14199560
|
[1] |
KIT COVER LH(B)
|
4.8400(lbs); 2.200
|
| 030. |
3407041130
|
[4] |
BOLT FLANGE
|
0.0330(lbs); 0.015
|
| 040. |
0175450816
|
[4] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 050. |
3040017980
|
[4] |
RUBBER BLOCK
|
0.0220(lbs); 0.010
|
| 060. |
TA04049650
|
[1] |
LABEL START CAUTION
|
0.0088(lbs); 0.004
|
| 070. |
TA04149650
|
[1] |
LABEL START CAUTION
|
0.0088(lbs); 0.004
|
