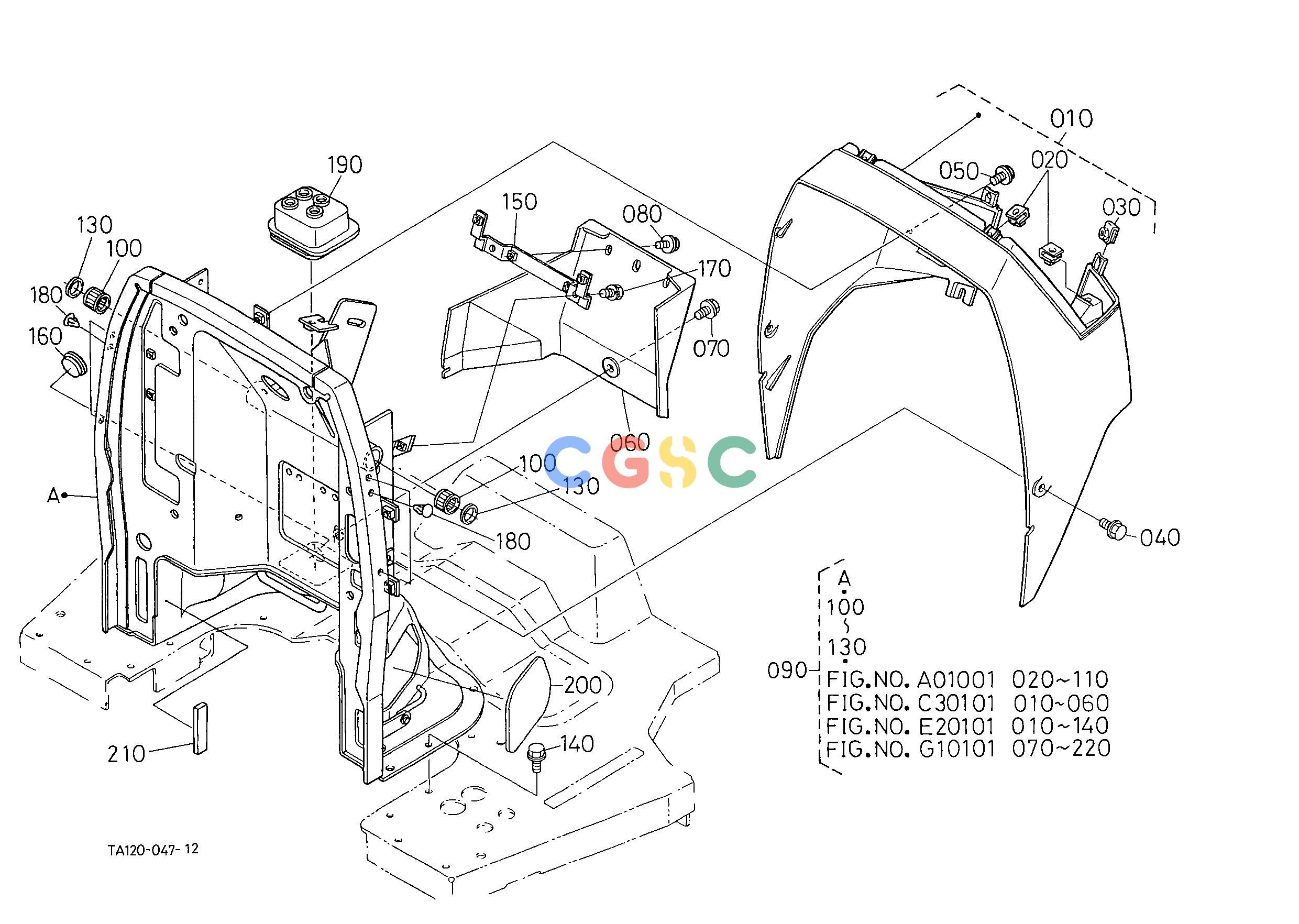

久保田零件查询L20101 PANEL FRAME [EXCEPT HST TYPE] [ROPS TYPE] ## [EXCEPTE TYPE CABINE] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
204 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3407043010
|
[1] |
BONNET
|
4.4000(lbs); 2.000
|
| 020. |
3407099160
|
[4] |
NUT SPRING
|
0.0110(lbs); 0.005
|
| 030. |
3741054930
|
[2] |
NUT SPRING
|
0.0550(lbs); 0.025
|
| 040. |
3040018870
|
[5] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 050. |
0175450816
|
[1] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 060. |
3407043032
|
[1] |
COVER PANEL UNDER
|
0.5940(lbs); 0.270
|
| 070. |
3040018870
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 080. |
3040019060
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 090. |
TA14043200
|
[1] |
ASSY FRAME PANEL
|
52.8000(lbs); 24.000
|
| 100. |
3407044360
|
[2] |
BEARING NEEDLE
|
0.0220(lbs); 0.010
|
| 130. |
3407044140
|
[2] |
SEAL OIL
|
0.0110(lbs); 0.005
|
| 140. |
0175450812
|
[8] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 150. |
3455043240
|
[1] |
BRACKET PANEL COVER
|
0.2970(lbs); 0.135
|
| 160. |
3588004570
|
[1] |
CAP
|
0.0110(lbs); 0.005
|
| 170. |
0112360816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 180. |
3824029570
|
[6] |
PLUG
|
0.0022(lbs); 0.001
|
| 190. |
3455043335
|
[1] |
GROMMET
|
0.1320(lbs); 0.060
|
| 200. |
3407043280
|
[1] |
COVER PANEL FRAME
|
0.2640(lbs); 0.120
|
| 210. |
TA14033590
|
[1] |
CUSHION P/STRG HOSE
|
0.2750(lbs); 0.125
|
