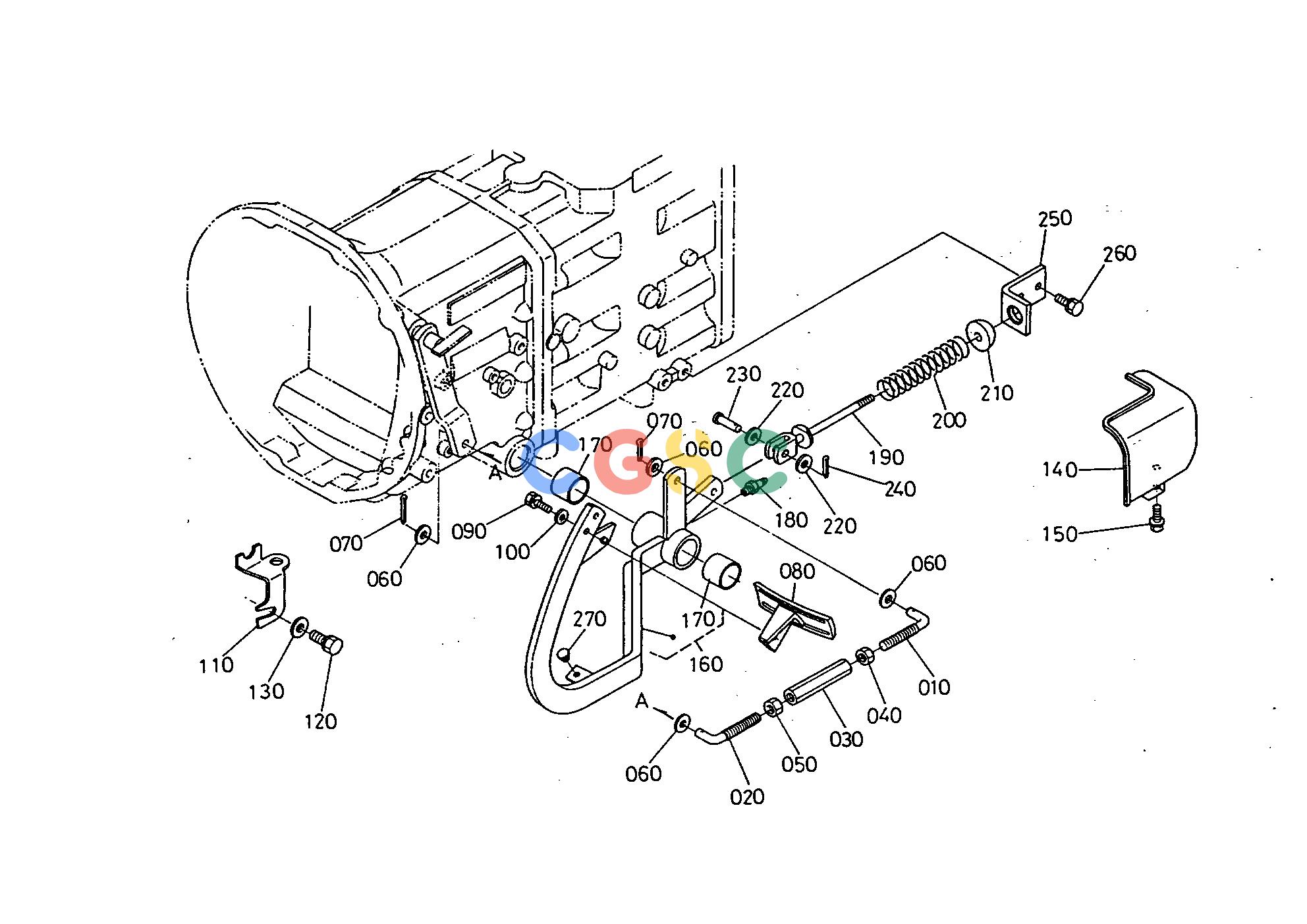

久保田零件查询T01100 CLUTCH PEDAL (DUAL CLUTCH) CLUTCHEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
227 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253015640
|
[1] |
ROD CLUTCH
|
0.0000(lbs); 0.000
|
| 020. |
3253015650
|
[1] |
ROD CLUTCH
|
0.0000(lbs); 0.000
|
| 030. |
3772028980
|
[1] |
TURNBUCKLE
|
0.2178(lbs); 0.099
|
| 040. |
3772028990
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 050. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 060. |
0401350120
|
[4] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 070. |
0551150422
|
[2] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 080. |
3633026150
|
[1] |
HEEL PEDAL
|
1.5620(lbs); 0.710
|
| 090. |
0112350825
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 100. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 110. |
3253032250
|
[1] |
BRACKET SWITCH
|
0.0000(lbs); 0.000
|
| 120. |
0113351020
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 130. |
0401550100
|
[1] |
WASHER PLAIN
|
0.0396(lbs); 0.018
|
| 140. |
3253032260
|
[1] |
COVER
|
0.4840(lbs); 0.220
|
| 150. |
0175450816
|
[2] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 160. |
3253015720
|
[1] |
ARM CLUTCH PEDAL
|
7.0400(lbs); 3.200
|
| 170. |
3215028440
|
[2] |
BUSH
|
0.0946(lbs); 0.043
|
| 180. |
0661310010
|
[1] |
NIPPLE GREASE
|
0.0132(lbs); 0.006
|
| 190. |
3253015760
|
[1] |
CLIP
|
0.0000(lbs); 0.000
|
| 200. |
3843015770
|
[1] |
SPRING
|
0.1540(lbs); 0.070
|
| 210. |
3843015780
|
[1] |
COLLAR
|
0.1430(lbs); 0.065
|
| 220. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 230. |
3843015790
|
[1] |
PIN JOINT
|
0.0440(lbs); 0.020
|
| 240. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 250. |
3253015750
|
[1] |
STAY
|
0.3960(lbs); 0.180
|
| 260. |
0113351022
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 270. |
3824029870
|
[1] |
CUSHION
|
0.0088(lbs); 0.004
|
