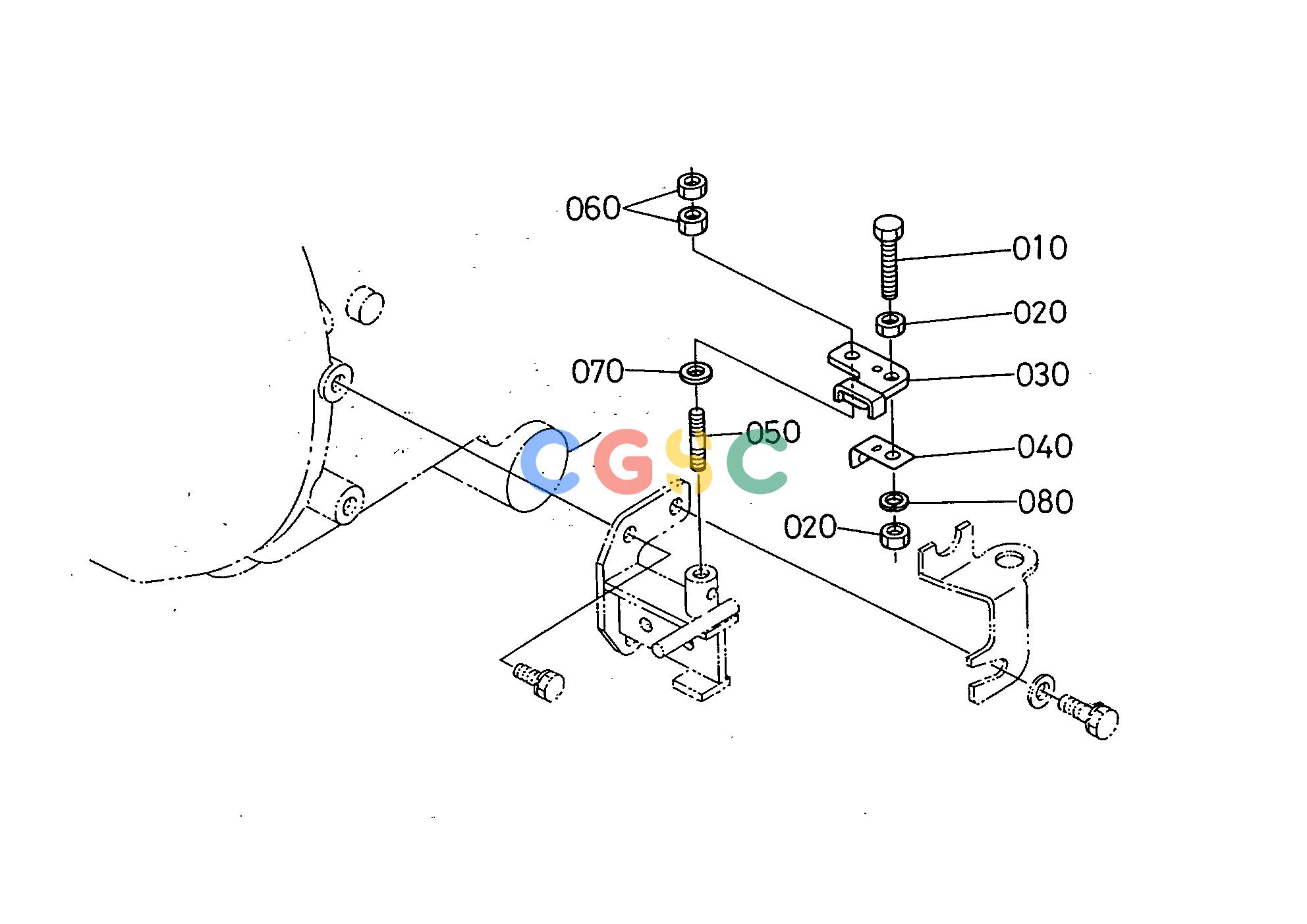

久保田零件查询T01300 CLUTCH PEDAL STOPPER (DUAL CLUTCH) CLUTCHEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
740 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253015830
|
[1] |
BOLT STOPPER
|
0.0990(lbs); 0.045
|
| 020. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 030. |
3253015810
|
[1] |
STOPPER PEDAL
|
0.2420(lbs); 0.110
|
| 040. |
3253015870
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 050. |
0151751030
|
[1] |
STUD
|
0.0528(lbs); 0.024
|
| 060. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 080. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
