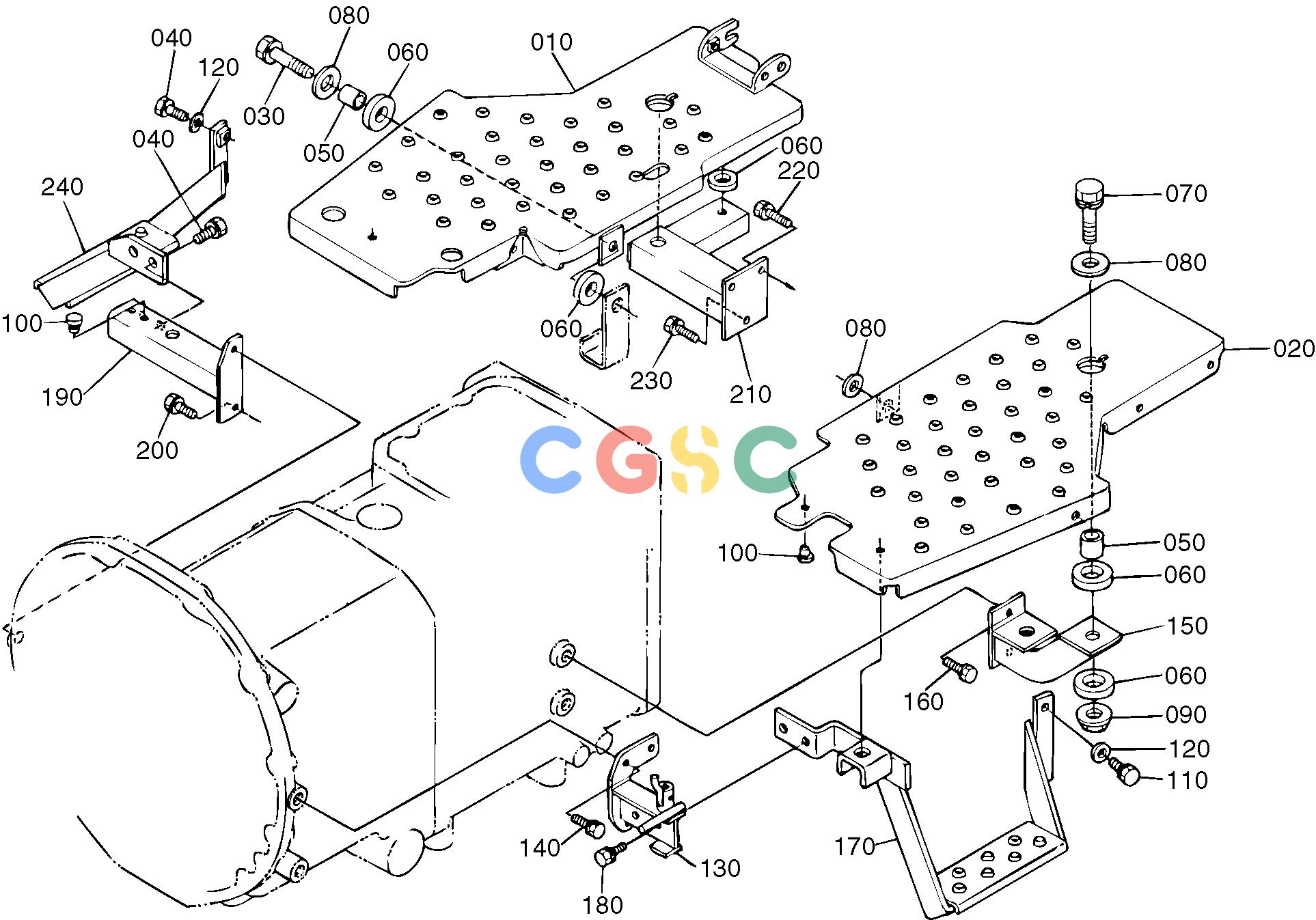

久保田零件查询T05700 STEP CHASSISEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
432 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253029910
|
[1] |
COMP.STEP RH
|
0.0000(lbs); 0.000
|
| 010. |
3253029610
|
[1] |
COMP.STEP RH
|
9.4600(lbs); 4.300
|
| 020. |
3253029920
|
[1] |
COMP.STEP LH
|
7.9200(lbs); 3.600
|
| 020. |
3253029925
|
[1] |
COMP.STEP LH
|
0.0000(lbs); 0.000
|
| 020. |
3253029624
|
[1] |
COMP.STEP LH
|
7.7000(lbs); 3.500
|
| 030. |
0113351040
|
[2] |
BOLT
|
0.0660(lbs); 0.030
|
| 040. |
0113351030
|
[3] |
BOLT
|
0.0550(lbs); 0.025
|
| 050. |
3253029940
|
[6] |
SPACER
|
0.0220(lbs); 0.010
|
| 060. |
3824018640
|
[13] |
CUSHION
|
0.0220(lbs); 0.010
|
| 070. |
0113351045
|
[4] |
BOLT
|
0.0748(lbs); 0.034
|
| 080. |
0401550100
|
[7] |
WASHER PLAIN
|
0.0396(lbs); 0.018
|
| 090. |
3253029930
|
[4] |
NUT
|
0.0528(lbs); 0.024
|
| 100. |
3824029870
|
[5] |
CUSHION
|
0.0088(lbs); 0.004
|
| 110. |
0113351025
|
[1] |
BOLT
|
0.0506(lbs); 0.023
|
| 120. |
0401350100
|
[2] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 130. |
3253029974
|
[1] |
SUPPORT STEP LH
|
0.0000(lbs); 0.000
|
| 140. |
0113351030
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 150. |
3253029980
|
[1] |
SUPPORT STEP LH
|
0.4400(lbs); 0.200
|
| 160. |
0113351030
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 170. |
3253029990
|
[1] |
SUPPORT STEP LH
|
0.0000(lbs); 0.000
|
| 180. |
0113351020
|
[3] |
BOLT
|
0.0440(lbs); 0.020
|
| 190. |
3253029950
|
[1] |
SUPPORT STEP RH
|
0.0000(lbs); 0.000
|
| 200. |
0113351030
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 210. |
3253029960
|
[1] |
SUPPORT STEP RH
|
2.3100(lbs); 1.050
|
| 220. |
0113351030
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 230. |
0113351025
|
[1] |
BOLT
|
0.0506(lbs); 0.023
|
| 240. |
3253029870
|
[1] |
STEP RH
|
2.4200(lbs); 1.100
|
