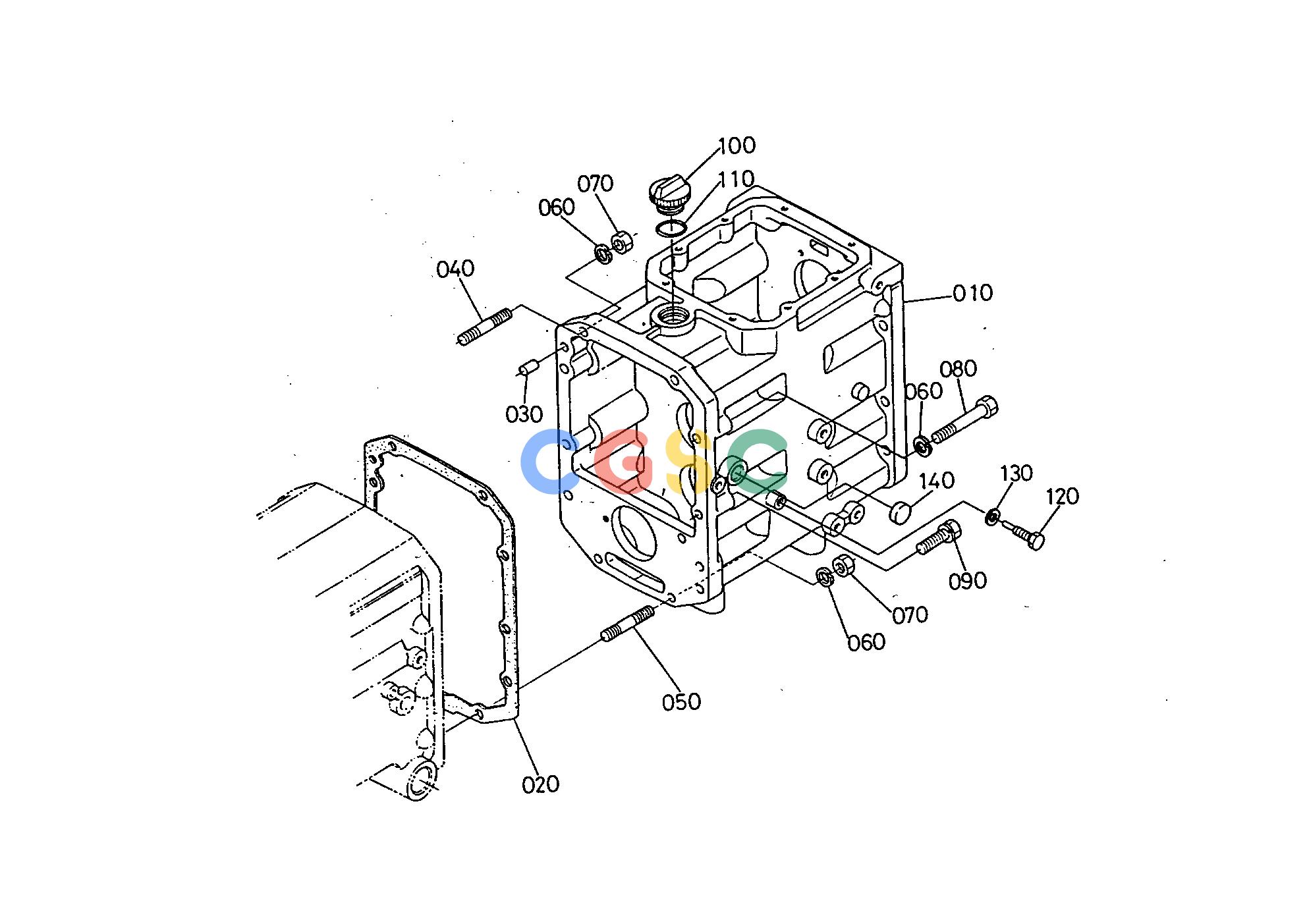

久保田零件查询T03000 MAIN S-CHANGE CASE TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
652 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253021250
|
[1] |
CASE MAIN S-CHANGE
|
0.0000(lbs); 0.000
|
| 020. |
3253021270
|
[1] |
GASKET
|
0.0638(lbs); 0.029
|
| 030. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 040. |
3253014250
|
[2] |
STUD
|
0.0880(lbs); 0.040
|
| 050. |
0157451275
|
[2] |
STUD
|
0.1628(lbs); 0.074
|
| 060. |
0451250120
|
[6] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 070. |
3534027360
|
[4] |
NUT
|
0.0330(lbs); 0.015
|
| 080. |
0117351270
|
[4] |
BOLT
|
0.1474(lbs); 0.067
|
| 090. |
0113351245
|
[2] |
BOLT
|
0.1210(lbs); 0.055
|
| 100. |
3843021410
|
[1] |
PLUG
|
0.0990(lbs); 0.045
|
| 110. |
0481150300
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
3253023120
|
[1] |
SCREW
|
0.0440(lbs); 0.020
|
| 130. |
0471700800
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 140. |
3620021240
|
[1] |
PLUG
|
0.0000(lbs); 0.000
|
