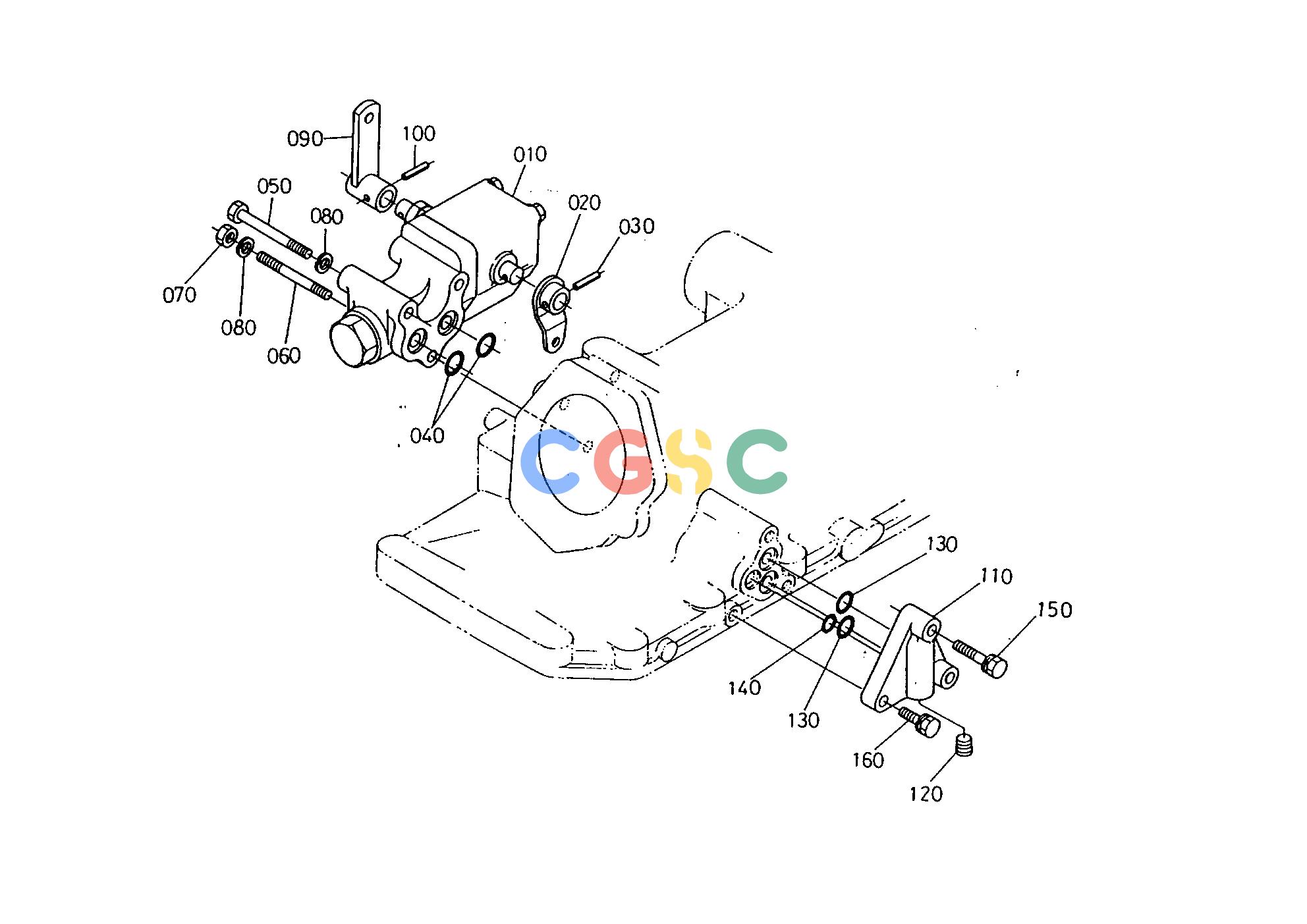

久保田零件查询T07400 DRAFT CONTROL VALVE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
593 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3730041100
|
[1] |
ASSY VALVE DRAFT C0N
|
7.0400(lbs); 3.200
|
| 020. |
3253041340
|
[1] |
LEVER
|
0.1320(lbs); 0.060
|
| 030. |
0541100522
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 040. |
0481100160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0115350875
|
[1] |
BOLT
|
0.0616(lbs); 0.028
|
| 060. |
0151350880
|
[2] |
STUD
|
0.0880(lbs); 0.040
|
| 070. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 080. |
0451250080
|
[3] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 090. |
3253041360
|
[1] |
LEVER DRAFT
|
0.0990(lbs); 0.045
|
| 100. |
0541100522
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 110. |
3253036650
|
[1] |
BLOCK BY-PASS
|
0.9900(lbs); 0.450
|
| 120. |
3135137150
|
[1] |
PLUG
|
0.0132(lbs); 0.006
|
| 130. |
0481000160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
0481100120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 150. |
0112350838
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 160. |
0112350825
|
[1] |
BOLT
|
0.0286(lbs); 0.013
|
