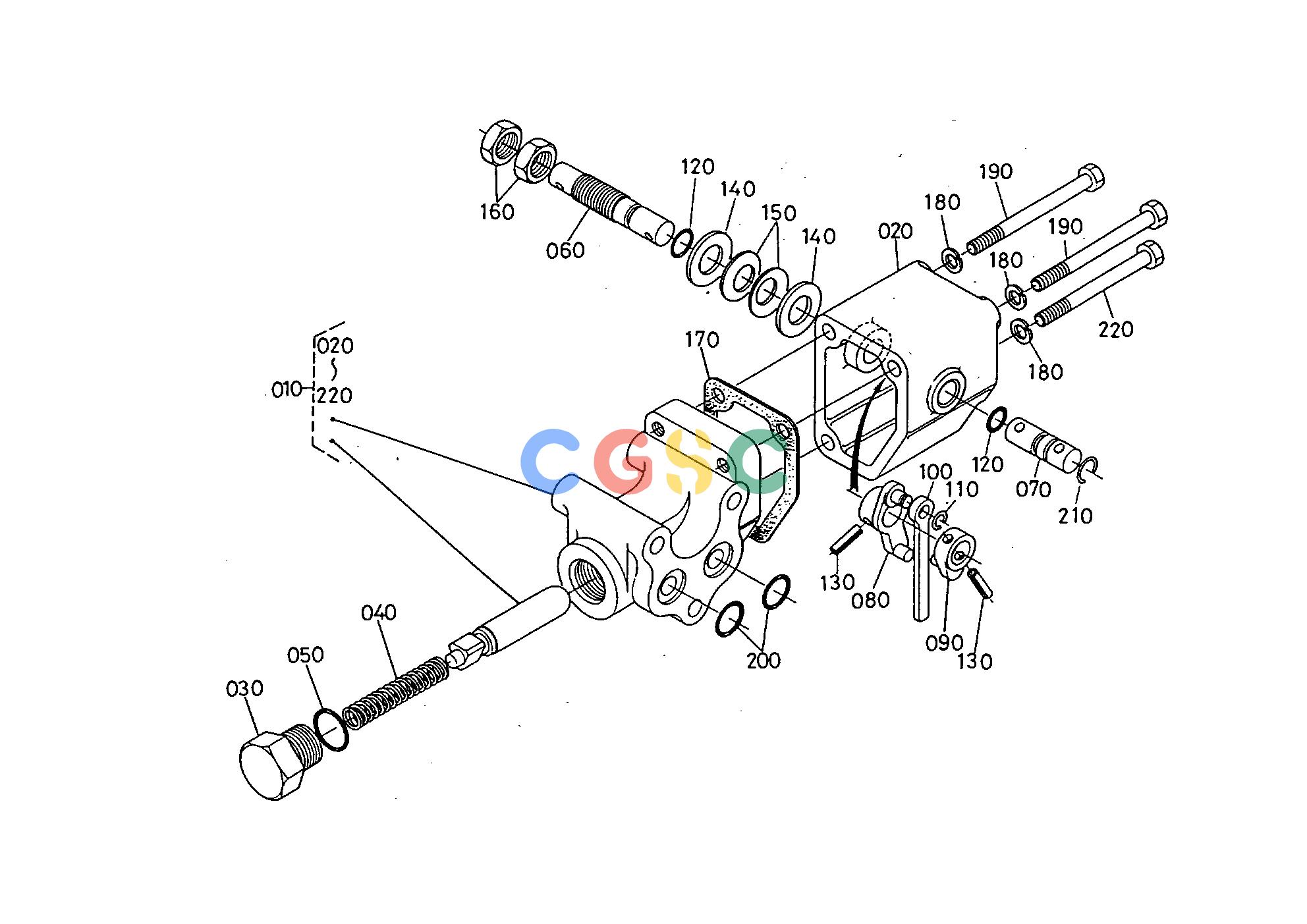

久保田零件查询T07500 DRAFT CONTROL VALVE (SECTION PARTS) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
190 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3730041100
|
[1] |
ASSY VALVE DRAFT C0N
|
7.0400(lbs); 3.200
|
| 020. |
3730041120
|
[1] |
COVER
|
2.3100(lbs); 1.050
|
| 030. |
3730041140
|
[1] |
PLUG
|
0.2156(lbs); 0.098
|
| 040. |
3730041150
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 050. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
3730041160
|
[1] |
SHAFT
|
0.1430(lbs); 0.065
|
| 070. |
3730041170
|
[1] |
SHAFT
|
0.0660(lbs); 0.030
|
| 080. |
3730041180
|
[1] |
ARM
|
0.0660(lbs); 0.030
|
| 090. |
3224036630
|
[1] |
ARM
|
0.0330(lbs); 0.015
|
| 100. |
3730041270
|
[1] |
LINK
|
0.0264(lbs); 0.012
|
| 110. |
0461300050
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 120. |
0481100090
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
0541100518
|
[2] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 140. |
0401150140
|
[2] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 150. |
3730041280
|
[2] |
SPRING
|
0.0110(lbs); 0.005
|
| 160. |
0217250140
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 170. |
3730041290
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 180. |
0451250080
|
[3] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 190. |
0115050875
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 200. |
0481000160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 210. |
3730041360
|
[1] |
CIR-CLIP
|
0.0022(lbs); 0.001
|
| 220. |
0115050870
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
