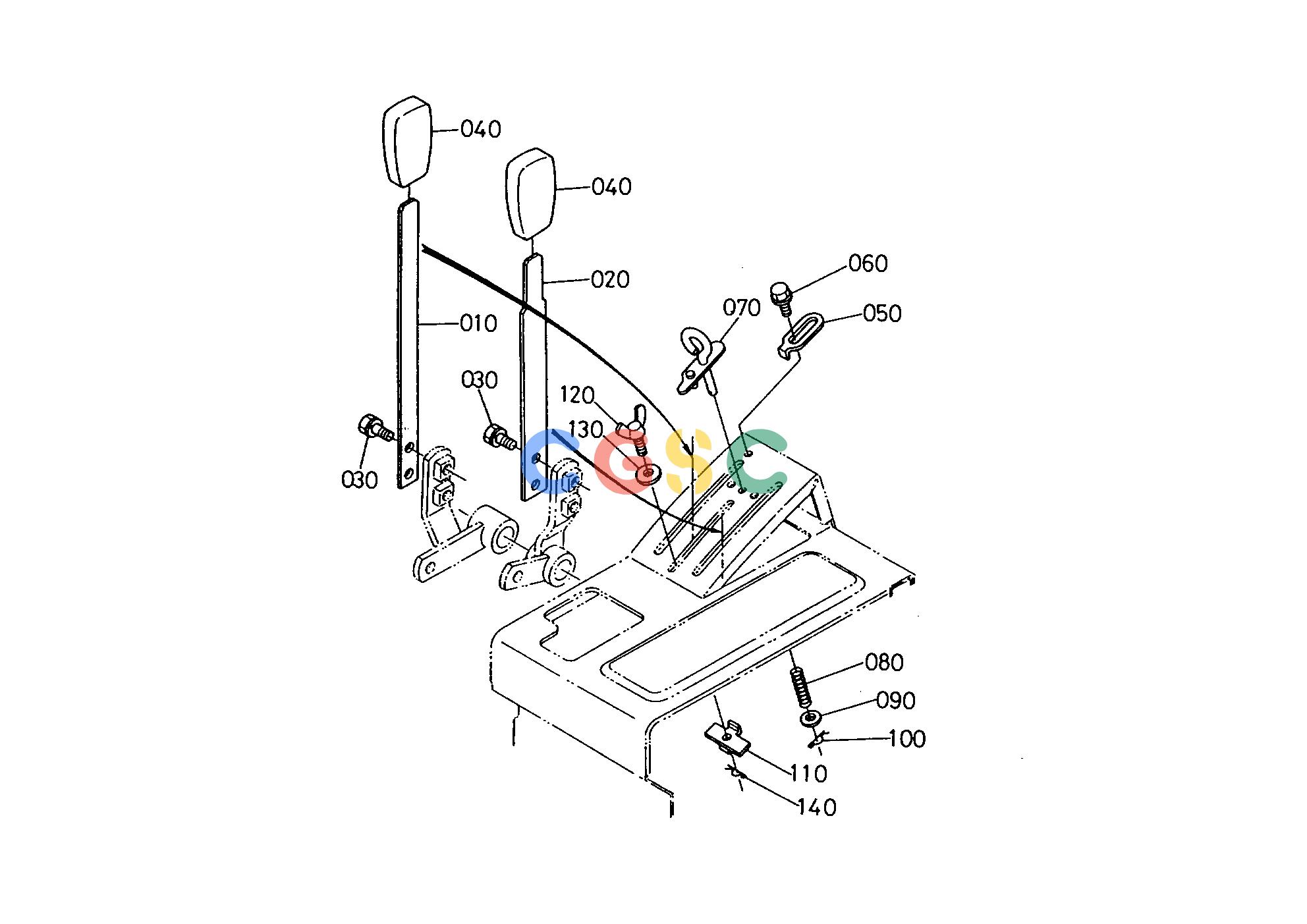

久保田零件查询T07700 DRAFT AND POSITION LEVER 2 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
966 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253036854
|
[1] |
LEVER
|
0.0000(lbs); 0.000
|
| 020. |
3253041390
|
[1] |
LEVER
|
0.0000(lbs); 0.000
|
| 030. |
0112350818
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 040. |
3135136880
|
[2] |
GRIP LEVER
|
0.0880(lbs); 0.040
|
| 050. |
3253036950
|
[1] |
STOPPER LEVER
|
0.0220(lbs); 0.010
|
| 060. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 070. |
3253036960
|
[1] |
STOPPER LEVER
|
0.0880(lbs); 0.040
|
| 080. |
3253036970
|
[1] |
SPRING STOPPER
|
0.0022(lbs); 0.001
|
| 090. |
0401250060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 100. |
0551550600
|
[1] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 110. |
3253036980
|
[1] |
STOPPER LEVER
|
0.0550(lbs); 0.025
|
| 120. |
3253036990
|
[1] |
BOLT STOPPER
|
0.0330(lbs); 0.015
|
| 130. |
0401250060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 140. |
0552550600
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
