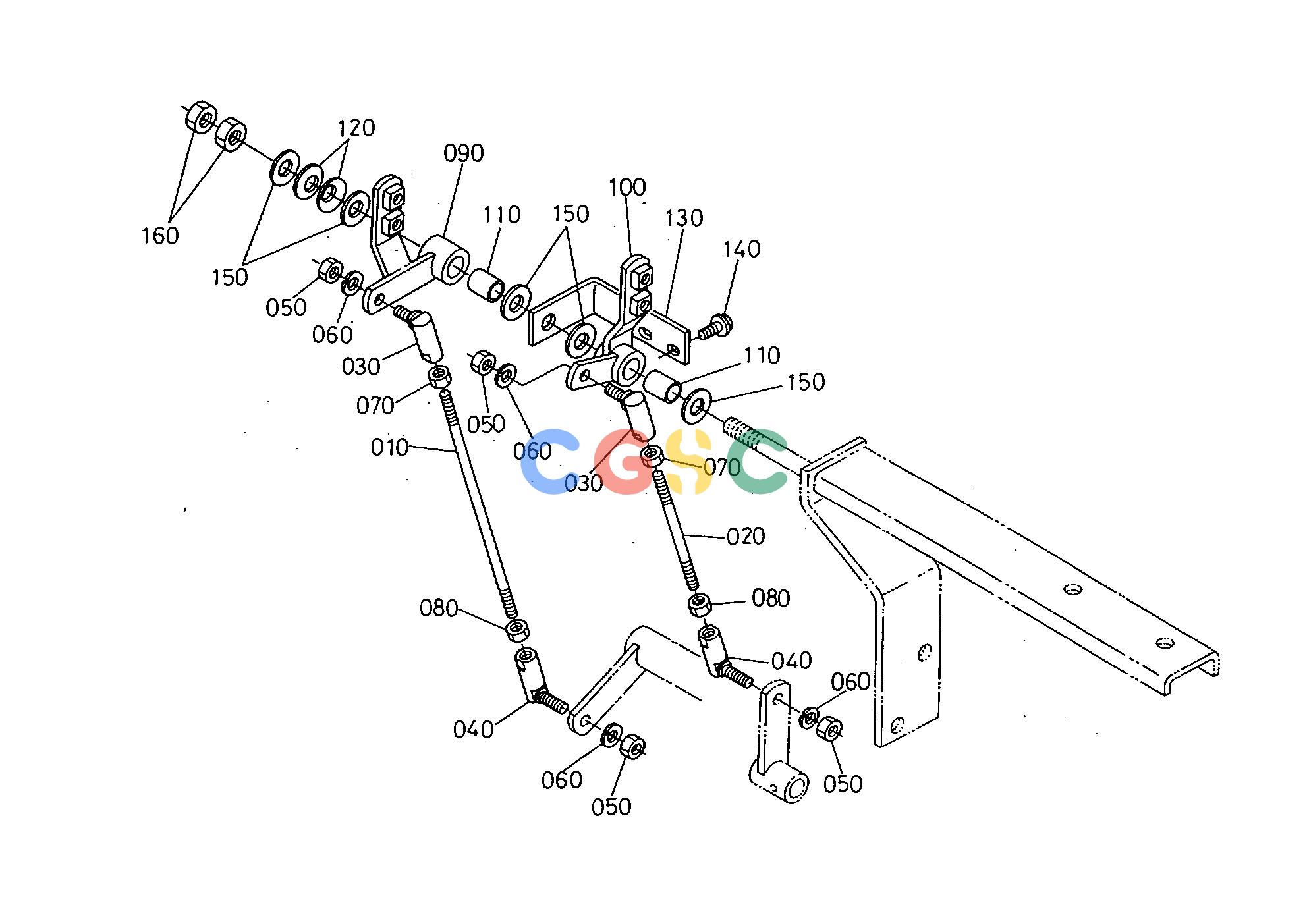

久保田零件查询T07600 DRAFT AND POSITION LEVER 1 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
230 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253036860
|
[1] |
ROD POSITION
|
0.0880(lbs); 0.040
|
| 020. |
3253041370
|
[1] |
ROD DRAFT
|
0.0000(lbs); 0.000
|
| 030. |
3653027750
|
[2] |
END ROD RH
|
0.0880(lbs); 0.040
|
| 040. |
3653027760
|
[2] |
END ROD LH
|
0.0660(lbs); 0.030
|
| 050. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 060. |
0451250060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 070. |
0201250060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 080. |
3653027770
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 090. |
3253036874
|
[1] |
ARM POSITION
|
0.0000(lbs); 0.000
|
| 100. |
3253041380
|
[1] |
ARM DRAFT
|
0.0000(lbs); 0.000
|
| 110. |
3253036810
|
[2] |
BUSH
|
0.0000(lbs); 0.000
|
| 120. |
3253036930
|
[2] |
SPRING
|
0.0110(lbs); 0.005
|
| 130. |
3253036920
|
[1] |
SEPARATOR
|
0.1760(lbs); 0.080
|
| 140. |
0175450616
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 150. |
0401350120
|
[5] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 160. |
0217450120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
