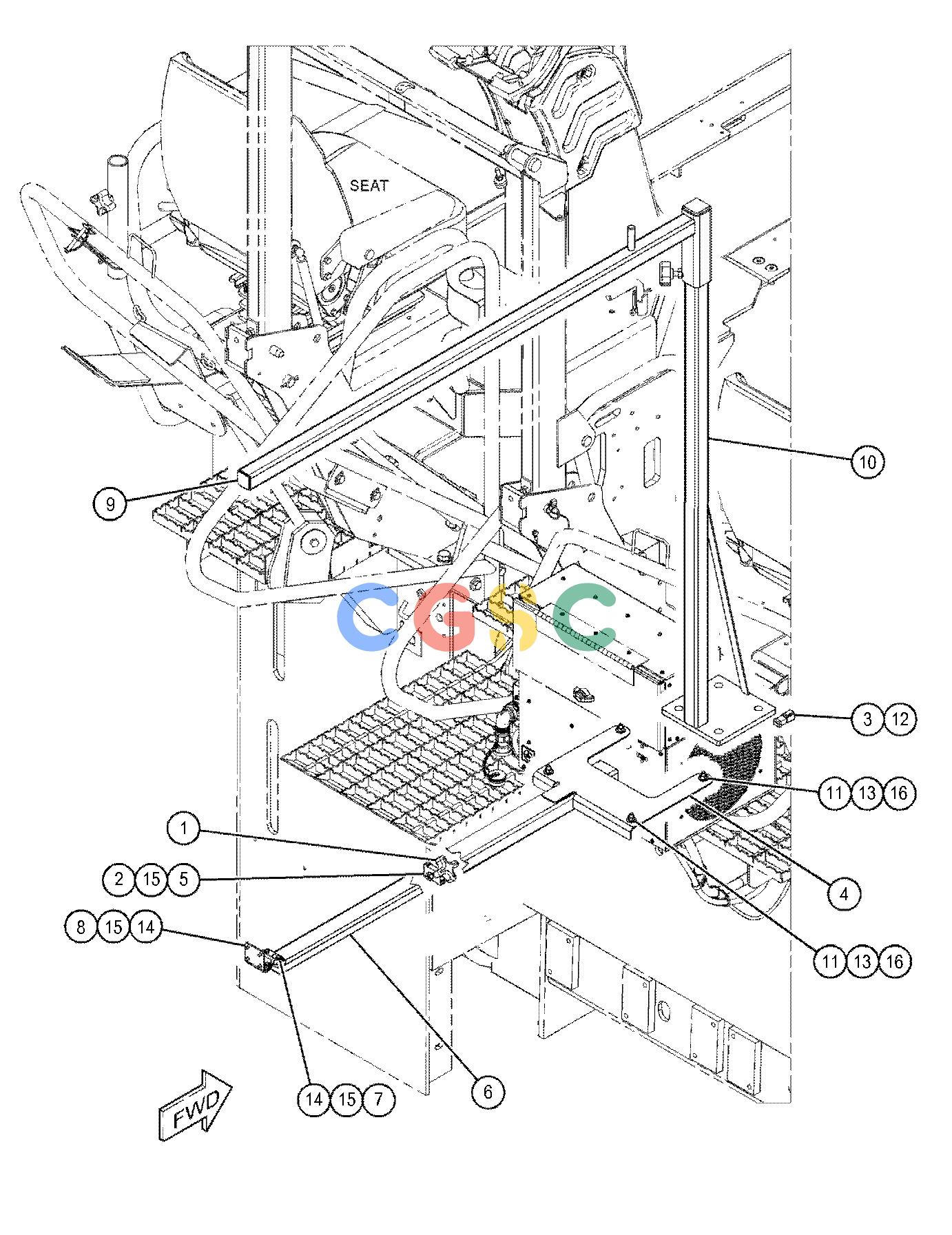

卡特零件查询（AP600F） 491-5820: MOUNTING GP-SENSOR
广数供应链运营团队, 17 02月, 2025，浏览：
718 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7X-7943 | [2] | KNOB-CLAMP | |
| 2. | 8T-7547M | [1] | BOLT(M8X1.25X30-MM) | |
| 3. | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 4. | 524-8961 | [1] | MOUNT AS | |
| | 7T-1099 | [1] | LINK | |
| 5. | 485-4367 | [1] | GUIDE | |
| 6. | 491-5819 | [1] | TUBE AS | |
| 7. | 491-5821 | [1] | HINGE AS | |
| 8. | 491-5822 | [1] | BRACKET AS | |
| | 8T-8874M | [2] | NUT-WELD(M5X0.8-THD) | |
| 9. | 491-5827 | [1] | TUBE AS | |
| 10. | 491-5830 | [1] | MOUNT AS | |
| 11. | 344-5674M | [4] | NUT(M8X1.25-THD) | |
| 12. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 13. | 5P-4116 | [9] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 14. | 8T-0287M | [8] | BOLT(M5X0.8X10-MM) | |
| 15. | 8T-0328 | [8] | WASHER-HARD(5.5X10X1-MM THK) | |
| 16. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| | M | | METRIC PART |
