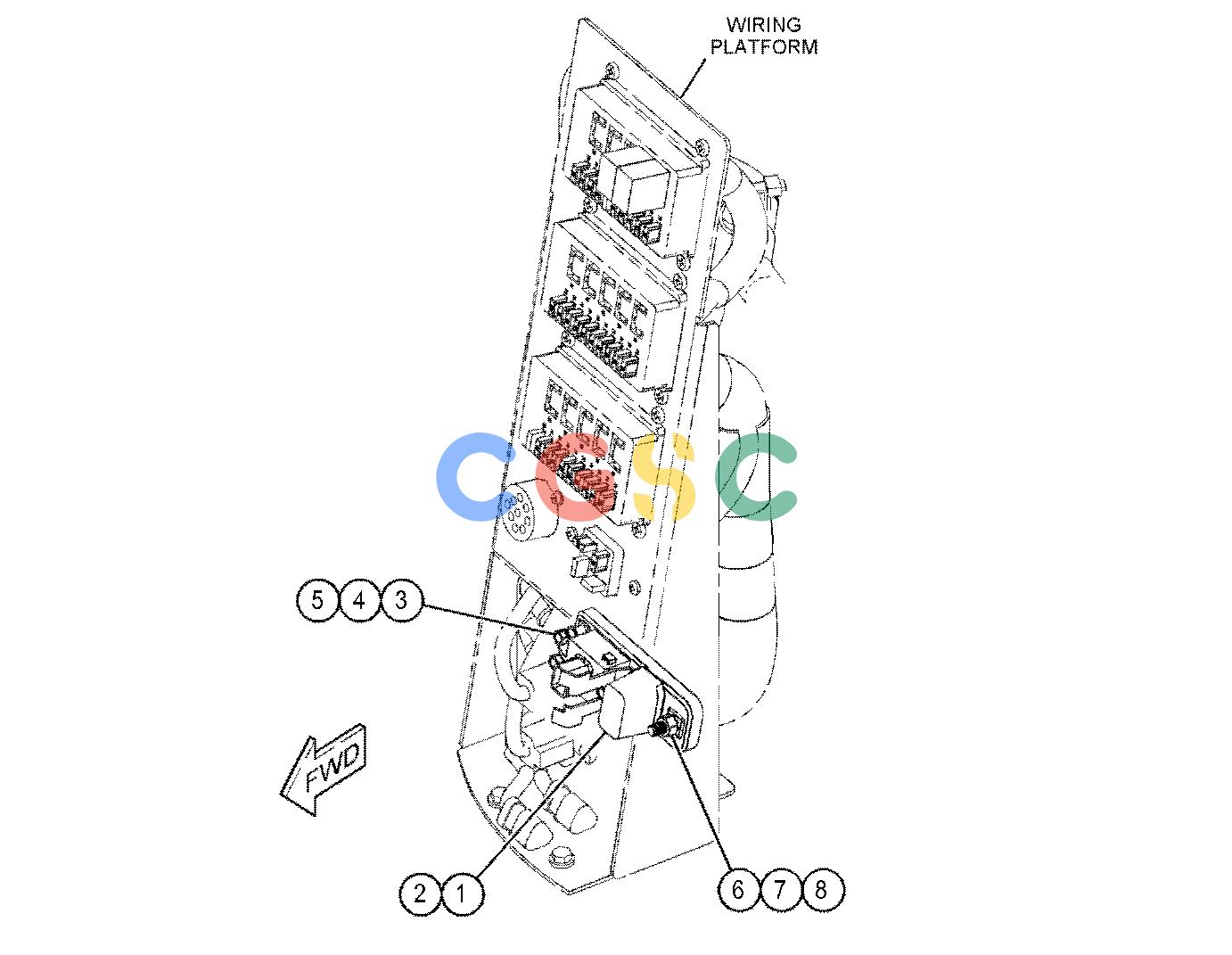

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 267-5213 | [1] | COVER | |
| 2. | 267-5211 | [1] | SEAL | |
| 3. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 4. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 5. | 1H-3244 | [2] | LOCKWASHER | |
| 6. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 7. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 8. | 9F-5644 | [1] | LOCKWASHER | |
| M | METRIC PART | |||
