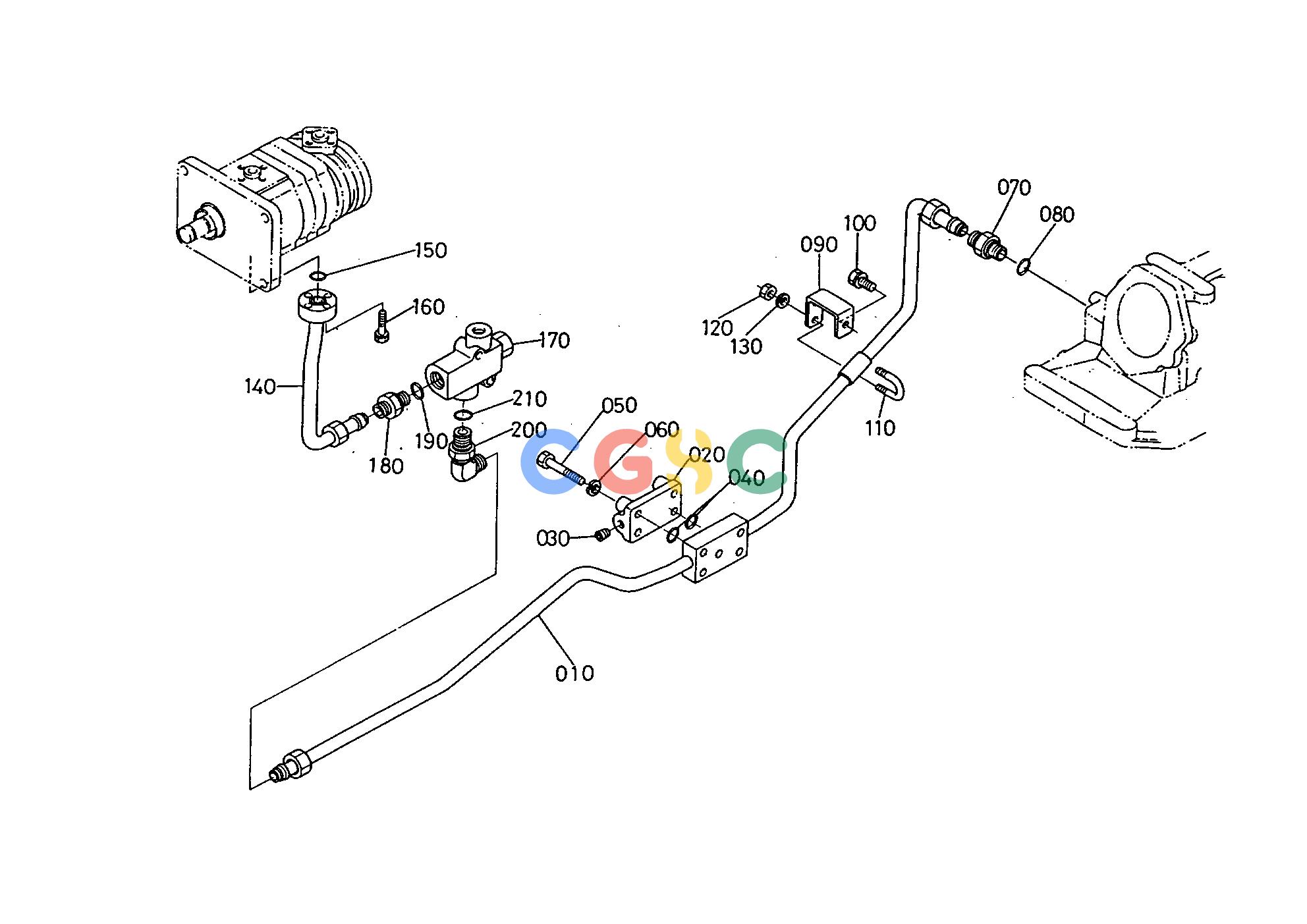

久保田零件查询T08400 HYDRAULIC OIL LINE (DELIVERY HYD.SHUTTLE) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
729 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253038220
|
[1] |
COMP.PIPE DELIVERY
|
0.0000(lbs); 0.000
|
| 020. |
3253036720
|
[1] |
COVER O/P BLOCK
|
1.1220(lbs); 0.510
|
| 030. |
3135137150
|
[1] |
PLUG
|
0.0132(lbs); 0.006
|
| 040. |
0481000160
|
[3] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0115350860
|
[4] |
BOLT
|
0.0528(lbs); 0.024
|
| 060. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 070. |
3253038760
|
[1] |
JOINT
|
0.1430(lbs); 0.065
|
| 080. |
0481000180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
3253035850
|
[1] |
SUPPORT PIPE
|
0.2090(lbs); 0.095
|
| 100. |
0113351020
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 110. |
3253035880
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 120. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 130. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 140. |
3253038310
|
[1] |
COMP.PIPE DELIVERY
|
0.8140(lbs); 0.370
|
| 150. |
0481140110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 160. |
0102350628
|
[4] |
BOLT
|
0.0330(lbs); 0.015
|
| 170. |
3253038280
|
[1] |
ASSY VALVE
|
3.0800(lbs); 1.400
|
| 180. |
3253038760
|
[1] |
JOINT
|
0.1430(lbs); 0.065
|
| 190. |
0481000180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 200. |
3253038780
|
[1] |
JOINT
|
0.0000(lbs); 0.000
|
| 210. |
0481000180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
