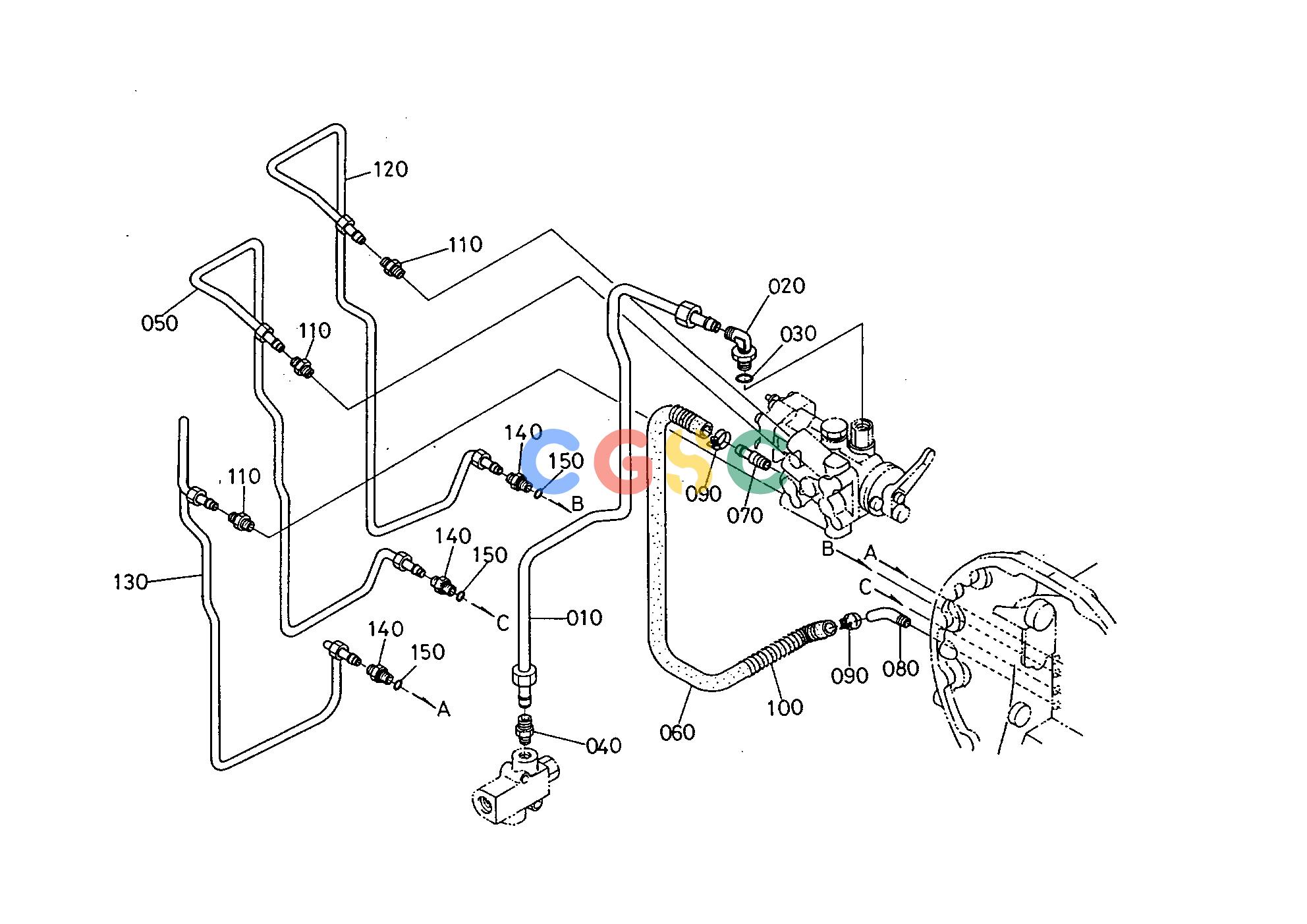

久保田零件查询T08500 HYDRAULIC SHUTTLE OIL LINE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253038360
|
[1] |
PIPE SHUTTLE
|
0.6380(lbs); 0.290
|
| 020. |
3253038790
|
[1] |
JOINT
|
0.0000(lbs); 0.000
|
| 030. |
0481000140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
3253038810
|
[1] |
JOINT
|
0.0000(lbs); 0.000
|
| 050. |
3253038380
|
[1] |
PIPE SHUTTLE
|
0.7700(lbs); 0.350
|
| 060. |
3253038394
|
[1] |
PIPE SHUTTLE
|
0.0000(lbs); 0.000
|
| 070. |
1532173340
|
[1] |
PIPE WATER RETURN
|
0.0352(lbs); 0.016
|
| 080. |
1552105550
|
[1] |
JOINT BREATHER PIPE
|
0.0880(lbs); 0.040
|
| 090. |
3633063690
|
[2] |
BAND HOSE
|
0.0220(lbs); 0.010
|
| 100. |
3253038460
|
[1] |
SPRING PIPE PROTECT.
|
0.2200(lbs); 0.100
|
| 110. |
3253038940
|
[3] |
JOINT
|
0.0000(lbs); 0.000
|
| 120. |
3253038420
|
[1] |
PIPE SHUTTLE
|
0.5720(lbs); 0.260
|
| 130. |
3253038430
|
[1] |
PIPE SHUTTLE
|
0.6380(lbs); 0.290
|
| 140. |
3253038970
|
[3] |
JOINT
|
0.0000(lbs); 0.000
|
| 150. |
0481000110
|
[3] |
O RING
|
0.0022(lbs); 0.001
|
