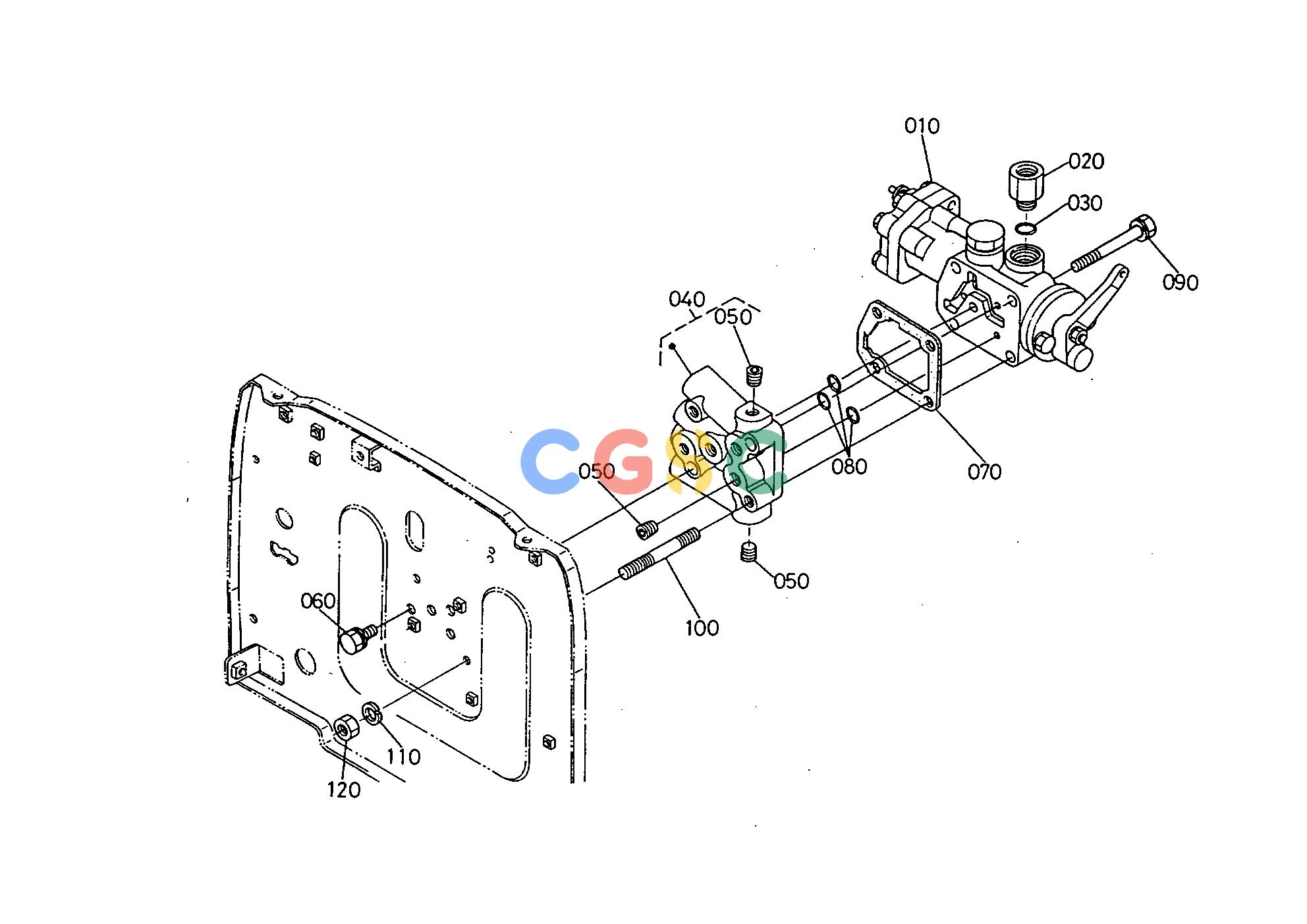

久保田零件查询T08600 HYDRAULIC SHUTTLE VALVE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
402 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253046000
|
[1] |
ASSY VALVE
|
0.0000(lbs); 0.000
|
| 020. |
3253046160
|
[1] |
ADAPTER
|
0.1100(lbs); 0.050
|
| 030. |
0481000140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
3253046340
|
[1] |
SPACER VALVE
|
4.1800(lbs); 1.900
|
| 050. |
3135137160
|
[6] |
PLUG
|
0.0066(lbs); 0.003
|
| 060. |
0112350816
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 070. |
3537046330
|
[1] |
GASKET
|
0.0088(lbs); 0.004
|
| 080. |
0481100120
|
[3] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0112350855
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 100. |
0151350885
|
[2] |
STUD
|
0.0770(lbs); 0.035
|
| 110. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 120. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
