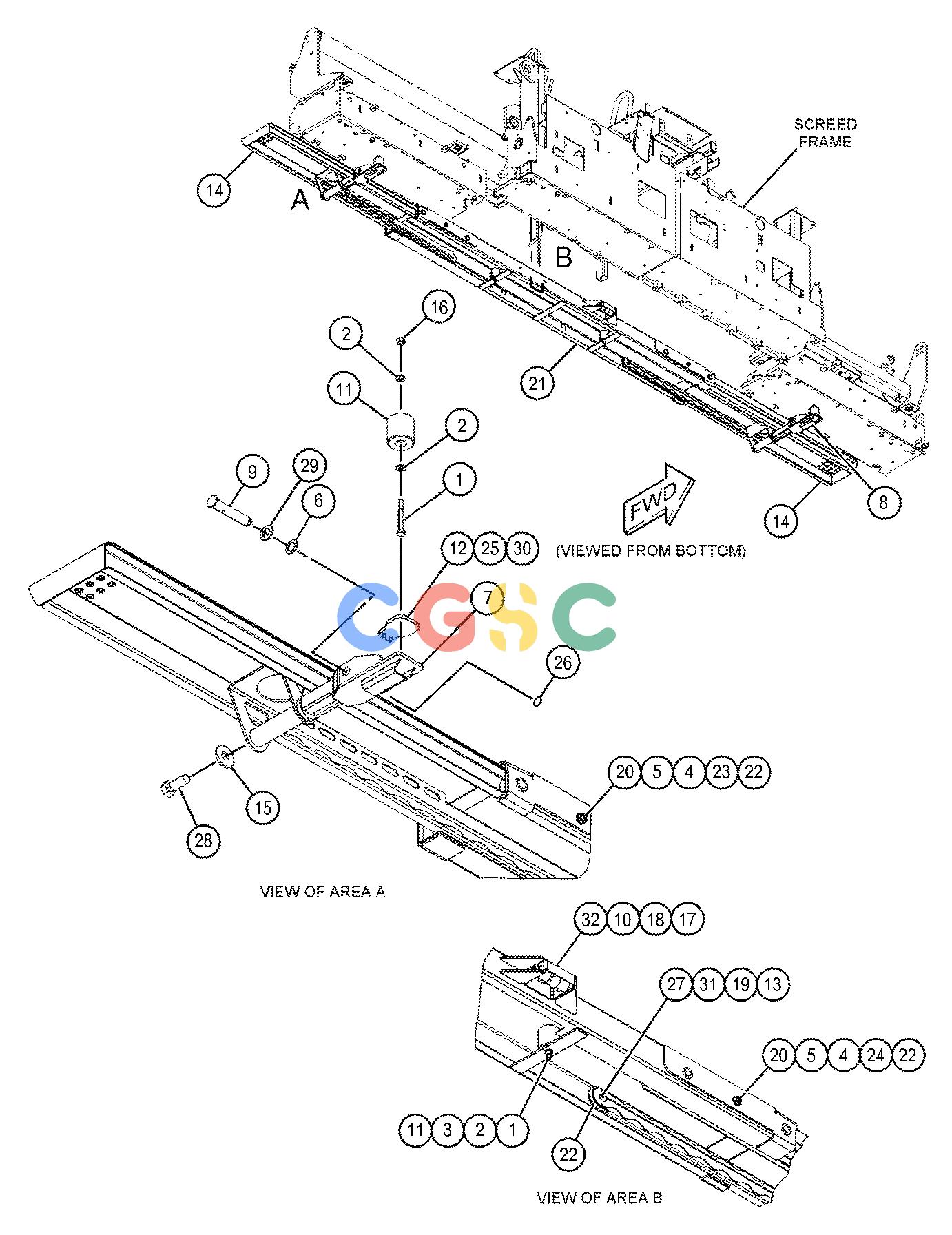

卡特零件查询（AP600F） 390-4830: WALKWAY GP
广数供应链运营团队, 17 02月, 2025，浏览：
158 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7X-2549CM | [4] | BOLT(M12X1.75X100-MM) | |
| 2. | 8T-4223C | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 3. | 8T-8549CM | [2] | LOCKNUT(M12X1.75-THD) | |
| 4. | 9X-8257C | [4] | WASHER(17.5X30X3.5-MM THK) | |
| 5. | 098-5747CM | [4] | NUT(M16X2-THD) | |
| 6. | 190-4375BC | [2] | WASHER(26X40X2-MM THK) | |
| 7. | 439-2778 | [1] | ARM AS-SUPPORT(RH) | |
| 8. | 439-2779 | [1] | ARM AS-SUPPORT(LH) | |
| 9. | 441-6207 | [2] | PIN | |
| 10. | 441-6208 | [2] | BUMPER | |
| 11. | 441-6210C | [4] | BLOCK | |
| 12. | 441-6211 | [2] | PAD | |
| 13. | 476-3239 | [4] | PIN | |
| 14. | 543-8245C | [2] | WALKWAY AS(EXTENDER) | |
| 15. | 068-6405 | [2] | WASHER(26X63.5X6-MM THK) | |
| 16. | 329-3356M | [2] | NUT(M12X1.75-THD) | |
| 17. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 18. | 384-1628 | [2] | WASHER-HARD(8.8X35X4-MM THK) | |
| 19. | 476-3240 | [4] | ROLLER | |
| 20. | 4I-0734CM | [4] | SETSCREW-SOCKET(M16X2X45-MM) | |
| 21. | 543-8244C | [1] | WALKWAY AS(MAIN) | |
| 22. | 552-7034C | [12] | ROLLER | |
| 23. | 552-7228C | [2] | PIN-CAM | |
| 24. | 552-7252C | [2] | PIN-CAM | |
| 25. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 26. | 6K-8162 | [2] | RING-RETAINING | |
| 27. | 9X-2616M | [4] | SCREW-SOCKET(M8X1.25X16-MM) | |
| 28. | 7X-2575M | [2] | BOLT(M24X3X60-MM) | |
| 29. | 8T-4167BC | [2] | WASHER-HARD(26X44X4-MM THK) | |
| 30. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 31. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 552-8519 | [1] | BRACKET | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
