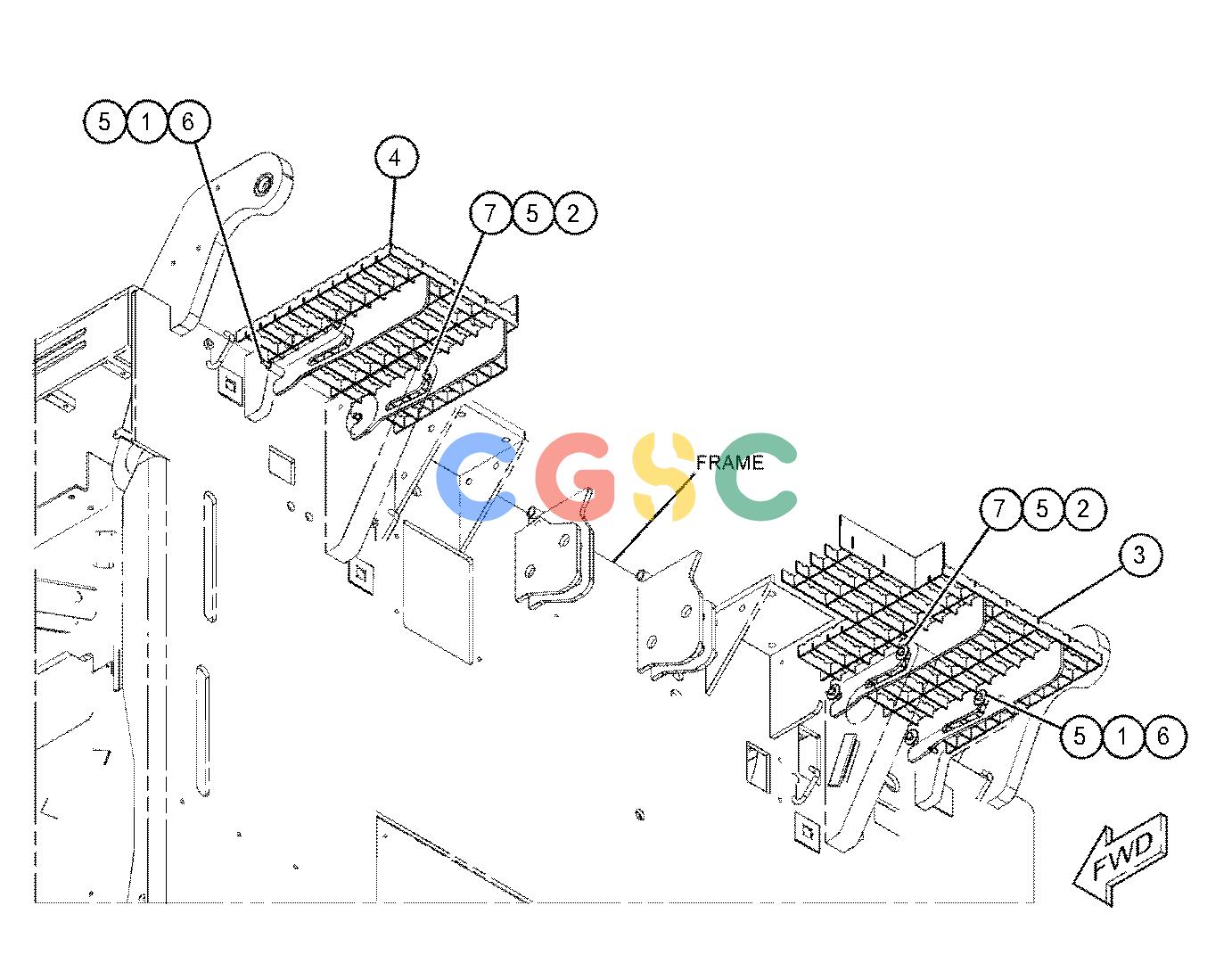

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 039-8869 | [4] | TUBE | |
| 2. | 258-6607 | [4] | SPACER(8.4X14X17-MM THK) | |
| 3. | 434-0037 | [1] | WALKWAY AS(LH) | |
| 4. | 434-0039 | [1] | WALKWAY AS(RH) | |
| 5. | 8T-4222 | [8] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 6. | 8T-6870M | [4] | BOLT(M8X1.25X70-MM) | |
| 7. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| M | METRIC PART | |||
