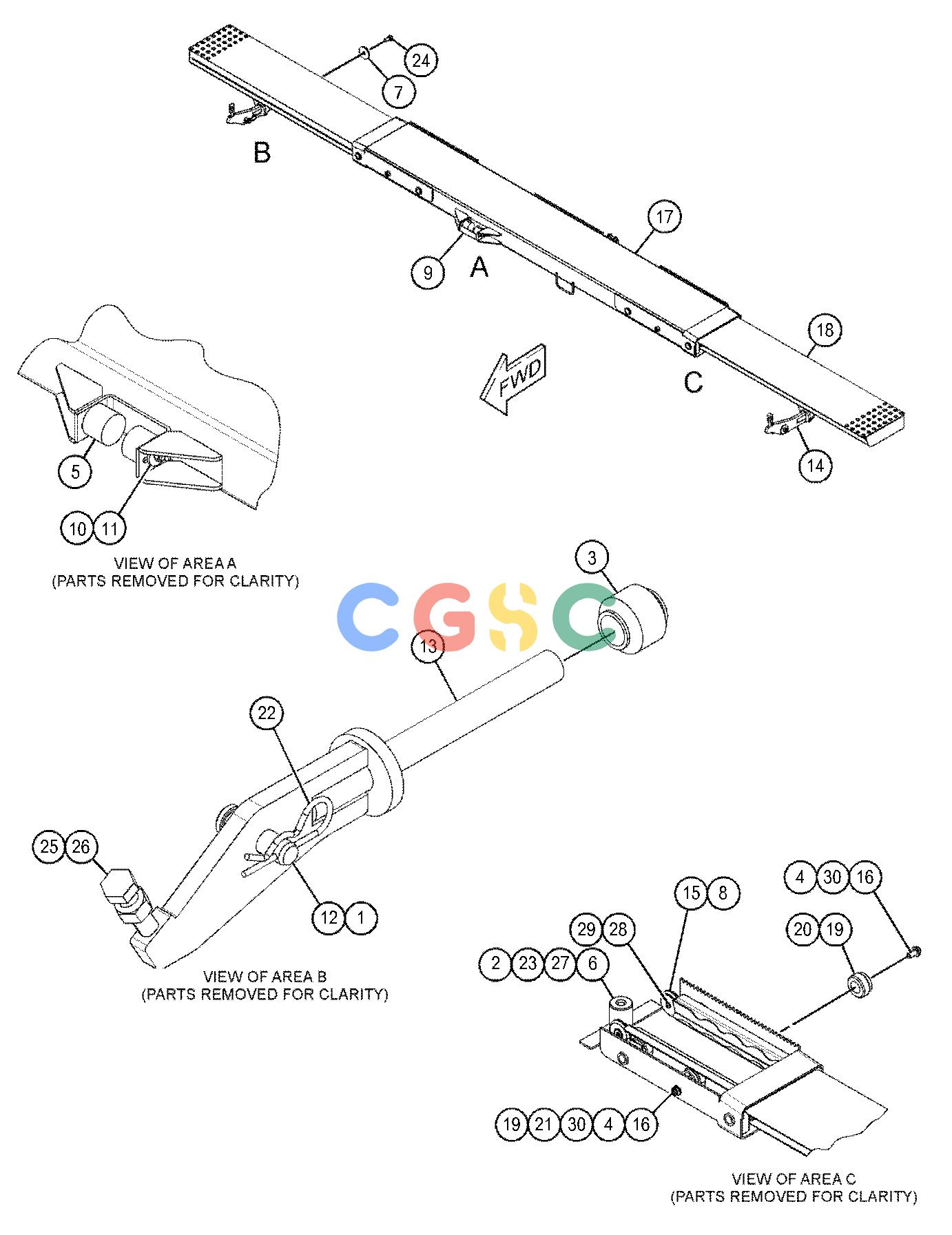

卡特零件查询（AP600F） 428-4934: WALKWAY GP
广数供应链运营团队, 17 02月, 2025，浏览：
556 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7X-0567B | [6] | WASHER-HARD(20X51X1-MM THK) | |
| 2. | 8T-8549M | [2] | LOCKNUT(M12X1.75-THD) | |
| 3. | 9S-5187 | [4] | MOUNTING | |
| 4. | 098-5747M | [4] | NUT(M16X2-THD) | |
| 5. | 441-6208 | [2] | BUMPER | |
| 6. | 441-6210 | [2] | BLOCK | |
| 7. | 445-7865 | [2] | WASHER(17.5X68X6-MM THK) | |
| 8. | 476-3239 | [4] | PIN | |
| 9. | 552-8519 | [1] | BRACKET | |
| 10. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 11. | 384-1628 | [2] | WASHER-HARD(8.8X35X4-MM THK) | |
| 12. | 425-4127 | [2] | PIN | |
| 13. | 436-0156 | [1] | ARM AS-SUPPORT | |
| 14. | 436-0157 | [1] | ARM AS-SUPPORT | |
| 15. | 476-3240 | [4] | ROLLER | |
| 16. | 4I-0734M | [4] | SETSCREW-SOCKET(M16X2X45-MM) | |
| 17. | 551-7472 | [1] | WALKWAY AS | |
| 18. | 551-7474 | [2] | WALKWAY AS | |
| 19. | 552-7034 | [12] | ROLLER | |
| 20. | 552-7228 | [2] | PIN-CAM | |
| 21. | 552-7252 | [2] | PIN-CAM | |
| 22. | 5P-8837 | [2] | LOCK PIN | |
| 23. | 7X-2549M | [2] | BOLT(M12X1.75X100-MM) | |
| 24. | 7X-2552M | [2] | BOLT(M16X2X30-MM) | |
| 25. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 26. | 8T-4140M | [2] | BOLT(M16X2X60-MM) | |
| 27. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 28. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 29. | 9X-2616M | [4] | SCREW-SOCKET(M8X1.25X16-MM) | |
| 30. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
