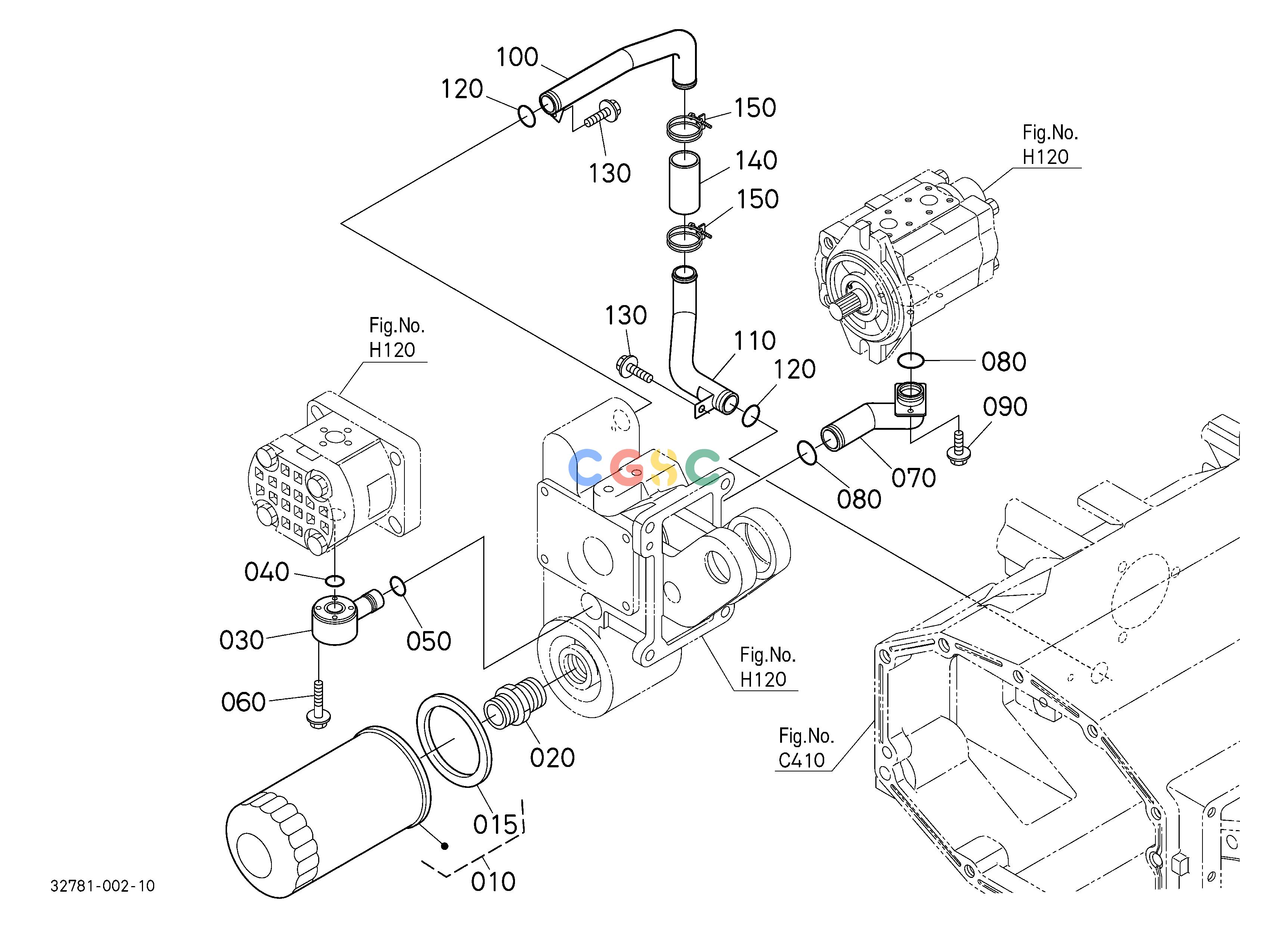

久保田零件查询H20100 HYDRAULIC OIL LINE (SUCTION) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
506 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04037711
|
[2] |
ASSY FILTER,OIL
|
0.0000(lbs); 0.000
|
| 010. |
HHTA037710
|
[2] |
FILTER(CARTRIDGE,OIL)
|
1.6060(lbs); 0.730
|
| 015. |
T007037720
|
[2] |
MAGNET(OIL FILTER)
|
0.0880(lbs); 0.040
|
| 020. |
3259038330
|
[2] |
JOINT,SCREW
|
0.1100(lbs); 0.050
|
| 030. |
3278133310
|
[1] |
COMP.PIPE,INLET
|
1.1660(lbs); 0.530
|
| 040. |
0481700220
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 060. |
0175450650
|
[4] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 070. |
3278133320
|
[1] |
COMP.PIPE,INLET
|
0.4620(lbs); 0.210
|
| 080. |
0481600260
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0175450616
|
[2] |
BOLT,FLANGE
|
0.0132(lbs); 0.006
|
| 100. |
3278156320
|
[1] |
PIPE,SUCTION
|
0.5060(lbs); 0.230
|
| 110. |
3278156330
|
[1] |
PIPE,SUCTION
|
0.4840(lbs); 0.220
|
| 120. |
0481607230
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
0175450812
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 140. |
3278156340
|
[1] |
HOSE,SUCTION
|
0.1210(lbs); 0.055
|
| 150. |
0931889039
|
[2] |
CLAMP,HOSE
|
0.0440(lbs); 0.020
|
