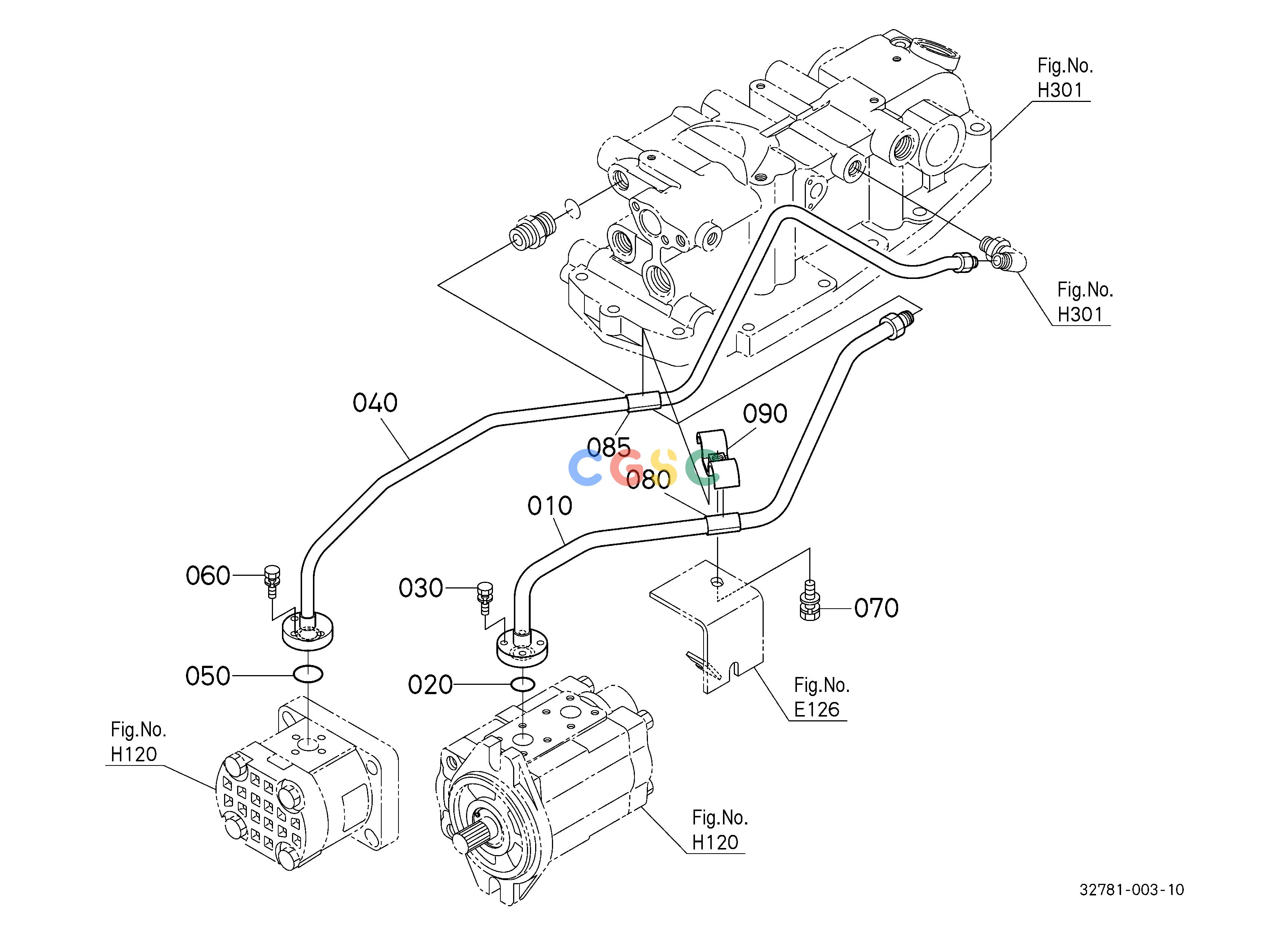

久保田零件查询H20900 HYDRAULIC OIL LINE (DERIVERY) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
549 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3278133410
|
[1] |
COMP.PIPE,DELIVERY
|
1.1880(lbs); 0.540
|
| 020. |
0481700200
|
[1] |
O RING
|
0.0242(lbs); 0.011
|
| 030. |
0102350622
|
[4] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 040. |
3278133533
|
[1] |
COMP.PIPE,SWING
|
1.4740(lbs); 0.670
|
| 050. |
3588063650
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0102350622
|
[3] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 070. |
0112550820
|
[1] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 080. |
3278133470
|
[1] |
RUBBER,PROTECTOR
|
0.0132(lbs); 0.006
|
| 085. |
3278133480
|
[1] |
CUSHION
|
0.0110(lbs); 0.005
|
| 090. |
3278133540
|
[1] |
CLAMP,PIPE
|
0.1100(lbs); 0.050
|
