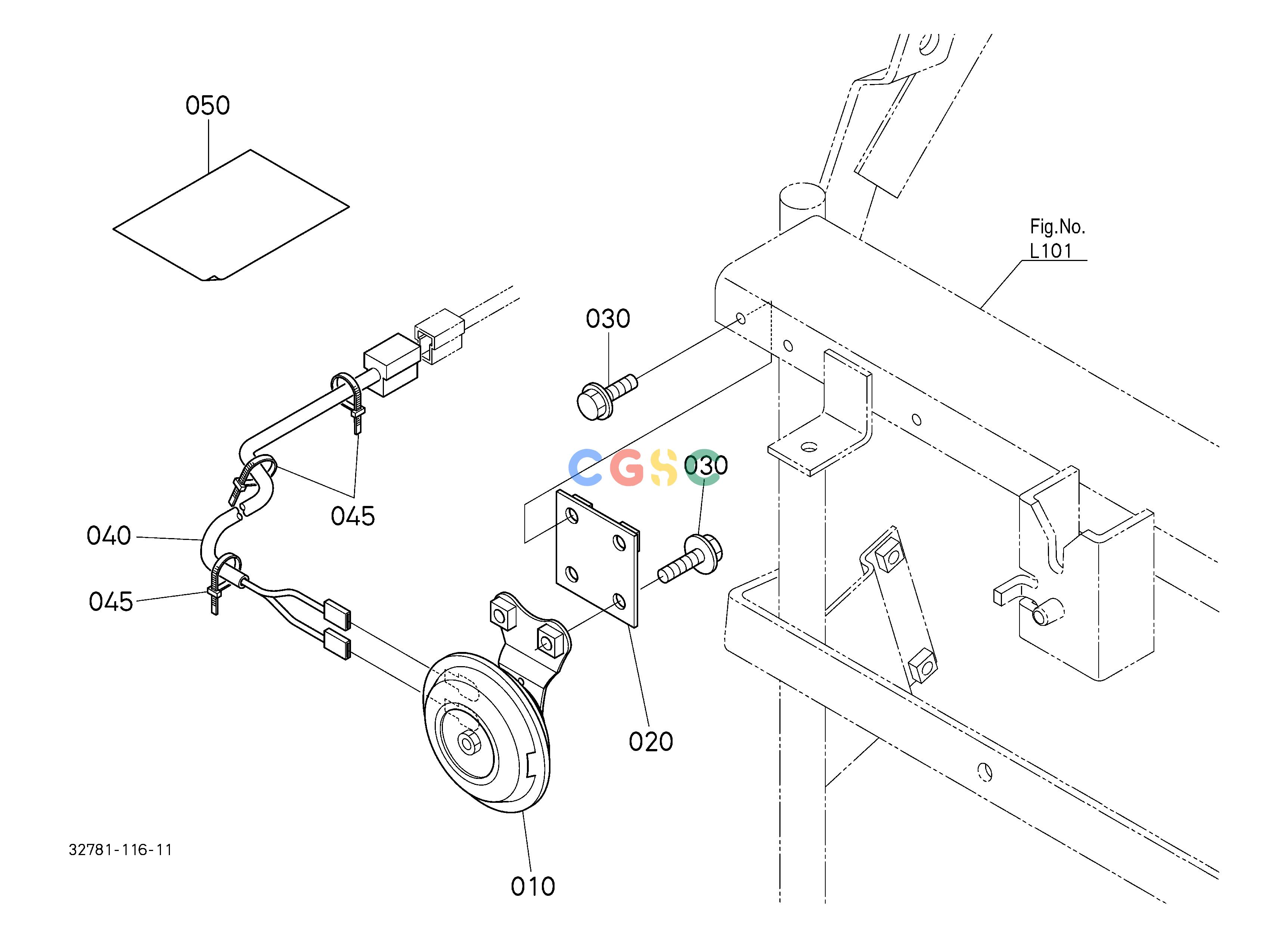

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6A10030850 | [1] | ASSY HORN | 0.3278(lbs); 0.149 |
| 020. | 3278196550 | [1] | STAY,HORN | 0.0770(lbs); 0.035 |
| 030. | 0175450616 | [4] | BOLT,FLANGE | 0.0132(lbs); 0.006 |
| 040. | 3278196520 | [1] | WIRE HARNESS | 0.1100(lbs); 0.050 |
| 045. | 5358164150 | [3] | BAND,CORD | ; >=51564 0.0044(lbs); 0.002 |
| 050. | 99999-99999 | [1] | MANUAL,ASSEMBLY | 0.0000(lbs); 0.000 |
