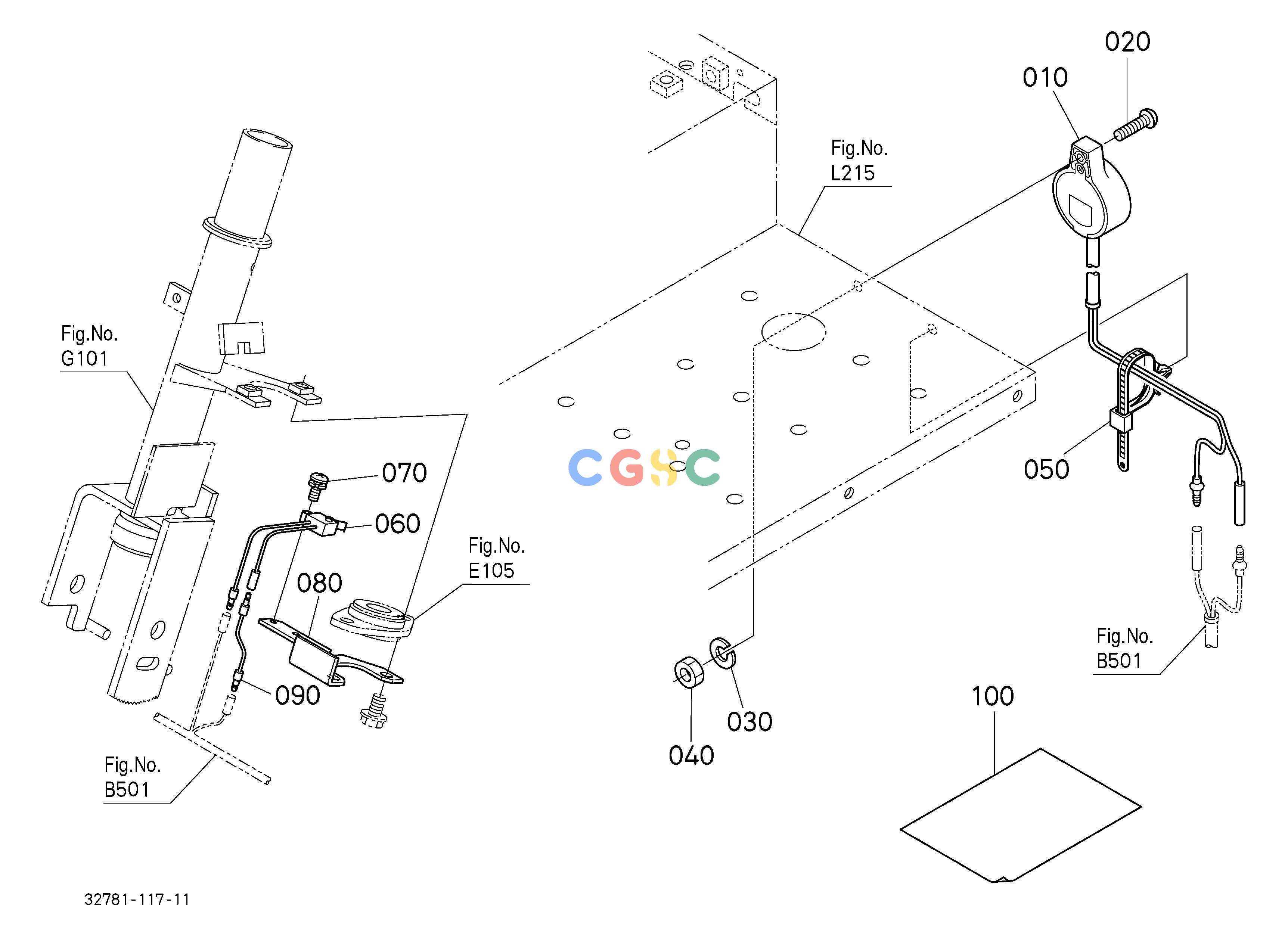

久保田零件查询T10700 BACK BUZZER KIT (W/G.No.L8046) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
723 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3275196860
|
[1] |
BUZZER,BACK
|
0.0990(lbs); 0.045
|
| 020. |
0305450520
|
[1] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0110(lbs); 0.005
|
| 030. |
0451250050
|
[1] |
WASHER,SPRING LOCK
|
0.0022(lbs); 0.001
|
| 040. |
0205450050
|
[1] |
HEX.NUT
|
0.0044(lbs); 0.002
|
| 050. |
3F76004540
|
[1] |
CLAMP
|
0.0044(lbs); 0.002
|
| 060. |
TA04043900
|
[1] |
SWITCH,LEVER
|
0.0176(lbs); 0.008
|
| 070. |
0302450412
|
[1] |
SCREW,SEMS(PAN HEAD)
|
0.0022(lbs); 0.001
|
| 080. |
3278196870
|
[1] |
STAY,BACK BUZZER
|
0.1254(lbs); 0.057
|
| 090. |
3278196890
|
[1] |
WIRE HARNESS
|
0.0044(lbs); 0.002
|
| 100. |
99999-99999
|
[1] |
MANUAL,ASSEMBLY
|
0.0000(lbs); 0.000
|
