卡特零件查询（AP655F） 433-3518: FILTER & MTG GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
937 次

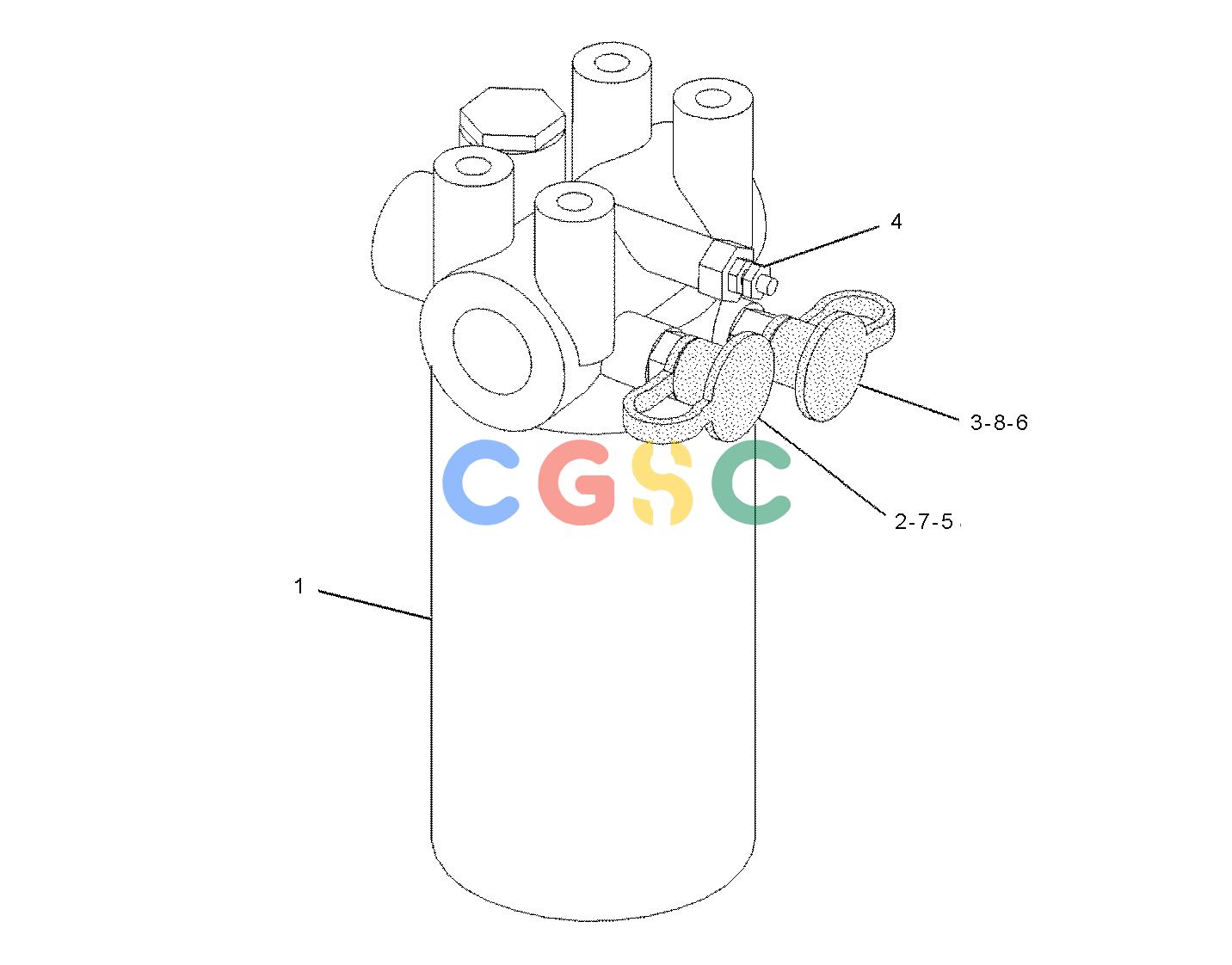

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 192-0717Y | [1] | FILTER GP-OIL(HYDRAULIC) | |
| 2. | 396-7187 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 3. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 4. | 153-6237 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 5. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 6. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 7. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
