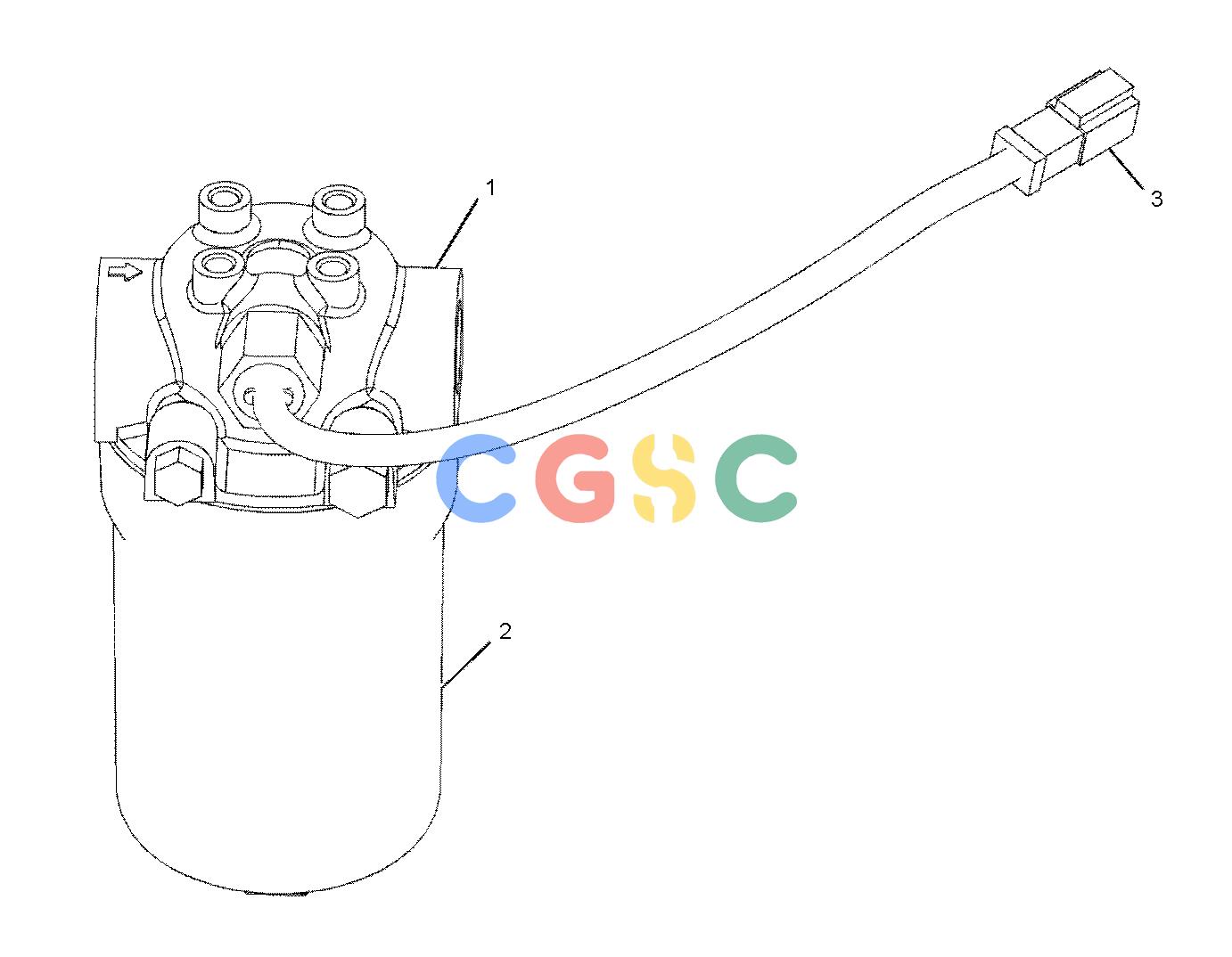

卡特零件查询（AP655F） 433-3528: FILTER & MTG GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
579 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 183-7264 | [1] | VALVE AS-FLUID SAMPLING | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 2. | 320-3061 | [1] | SENSOR GP-PRESSURE(HYDRAULIC OIL) | |
| 3. | 346-5576Y | [1] | FILTER GP-OIL | |
| 4. | 461-0655 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 5. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 6. | 148-8381 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-5429 | [1] | ELBOW | |
| 7. | 153-6241 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8C-8989 | [1] | ELBOW | |
| 8. | 155-7321 | [1] | ADAPTER AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-1722 | [1] | ADAPTER | |
| 9. | 165-4931 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8077 | [1] | ELBOW | |
| 10. | 180-9933 | [1] | ADAPTER AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 135-9941 | [1] | ADAPTER | |
| 11. | 331-1136 | [1] | ADAPTER AS | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 331-1137 | [1] | ADAPTER | |
| 12. | 6V-6560 | [1] | SEAL-O-RING | |
| 13. | 8C-3447 | [1] | CAP-DUST | |
| 14. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 16. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
