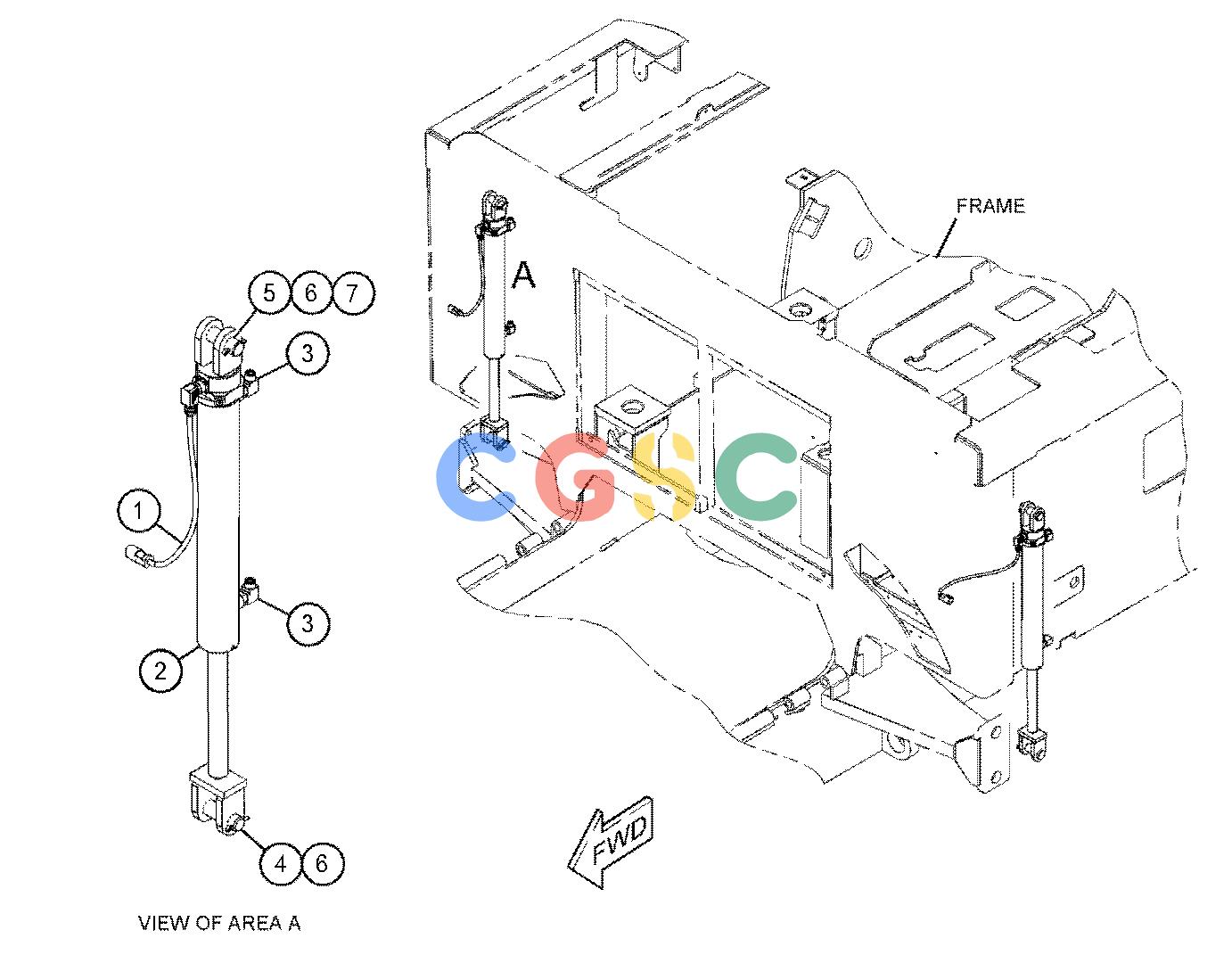

卡特零件查询（AP655F） 433-6593: CYLINDER & MTG GP-TOW POINT
广数供应链运营团队, 17 02月, 2025，浏览：
282 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 353-5791 | [2] | HARNESS AS-WIRING(TOW POINT CYLINDER) | |
| | | | (EACH INCLUDES) |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLDUES RECEPTACLE AS & WEDGE) |
| | 3E-3371 | [1] | WEDGE-RECEPTACLE LOCK(3-PIN) | |
| | 180-9339 | [3] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| 2. | 396-7147Y | [2] | CYLINDER GP-HYDRAULIC(TOW POINT) | |
| 3. | 148-8378 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 4. | 173-3651 | [2] | PIN-CLEVIS | |
| 5. | 253-8675 | [2] | PIN-CLEVIS | |
| 6. | 3B-4629 | [4] | PIN-COTTER | |
| 7. | 8T-4167 | [2] | WASHER-HARD(26X44X4-MM THK) | |
| | Y | | SEPARATE ILLUSTRATION |
