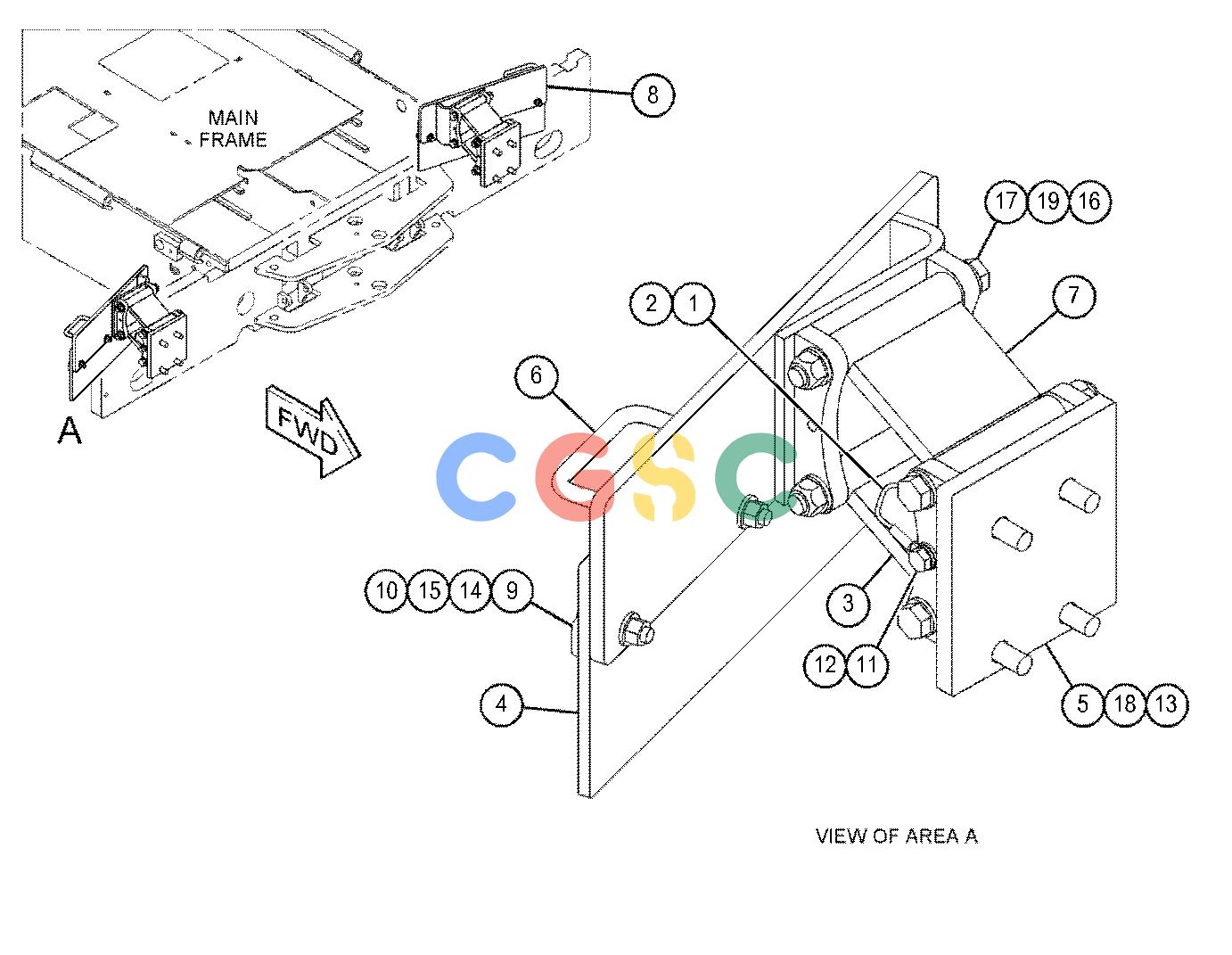

卡特零件查询（AP655F） 480-0259: BLADE & MOUNTING GP
广数供应链运营团队, 17 02月, 2025，浏览：
726 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 135-5049 | [2] | CABLE AS | |
| | | | (EACH INCLUDES) |
| | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 2. | 368-2348 | [2] | PIN-LOCK | |
| 3. | 480-0261 | [2] | BRACKET AS | |
| 4. | 480-0263 | [2] | FLASHING | |
| 5. | 480-0267 | [2] | BRACKET AS | |
| 6. | 480-7081 | [1] | BRACKET AS | |
| | 102-2868 | [1] | GRIP-HANDLE | |
| 7. | 481-4855 | [2] | BRACKET AS | |
| 8. | 481-5768 | [1] | BRACKET AS | |
| | 102-2868 | [1] | GRIP-HANDLE | |
| 9. | 481-6758 | [2] | PLATE | |
| 10. | 329-3356M | [6] | NUT(M12X1.75-THD) | |
| 11. | 7X-2621M | [2] | BOLT(M10X1.5X12-MM) | |
| 12. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4122 | [8] | WASHER-HARD(17X32X3.5-MM THK) | |
| 14. | 8T-4194M | [6] | BOLT(M12X1.75X50-MM) | |
| 15. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 16. | 8T-4778M | [8] | LOCKNUT(M16X2-THD) | |
| 17. | 8T-6385M | [8] | BOLT(M16X2X180-MM) | |
| 18. | 8T-7338M | [8] | BOLT(M16X2X45-MM) | |
| 19. | 9X-8257 | [16] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
