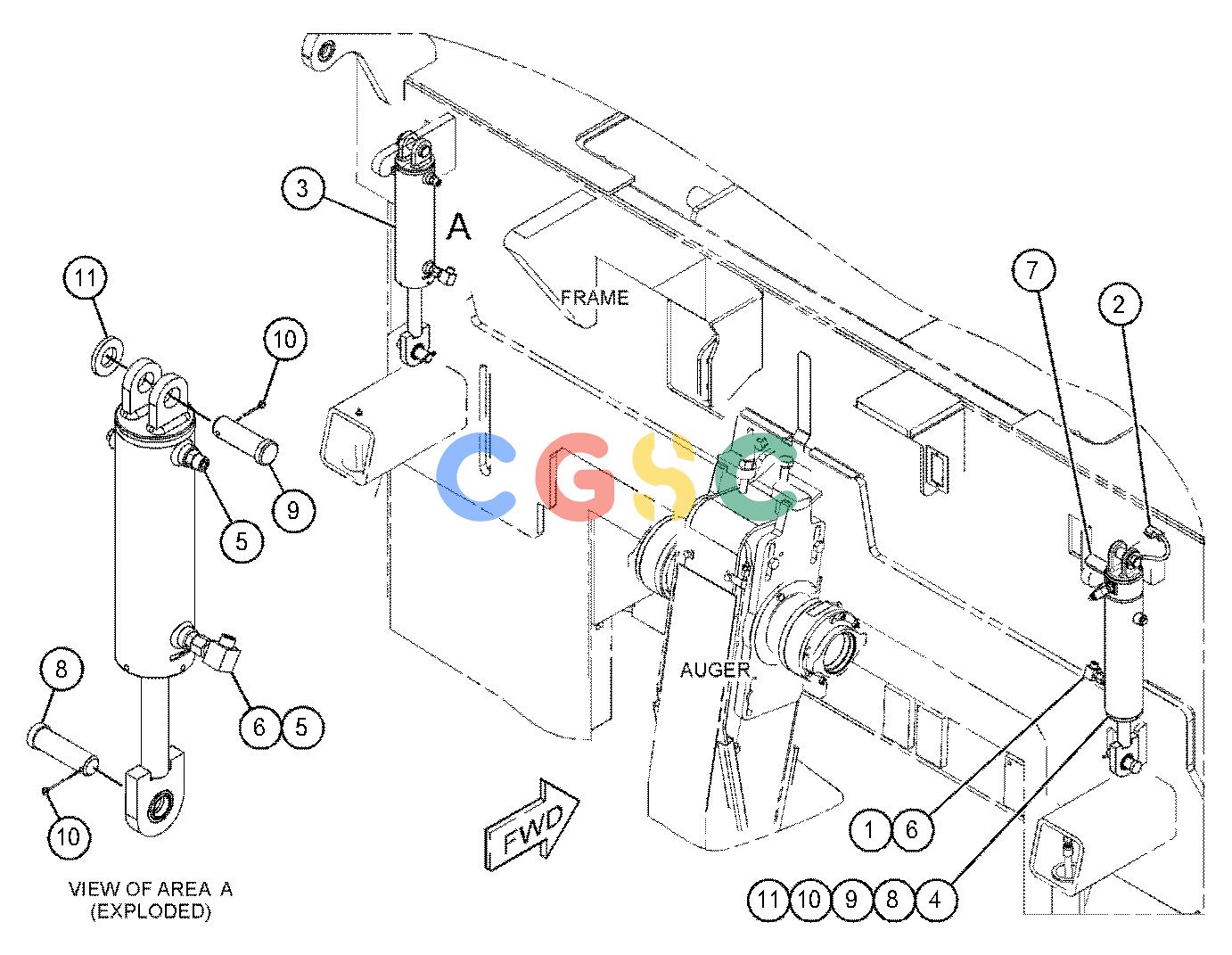

卡特零件查询（AP655F） 433-6595: CYLINDER & MTG GP-AUGER
广数供应链运营团队, 17 02月, 2025，浏览：
576 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 164-6873 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 113-9234 | [1] | CONNECTOR | |
| 2. | 353-5791 | [1] | HARNESS AS-WIRING | |
| 3. | 487-4840Y | [1] | CYLINDER GP-HYDRAULIC(LH) | |
| 4. | 433-7594Y | [1] | CYLINDER GP-HYDRAULIC(RH) | |
| 5. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 6. | 148-8367 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 7. | 150-3036 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-1905 | [1] | ELBOW | |
| 8. | 173-3651 | [2] | PIN-CLEVIS | |
| 9. | 253-8675 | [2] | PIN-CLEVIS | |
| 10. | 3B-4629 | [4] | PIN-COTTER | |
| 11. | 8T-4167 | [2] | WASHER-HARD(26X44X4-MM THK) | |
| | Y | | SEPARATE ILLUSTRATION |
