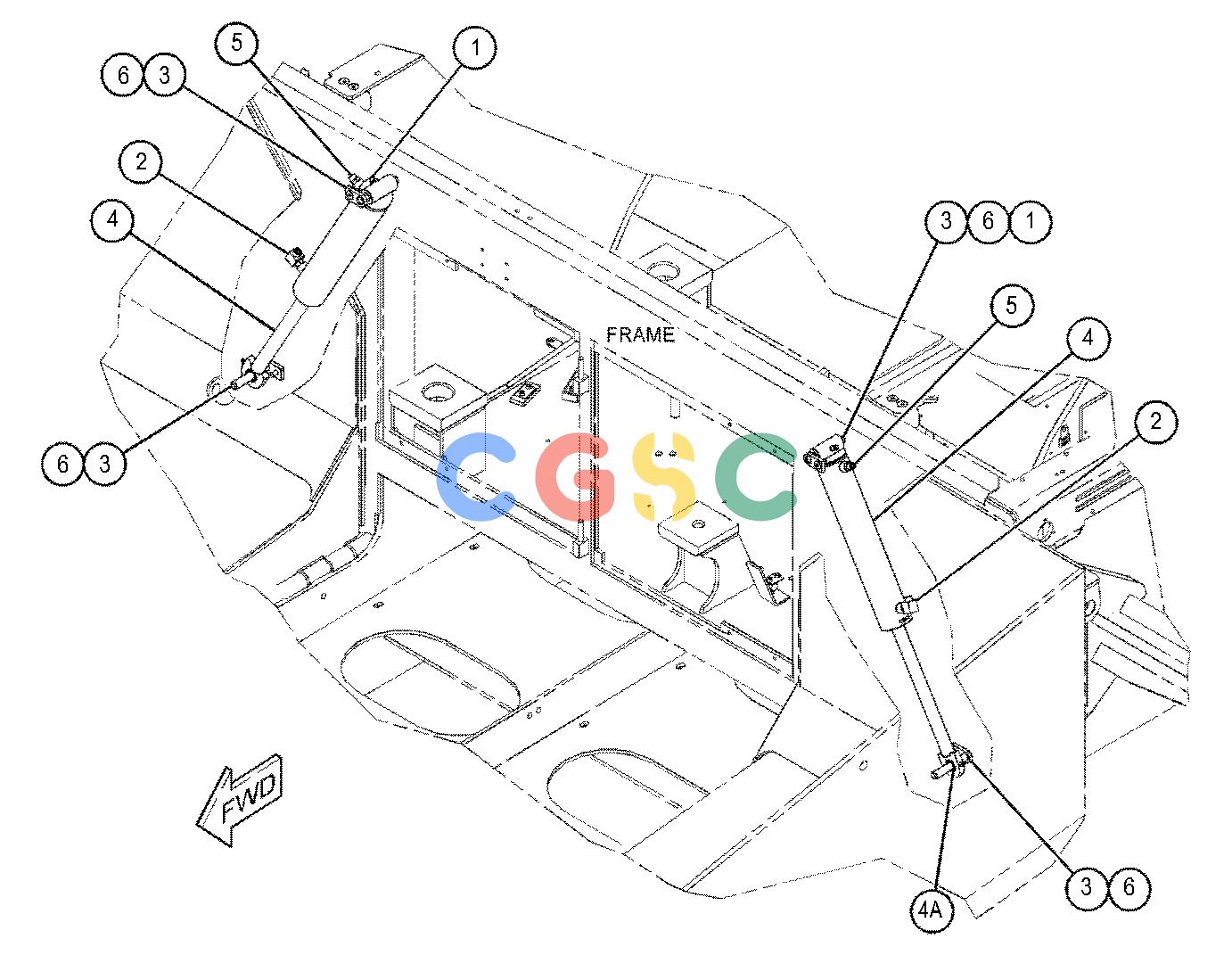

卡特零件查询（AP655F） 392-4694: CYLINDER & MTG GP-HOPPER
广数供应链运营团队, 17 02月, 2025，浏览：
762 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8485 | [2] | ELBOW | |
| 2. | 205-7200 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 108-2144 | [1] | ELBOW | |
| 3. | 512-7669 | [4] | PIN AS | |
| 4. | 487-4839 | [2] | CYLINDER GP-HYDRAULIC | |
| | | | (EACH INCLUDES) |
| | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| | 5E-8617 | [1] | RING-RETAINING | |
| 4A. | 5P-9962 | [1] | BEARING-ALIGNING | |
| 5. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 6. | 6V-7726M | [4] | SCREW-HEX SOCKET(M10X1.5X25-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 276-2179J | [1] | KIT-SEAL(HYDRAULIC CYLINDER) | |
| | | | (INCLUDES O-RING SEALS, WEAR RING, BACKUP RING, CAPSEAL, U-CUPSEAL & WIPER) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
