卡特零件查询（AP655F） 433-3508: LINES GP-GRADE & SLOPE
广数供应链运营团队, 17 02月, 2025，浏览：
285 次

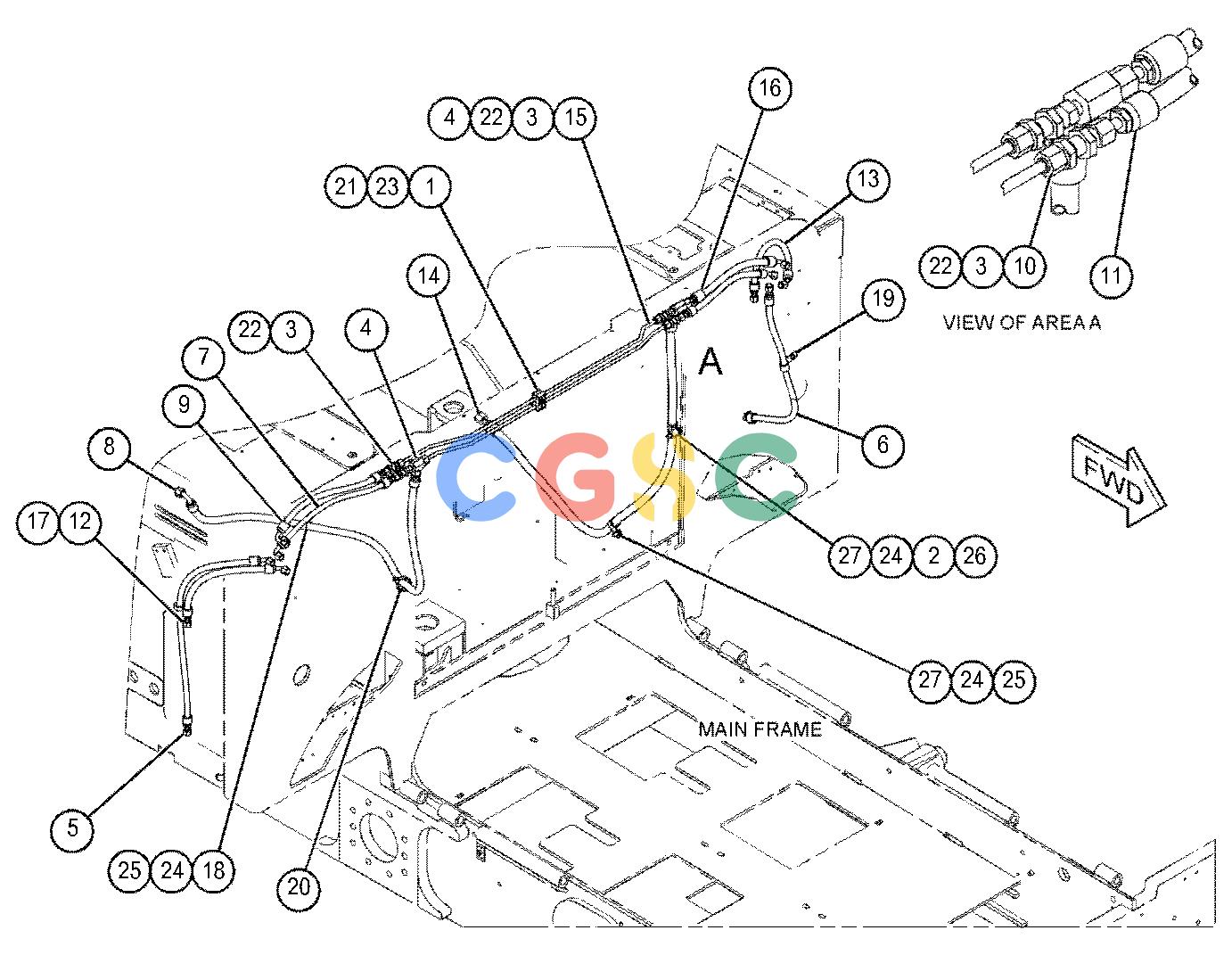

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8703 | [1] | PLATE-COVER | |
| 2. | 198-3897 | [1] | SPACER(11X20X25-MM THK) | |
| 3. | 213-2265 | [4] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 150-0128 | [1] | UNION | |
| 4. | 297-7948 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 101-0052 | [1] | TEE-UNION | |
| 5. | 354-2962I | [1] | HOSE AS | |
| 6. | 363-8379I | [1] | HOSE AS | |
| 7. | 363-8380I | [1] | HOSE AS | |
| 8. | 363-8381I | [1] | HOSE AS | |
| 9. | 363-8382I | [1] | HOSE AS | |
| 10. | 363-8384 | [1] | TUBE AS | |
| 11. | 363-8386I | [1] | HOSE AS | |
| 12. | 434-8827I | [1] | HOSE AS | |
| 13. | 444-1066I | [1] | HOSE AS | |
| 14. | 467-5648I | [1] | HOSE AS | |
| 15. | 467-5649 | [1] | TUBE AS | |
| 16. | 467-5650I | [1] | HOSE AS | |
| 17. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 18. | 204-2281 | [1] | STRAP-CABLE | |
| 19. | 1S-0994 | [1] | CLIP(LOOP) | |
| 20. | 1S-0996 | [1] | CLIP | |
| 21. | 206-6409 | [2] | CLAMP-HALF | |
| 22. | 6V-9168 | [4] | NUT(11/16-16-THD) | |
| 23. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| 24. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 26. | 8T-4182M | [1] | BOLT(M10X1.5X45-MM) | |
| 27. | 9X-8250 | [2] | CLIP | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
