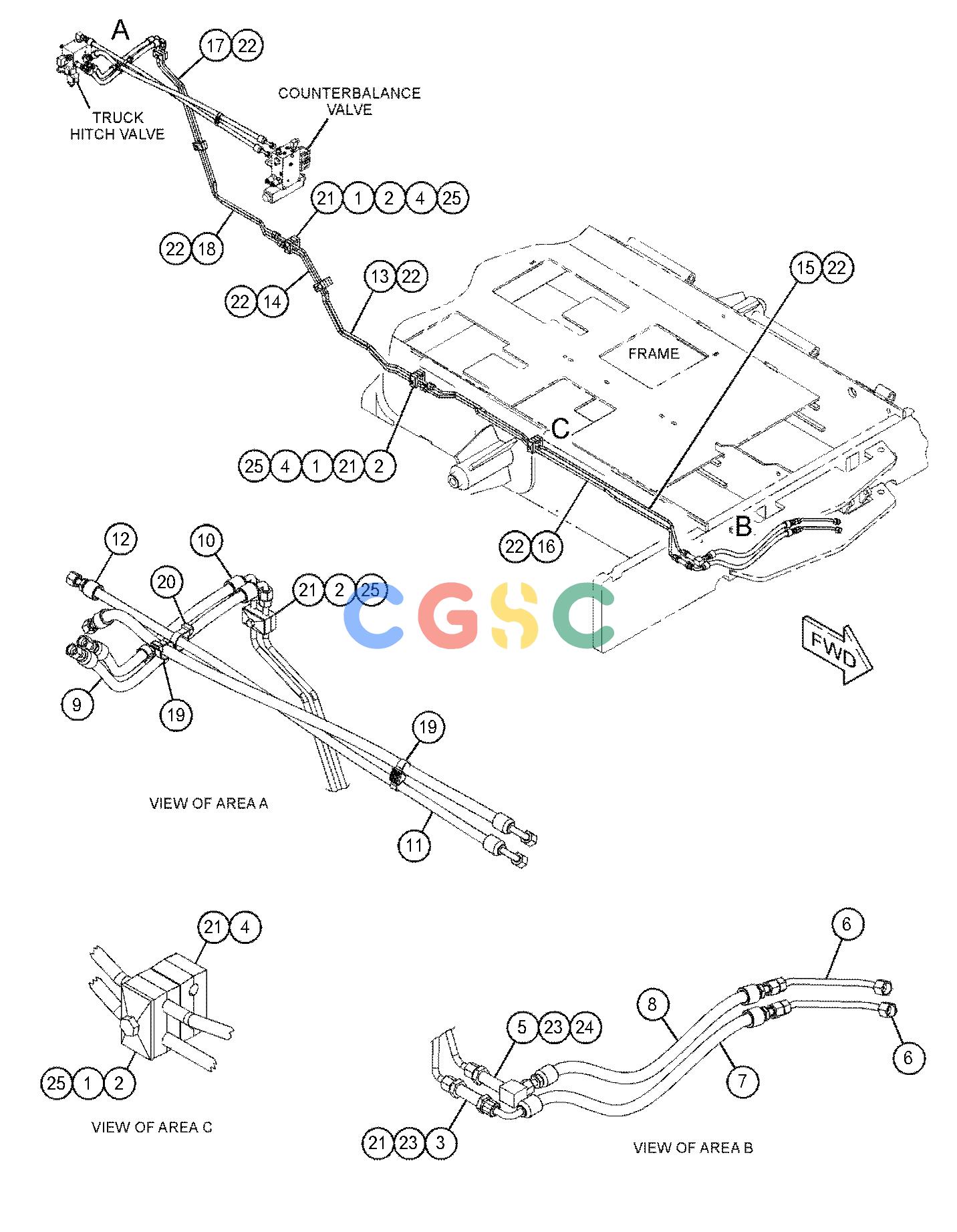

卡特零件查询（AP655F） 433-6609: LINES GP-HITCH
广数供应链运营团队, 17 02月, 2025，浏览：
169 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 154-4890M | [4] | BOLT-STACKING(M8X1.25X33-MM) | |
| 2. | 102-8703 | [6] | PLATE-COVER | |
| 3. | 105-7167 | [1] | FITTING AS | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 8T-5890 | [1] | UNION | |
| 4. | 206-0452 | [4] | PLATE | |
| 5. | | [1] | ELBOW AS |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2195 | [1] | ELBOW | |
| 6. | 345-8509 | [2] | TUBE AS | |
| 7. | 363-8364I | [1] | HOSE AS | |
| 8. | 363-8365I | [1] | HOSE AS | |
| 9. | 363-8366I | [1] | HOSE AS | |
| 10. | 363-8367I | [1] | HOSE AS | |
| 11. | 423-4883I | [1] | HOSE AS | |
| 12. | 423-4884I | [1] | HOSE AS | |
| 13. | 460-9679 | [1] | TUBE AS | |
| 14. | 460-9680 | [1] | TUBE AS | |
| 15. | 460-9681 | [1] | TUBE AS | |
| 16. | 460-9682 | [1] | TUBE AS | |
| 17. | 460-9683 | [1] | TUBE AS | |
| 18. | 460-9684 | [1] | TUBE AS | |
| 19. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 20. | 204-2281 | [2] | STRAP-CABLE | |
| 21. | 206-6409 | [20] | CLAMP-HALF | |
| 22. | 6V-8397 | [6] | SEAL-O-RING | |
| 23. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 24. | 6V-9829 | [2] | CAP(ORFS) | |
| 25. | 7X-2537M | [6] | BOLT(M8X1.25X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
