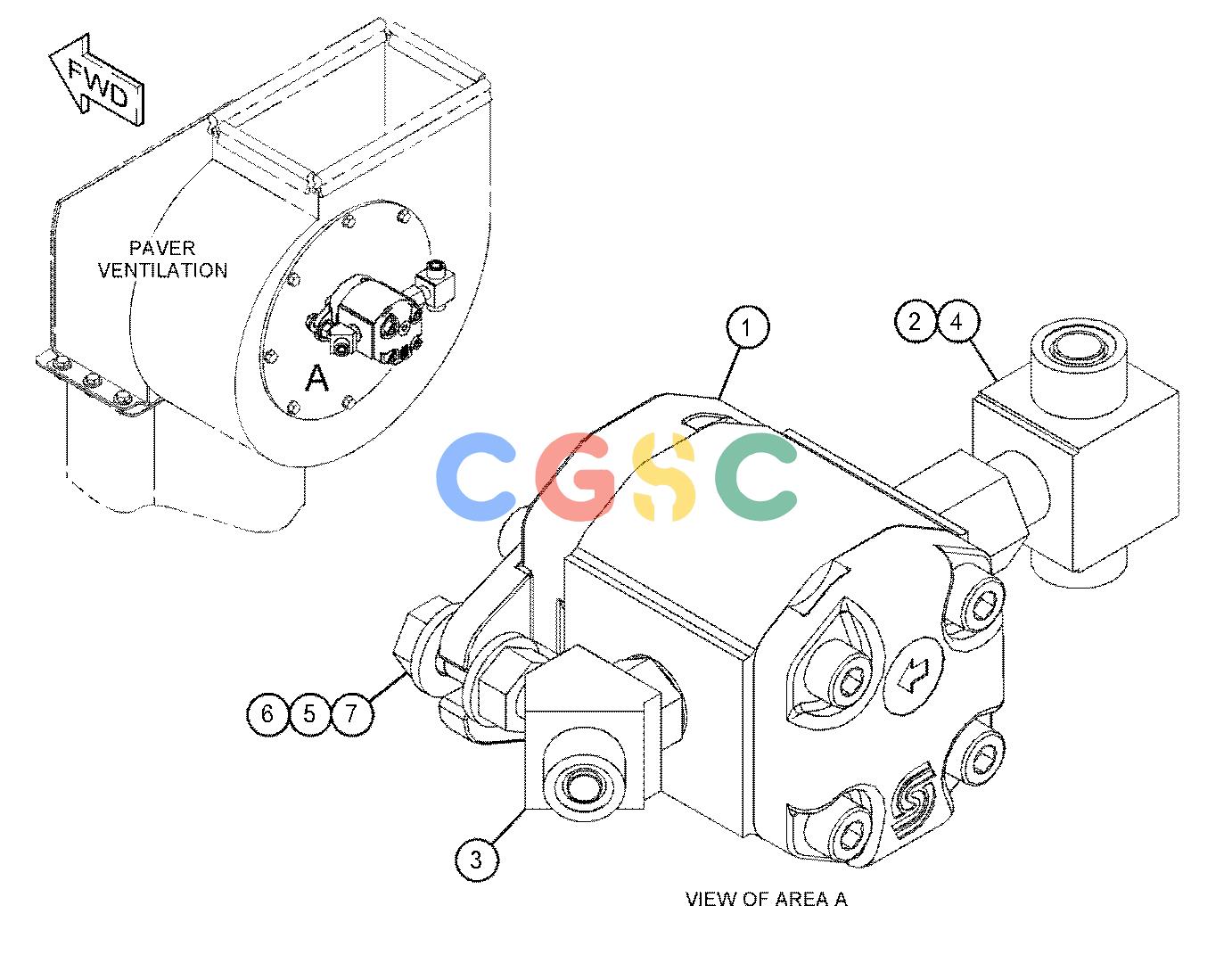

卡特零件查询（AP655F） 433-6612: MOTOR & MTG GP-VENTILATION
广数供应链运营团队, 17 02月, 2025，浏览：
707 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 383-2607Y | [1] | MOTOR GP-GEAR(PAVER VENTILATION) | |
| 2. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 3. | 148-8353 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 4. | 150-4037 | [1] | TEE AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9844 | [1] | TEE-SWIVEL | |
| 5. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 6. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 7. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
