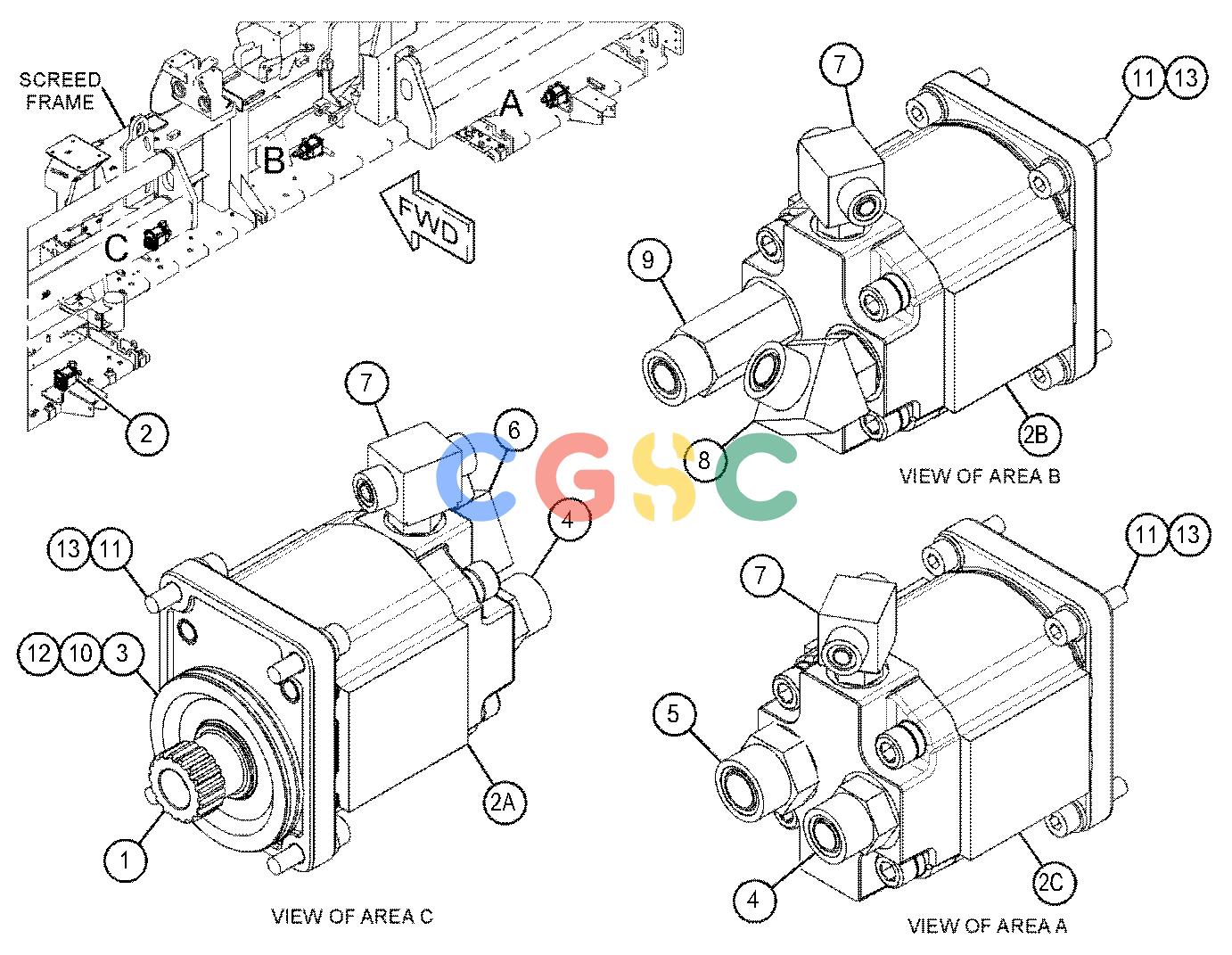

卡特零件查询（AP655F） 390-4763: MOTOR & MTG GP-VIBRATORY
广数供应链运营团队, 17 02月, 2025，浏览：
246 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 242-2797 | [4] | COUPLING | |
| 2. | 399-0747Y | [1] | MOTOR GP-GEAR(EXTENDER, LH) | |
| 2A. | 399-0747Y | [1] | MOTOR GP-GEAR(MAIN, LH) | |
| 2B. | 399-0747Y | [1] | MOTOR GP-GEAR(MAIN, RH) | |
| 2C. | 399-0747Y | [1] | MOTOR GP-GEAR(EXTENDER, RH) | |
| 3. | 418-9082 | [4] | ADAPTER | |
| 4. | 148-8315 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8642 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 5. | 148-8322 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8640 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 6. | 148-8390 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8626 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 7. | 148-8439 | [4] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8774 | [1] | TEE | |
| 8. | 155-3504 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-9003 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 9. | 197-8940 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 8T-1576 | [1] | CONNECTOR | |
| 10. | 242-2815 | [4] | SEAL-O-RING | |
| 11. | 289-9555M | [16] | BOLT-SOCKET HEAD(M8X1.25X30-MM) | |
| 12. | 5P-8065 | [4] | SEAL-O-RING | |
| 13. | 8T-4224 | [16] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
