卡特零件查询（AP655F） 390-7801: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
343 次

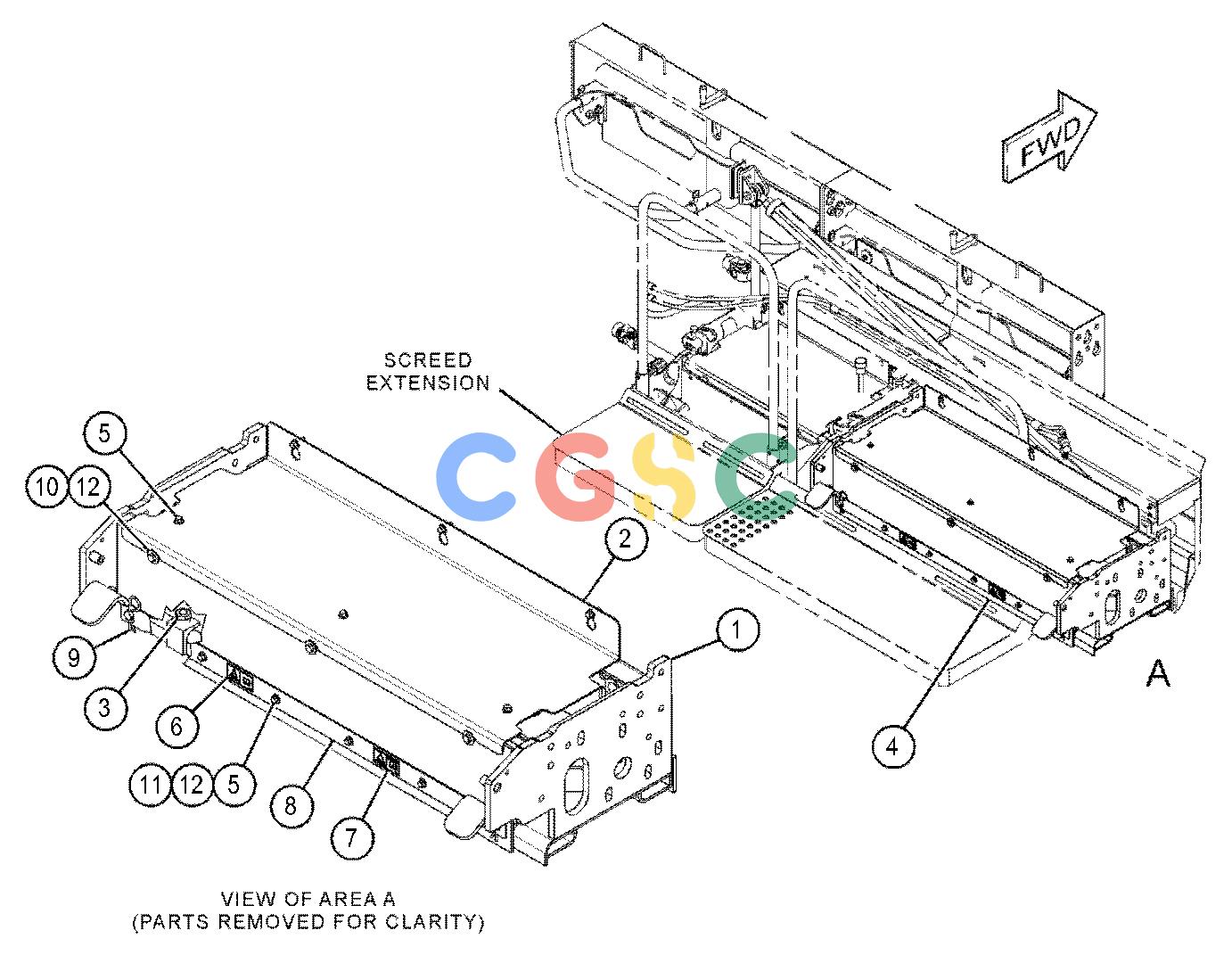

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 393-0658 | [1] | FRAME AS | |
| 2. | 394-7632 | [1] | COVER | |
| 3. | 422-4637M | [5] | NUT(M30X2-THD) | |
| 4. | 453-7978 | [1] | COVER-RUBBER | |
| 5. | 342-9914M | [10] | BOLT-FLANGE HEAD(M10X1.5X25-MM) | |
| 6. | 462-0583 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 7. | 462-0584 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 8. | 462-0449 | [1] | PLATE | |
| 9. | 5P-8837 | [2] | LOCK PIN | |
| 10. | 7X-2621M | [3] | BOLT(M10X1.5X12-MM) | |
| 11. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 12. | 8T-4222 | [7] | WASHER-PLATED(11X32X2.5-MM THK) | |
| | M | | METRIC PART |
