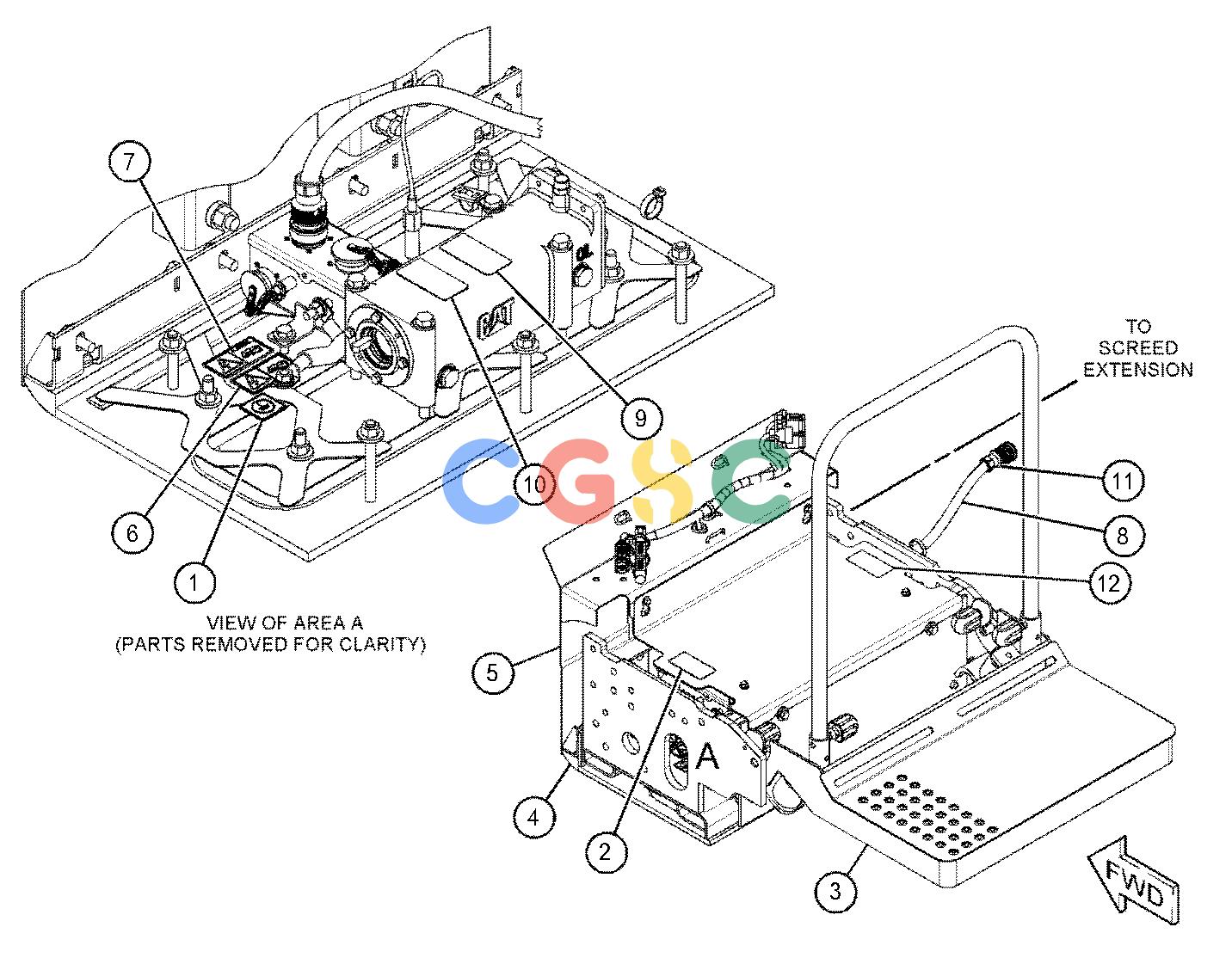

卡特零件查询（AP655F） 416-9949: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
325 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 228-4798 | [1] | FILM-IDENTIFICATION(GROUND) | |
| 2. | 242-5054 | [1] | FILM-WARNING(NO STEP) | |
| 3. | 390-7790Y | [1] | EXTENSION GP-SCREED | |
| 4. | 390-7797 | [1] | BAR GP-TAMPER | |
| | 8T-4192M | [3] | BOLT(M12X1.75X25-MM) | |
| | 8T-7971 | [3] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| | 451-2925 | [1] | BAR-NOSE | |
| 5. | 394-9038Y | [1] | DEFLECTOR GP | |
| 6. | 424-6098 | [1] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| 7. | 424-6102 | [1] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| 8. | 438-1048Y | [1] | WIRING GP-SCREED | |
| 9. | 443-3510 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 10. | 443-3511 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 11. | 5P-6025D | | LOCKWIRE(0.1-M) | |
| 12. | 242-5055 | [1] | FILM-WARNING(NO STEP) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
