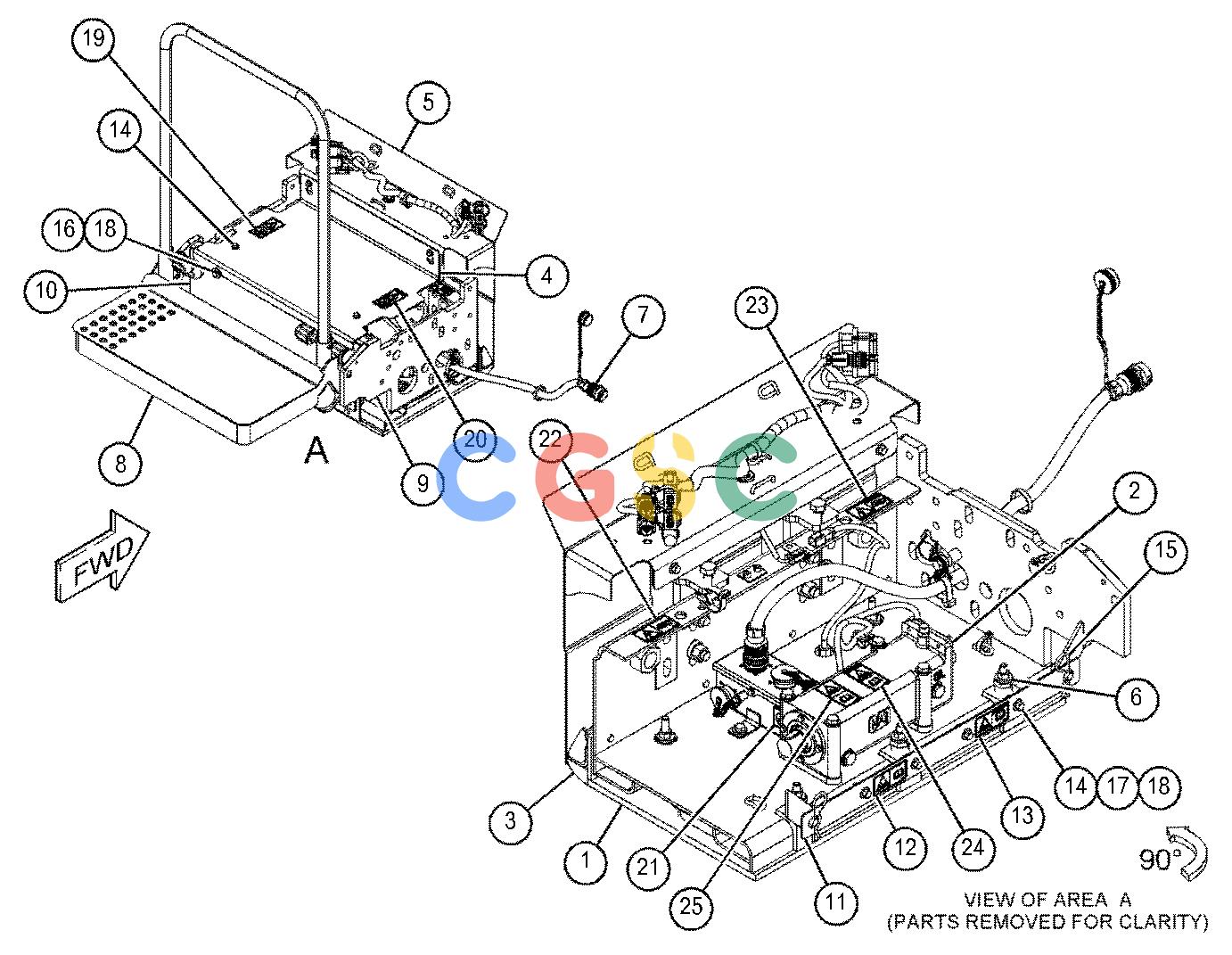

卡特零件查询（AP655F） 449-4663: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
571 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 390-7792Y | [1] | PLATE GP-SCREED | |
| 2. | 390-7794Y | [1] | VIBRATORY GP | |
| 3. | 390-7797 | [1] | BAR GP-TAMPER | |
| | 8T-4192M | [3] | BOLT(M12X1.75X25-MM) | |
| | 8T-7971 | [3] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| | 451-2925 | [1] | BAR-NOSE | |
| 4. | 394-7631 | [1] | COVER | |
| 5. | 394-9038Y | [1] | DEFLECTOR GP | |
| 6. | 422-4637M | [3] | NUT(M30X2-THD) | |
| 7. | 438-1048Y | [1] | WIRING GP-SCREED | |
| 8. | 449-4664Y | [1] | PLATFORM GP-OPERATOR | |
| 9. | 453-1645 | [1] | FRAME AS | |
| 10. | 453-7977 | [1] | COVER-RUBBER | |
| 11. | 462-0448 | [1] | PLATE | |
| 12. | 462-0583 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 13. | 462-0584 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 14. | 342-9914M | [8] | BOLT-FLANGE HEAD(M10X1.5X25-MM) | |
| 15. | 5P-8837 | [2] | LOCK PIN | |
| 16. | 7X-2621M | [2] | BOLT(M10X1.5X12-MM) | |
| 17. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 18. | 8T-4222 | [6] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 19. | 242-5054 | [1] | FILM-WARNING(NO STEP) | |
| 20. | 242-5055 | [1] | FILM-WARNING(NO STEP) | |
| 21. | 228-4798 | [1] | FILM-IDENTIFICATION(GROUND) | |
| 22. | 424-6098 | [1] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| 23. | 424-6102 | [1] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| 24. | 443-3510 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| 25. | 443-3511 | [1] | FILM-WARNING(ENTANGLEMENT HAZARD, STAY BACK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
