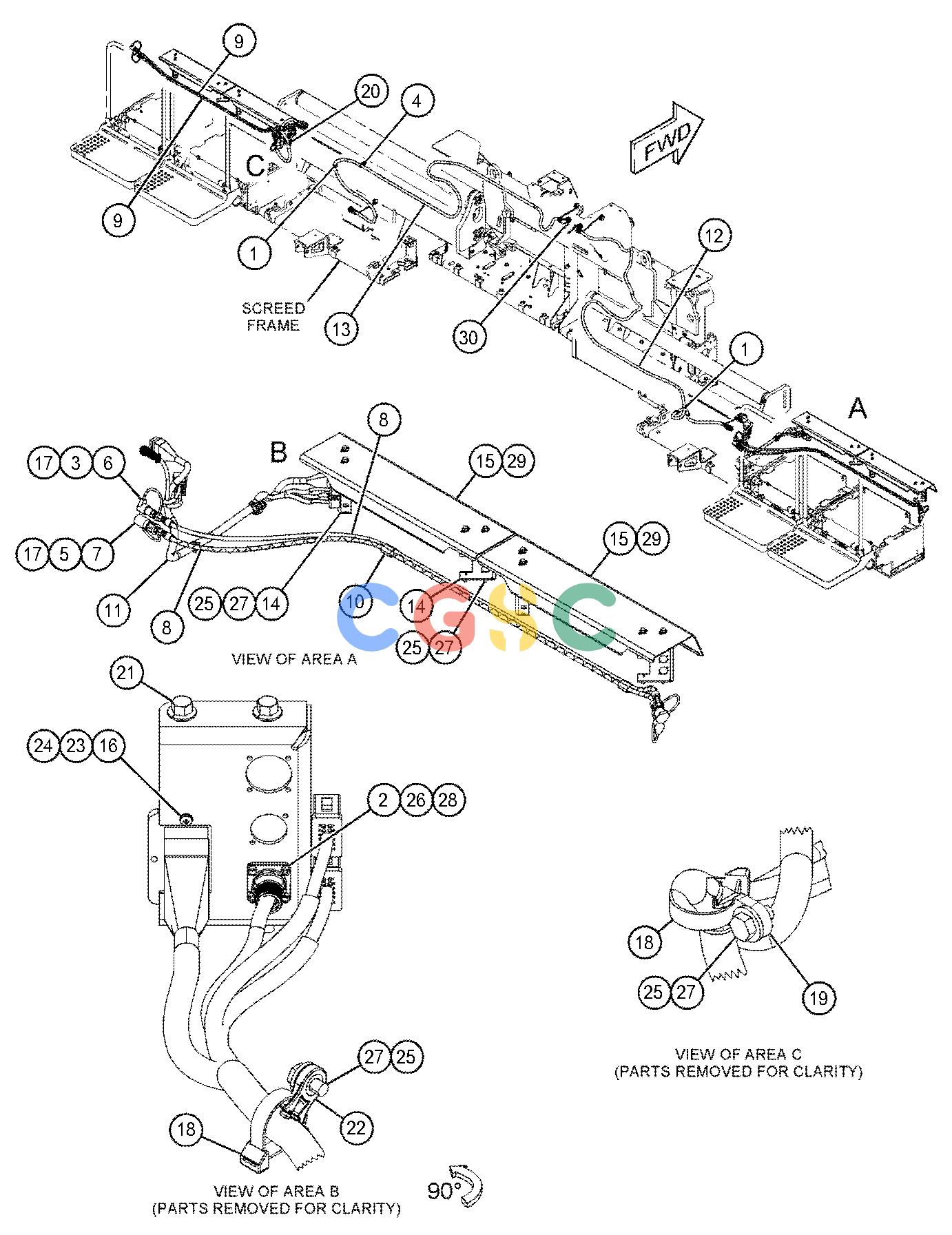

卡特零件查询（AP655F） 459-3098: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
963 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [6] | STRAP-CABLE | |
| 2. | 132-8485 | [2] | NUT-RING | |
| 3. | 152-8181 | [4] | FITTING(QUICK DISCONNECT, MALE) | |
| 4. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 5. | 204-5098 | [4] | FITTING AS(QUICK DISCONNECT, FEMALE) | |
| 6. | 214-1446 | [4] | CAP-DUST | |
| 7. | 214-1447 | [4] | CAP-DUST | |
| 8. | 430-5450I | [2] | HOSE AS | |
| 9. | 430-5452I | [2] | HOSE AS | |
| 10. | 431-0680 | [4] | STRAP | |
| 11. | Y | [2] | HARNESS AS-WIRING(EXTENSION, RH, LH) |
| 12. | 442-6171Y | [1] | HARNESS AS-WIRING(RH)(RH) | |
| 13. | 442-6172Y | [1] | HARNESS AS-WIRING(LH)(LH) | |
| 14. | | [8] | BRACKET AS |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 15. | | [4] | COVER |
| 16. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 17. | 148-8325 | [8] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8641 | [1] | CONNECTOR | |
| 18. | 204-2281 | [2] | STRAP-CABLE | |
| 19. | 204-8000 | [1] | MOUNTING-CABLE TIE | |
| 20. | 327-0325 | [1] | STRAP-CABLE | |
| 21. | 342-9914M | [16] | BOLT-FLANGE HEAD(M10X1.5X25-MM) | |
| 22. | 381-2621 | [1] | MOUNTING-CABLE TIE | |
| 23. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 24. | 6V-9491M | [4] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 25. | 7X-7729 | [18] | WASHER(11X25X3-MM THK) | |
| 26. | 8C-8560 | [4] | SCREW-LOCK(4-40X0.5-IN) | |
| 27. | 8T-4137M | [18] | BOLT(M10X1.5X20-MM) | |
| 28. | 9B-1117 | [4] | LOCKWASHER | |
| 29. | 7X-7877E | | STRIP-EDGE(71-CM EACH) | |
| 30. | 5P-6025D | | LOCKWIRE(0.1-M EACH) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
