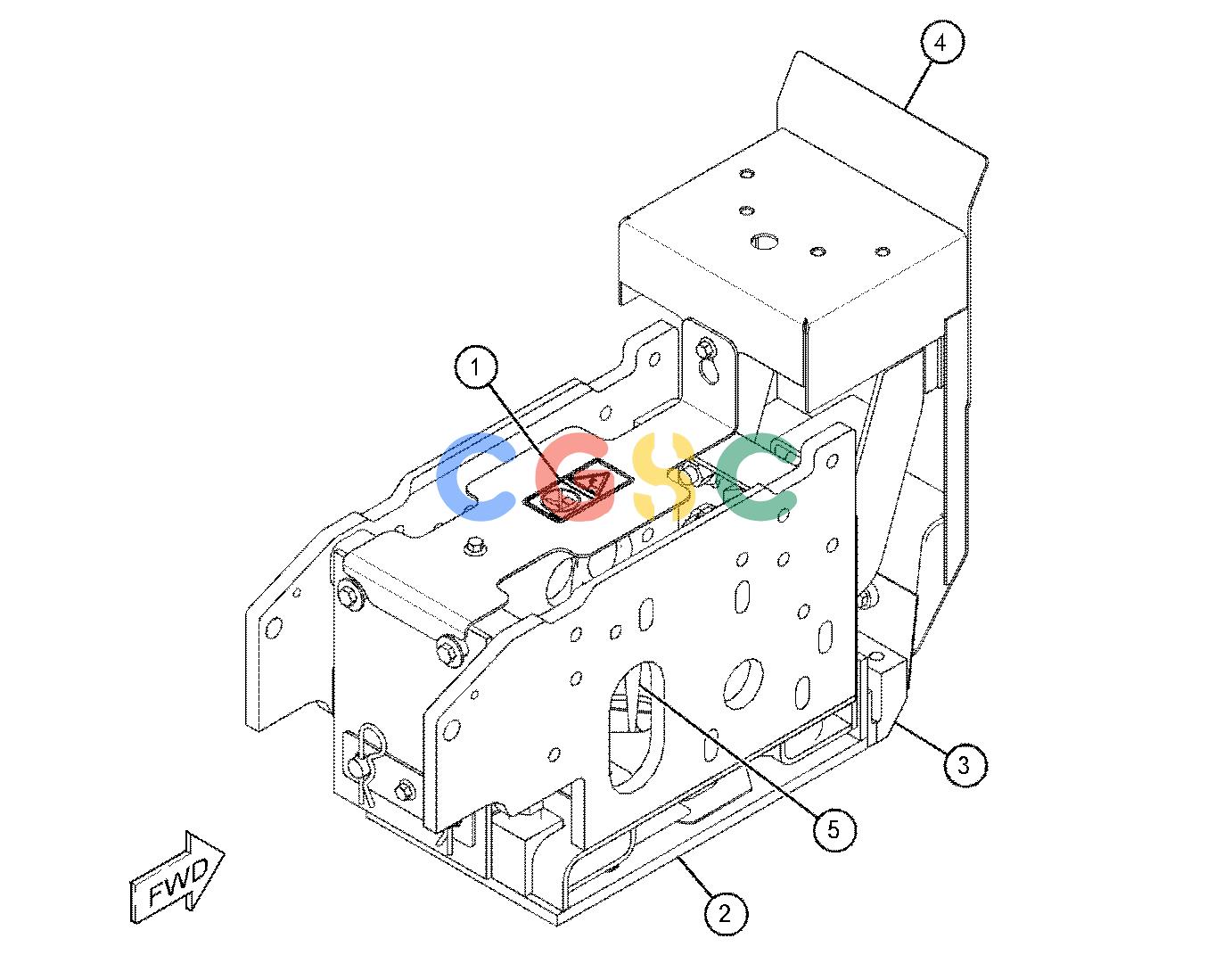

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 242-5054 | [1] | FILM-WARNING(NO STEP) | |
| 2. | 464-2739Y | [1] | EXTENSION GP-SCREED | |
| 3. | 464-2742 | [1] | BAR GP-TAMPER | |
| 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | ||
| 8T-5089 | [2] | PIN-SPRING | ||
| 464-4869 | [1] | BAR-TAMPER | ||
| 464-4870 | [1] | PLATE-WEAR | ||
| 4. | 464-2746Y | [1] | DEFLECTOR GP | |
| 5. | 464-3708Y | [1] | WIRING GP-SCREED | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
