卡特零件查询（AP655F） 464-2739: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
389 次

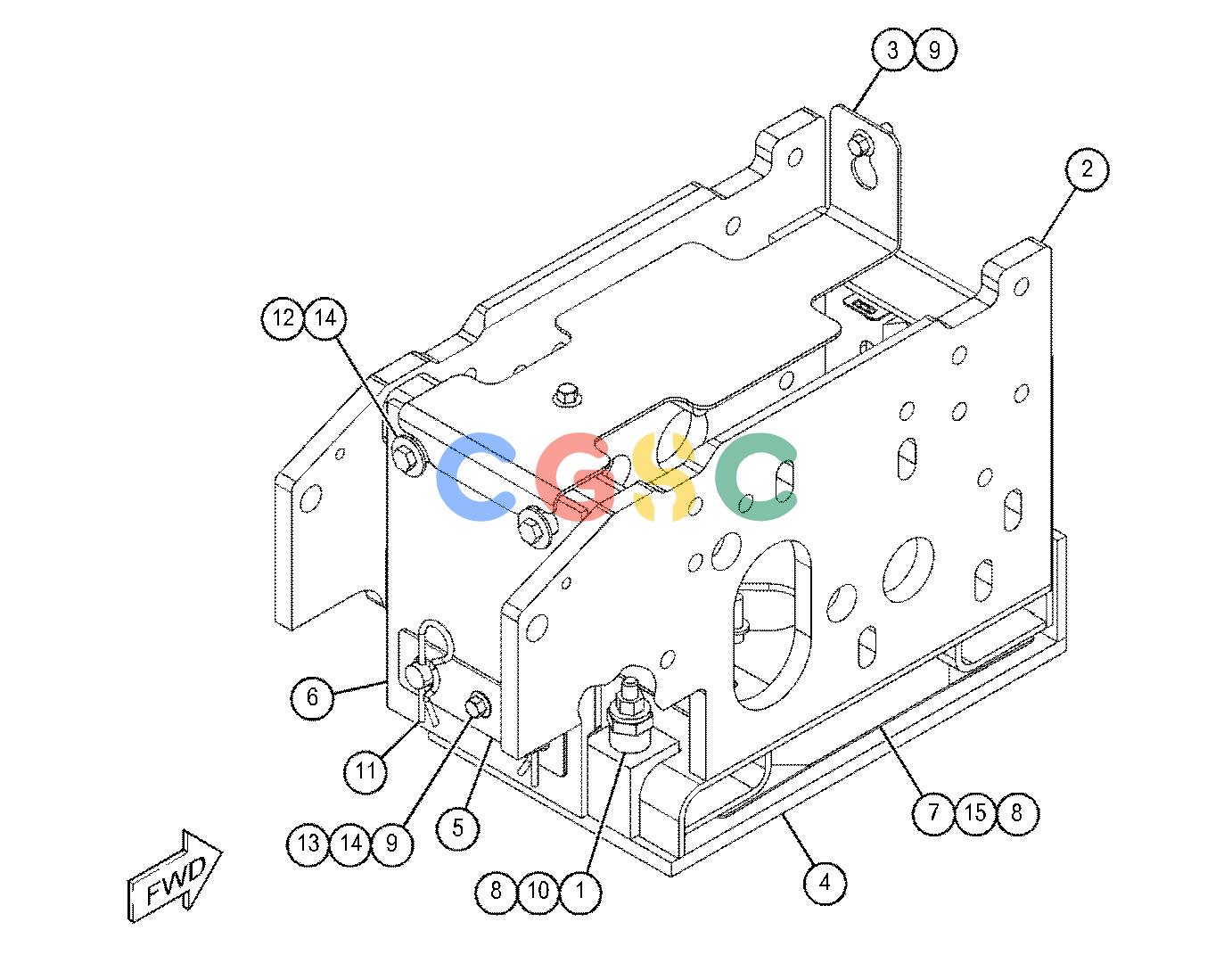

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 422-4637M | [2] | NUT(M30X2-THD) | |
| 2. | 464-2643 | [1] | FRAME AS | |
| 3. | 464-3682 | [1] | COVER | |
| 4. | 464-3685 | [1] | PLATE GP-SCREED | |
| | 419-4908M | [2] | STUD(M12X1.75X135-MM) | |
| | 350-7866M | [2] | STUD(M12X1.75X58-MM) | |
| | 448-9445M | [2] | STUD(M12X1.75X115-MM) | |
| 5. | 465-6881 | [1] | PLATE | |
| 6. | 465-6883 | [1] | COVER-RUBBER | |
| 7. | 556-7807 | [1] | CLAMP | |
| 8. | 329-3356M | [6] | NUT(M12X1.75-THD) | |
| 9. | 342-9914M | [3] | BOLT-FLANGE HEAD(M10X1.5X25-MM) | |
| 10. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 11. | 5P-8837 | [2] | LOCK PIN | |
| 12. | 7X-2621M | [2] | BOLT(M10X1.5X12-MM) | |
| 13. | 8T-0389M | [1] | LOCKNUT(M10X1.5-THD) | |
| 14. | 8T-4222 | [3] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 15. | 7D-1649 | [4] | WASHER-HARD(13.5X32X5-MM THK) | |
| | M | | METRIC PART |
