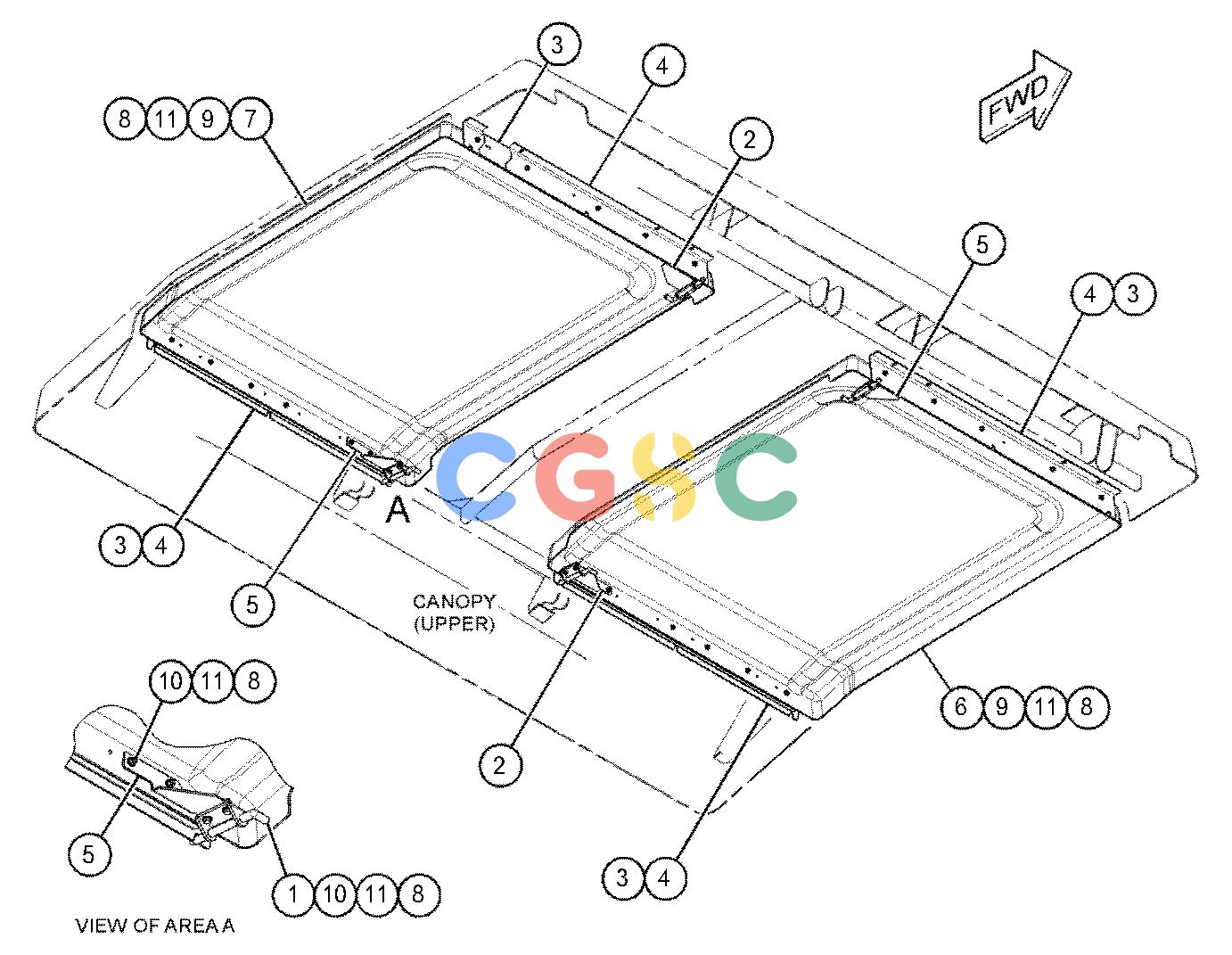

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 125-3674 | [4] | LATCH-SPRING | |
| 2. | 358-2487 | [2] | BRACKET | |
| 3. | 360-3519 | [4] | SLIDE | |
| 4. | 360-3520 | [4] | PLATE | |
| 5. | 360-3521 | [2] | BRACKET | |
| 6. | 422-4536 | [1] | CANOPY | |
| 7. | 422-4537 | [1] | CANOPY | |
| 8. | 5C-2890M | [52] | NUT(M6X1-THD) | |
| 9. | 8C-3210M | [36] | BOLT(M6X1X16-MM) | |
| 10. | 8T-4181M | [16] | BOLT(M6X1X20-MM) | |
| 11. | 8T-4205 | [60] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| M | METRIC PART | |||
