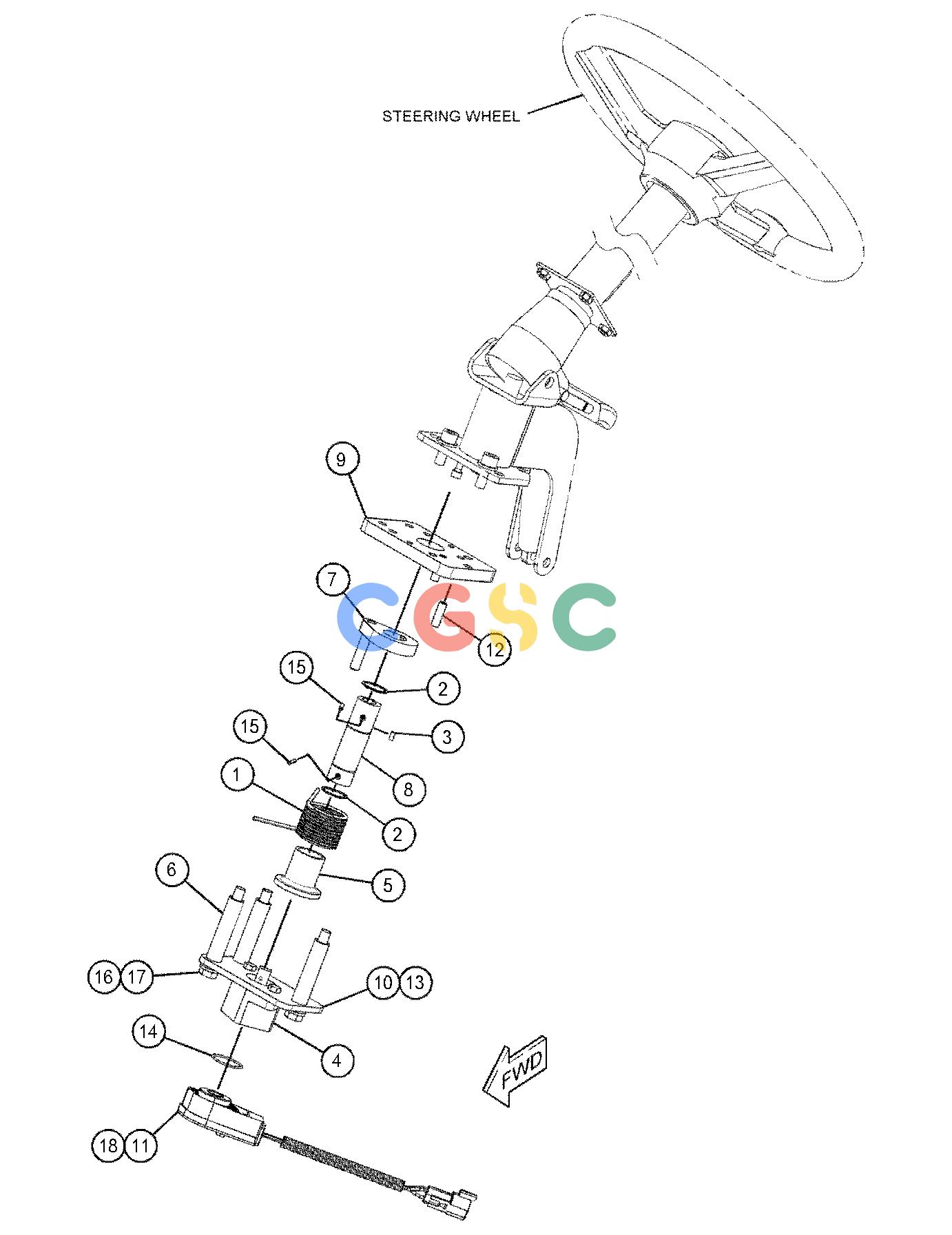

卡特零件查询（AP655F） 418-5152: CONTROL GP-STEERING
广数供应链运营团队, 17 02月, 2025，浏览：
908 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-5382 | [1] | SPRING | |
| 2. | 081-7511 | [2] | RING | |
| 3. | 096-2633 | [1] | KEY-SQUARE(STEERING) | |
| 4. | 169-8332 | [1] | BLOCK AS-MOUNTING | |
| 5. | 250-3949 | [1] | SPACER | |
| 6. | 308-6352 | [3] | TUBE | |
| 7. | 308-6353 | [1] | ARM AS | |
| 8. | 346-6621 | [1] | SHAFT-STEERING | |
| 9. | 347-1971 | [1] | PLATE | |
| 10. | 349-3567 | [1] | PLATE | |
| 11. | 373-4327 | [1] | SENSOR GP-POSITION(STEERING) | |
| 12. | 1T-0550 | [2] | PIN-SPRING | |
| 13. | 4M-5281 | [2] | BOLT(1/4-20X0.75-IN) | |
| 14. | 6V-0894 | [1] | SEAL-O-RING | |
| 15. | 8T-0277 | [2] | PIN-SPRING | |
| 16. | 8T-4121B | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4178M | [3] | BOLT(M10X1.5X90-MM) | |
| 18. | 112-8728 | [2] | SCREW(10-32X1.25-IN) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
