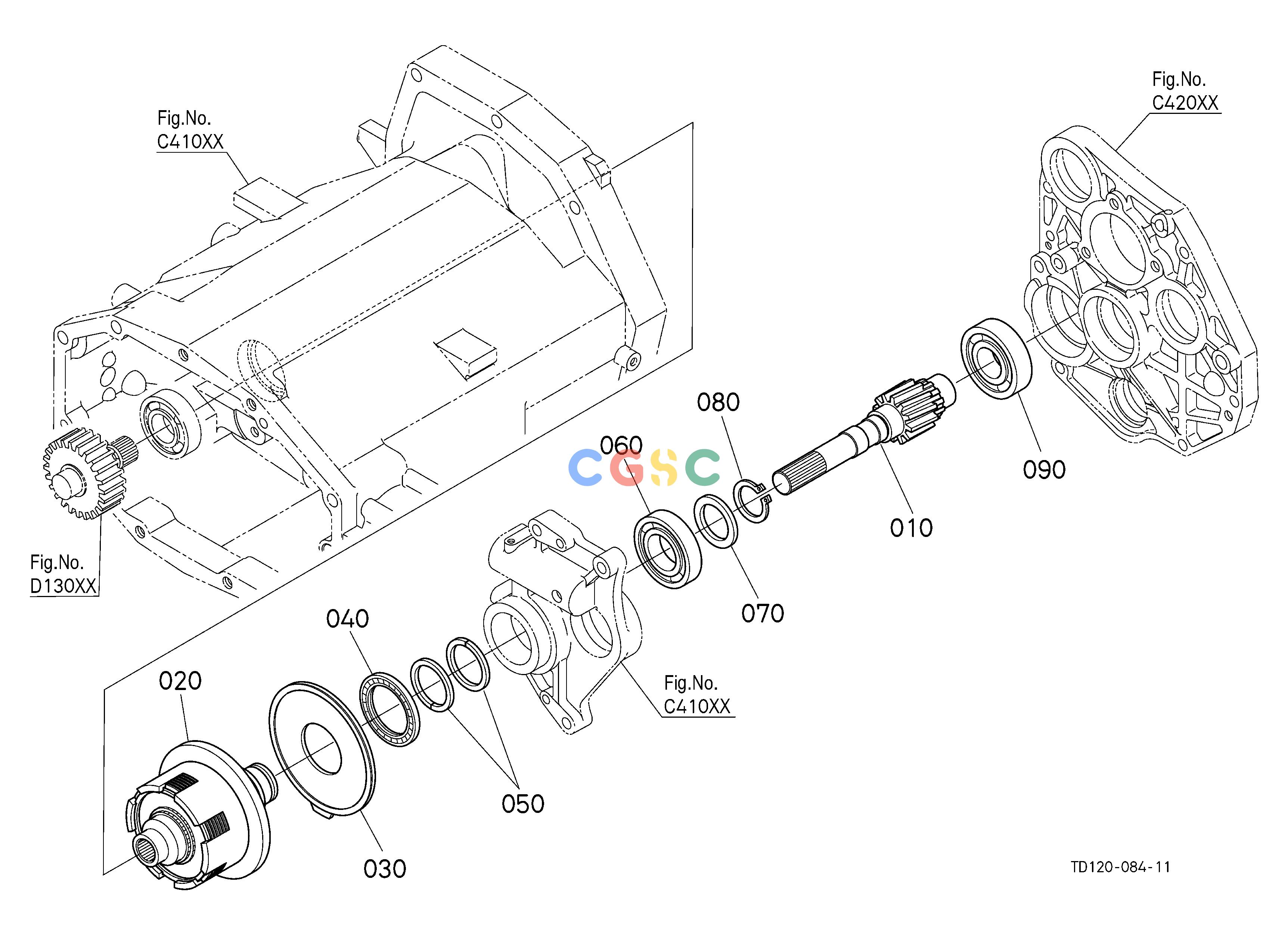

久保田零件查询D13203 PTO CLUTCH [HST TYPE] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
982 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD05053500
|
[1] |
GEAR-SHAFT,I-PTO
|
2.6180(lbs); 1.190
|
| 020. |
TD16069000
|
[1] |
ASSY CLUTCH,I-PTO
|
8.2500(lbs); 3.750
|
| 030. |
TD17069150
|
[1] |
DISK,BRAKE
|
0.7920(lbs); 0.360
|
| 040. |
TA04069160
|
[1] |
BEARING,NEEDLE
|
0.0638(lbs); 0.029
|
| 050. |
3150172403
|
[2] |
RING,SEAL
|
0.0110(lbs); 0.005
|
| 050. |
T185361510
|
[2] |
SEAL,RING
|
0.0022(lbs); 0.001
|
| 060. |
0810106207
|
[1] |
BEARING,BALL
|
0.6160(lbs); 0.280
|
| 060. |
T205023460
|
[1] |
BEARING,BALL
|
0.6160(lbs); 0.280
|
| 070. |
6933124330
|
[1] |
COLLAR,DISTANCE
|
0.0264(lbs); 0.012
|
| 080. |
3674041150
|
[1] |
CIR CLIP,EXTERNAL
|
0.0220(lbs); 0.010
|
| 090. |
3654041130
|
[1] |
BEARING,BALL
|
0.7480(lbs); 0.340
|
